Product Introduction & Engineering Value

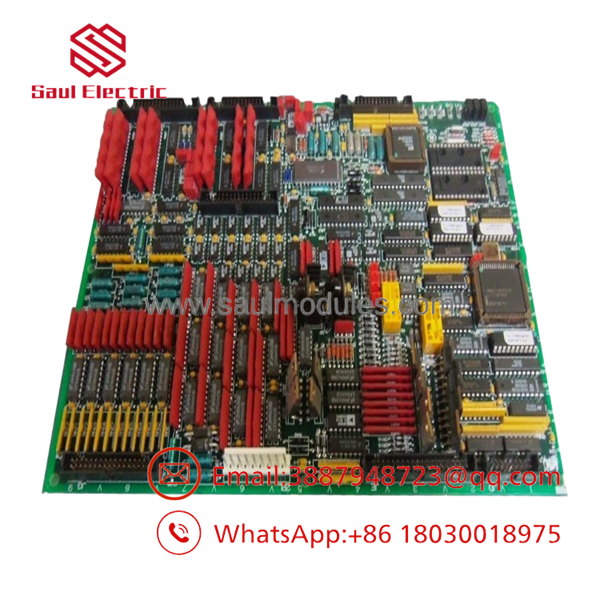

The GE DS200TCQAG1BHF is a TCQA board from the DS200 Mark V family. TCQA hardware is associated with analog signal acquisition and control interfaces, so its condition can directly affect how the control system sees process variables and related feedback.
The important replacement issue is configuration. Do not select a substitute merely because it carries the same TCQA designation. Verify the complete part number, revision, installed hardware, terminal wiring, and application-specific I/O configuration before putting the replacement into service.
Technical Specifications
Manufacturer: General Electric (GE)
Control Platform: Mark V
Product Family: DS200
Board Designation: TCQA
Part Number: DS200TCQAG1BHF
Board Type: Analog I/O / interface board
Primary Function: Analog signal interface and control-system processing
Hardware Revision: G1BHF
Typical Installation: GE Mark V control cabinet
Application: Turbine control and associated industrial automation systems
Signal Type: Analog field-interface functions; exact channel characteristics depend on system configuration
Replacement Method: Match the complete board identification and verify system drawings before installation
Technical caution: Publicly available references do not provide enough authoritative information to safely assign every channel, input/output range, terminal number, or electrical rating to this exact G1BHF configuration. For commissioning work, use the original GE system drawings and board documentation.
Field Application & the “Trench” Experience
A turbine maintenance team is troubleshooting unstable process feedback during a scheduled outage. The control cabinet contains an aging Mark V installation, and the suspect board is identified as DS200TCQAG1BHF.
The replacement looks straightforward. It isn’t.
Before removing the board, the technician records the terminal wiring and captures the existing configuration. The spare is then checked against the original part number and hardware. After installation, the team verifies the affected analog signals individually before allowing the turbine sequence to resume.
That last step matters. An incorrect analog connection can produce a believable value rather than an obvious fault. A bad signal can therefore survive a casual inspection.
Specific application scenarios
- Gas turbine temperature feedback: Interfacing analog process measurements used by turbine control logic.
- Turbine auxiliary monitoring: Handling analog feedback associated with pumps, valves, pressure systems, or related equipment.
- Mark V control cabinet maintenance: Replacing aging TCQA hardware during scheduled control-system outages.
DS200TCQAG1BHF
Transparency SOP: QA & Testing
For New Surplus inventory, the inspection should follow a controlled sequence:
- Part-number verification — Confirm the complete DS200TCQAG1BHF marking.
- Revision inspection — Record all visible board revision and identification information.
- PCB examination — Check connectors, terminal interfaces, components, solder joints, and edge contacts.
- Configuration comparison — Compare switches, jumpers, and installed hardware with the removed unit.
- Functional evaluation — Where a compatible Mark V test setup exists, verify applicable analog I/O operation.
- ESD protection — Package and store the board in suitable anti-static materials.
For refurbished inventory, request the actual test scope. A continuity check or visual inspection should not be represented as a complete functional test.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Assuming an analog value that looks reasonable is correct
Analog failures are deceptive. A channel can report a plausible value even when the wiring, scaling, or signal path is wrong. Verify the signal against a known reference.
PRO TIP: Capture the original signal values and channel assignments before removing the board whenever the system is still operational enough to permit it.
⚠️ Trap #2 — Ignoring configuration differences
A board with the same base TCQA designation may still have a different revision or configuration. Match the complete DS200TCQAG1BHF identifier.
⚠️ Trap #3 — Skipping loop-level verification
Do not stop after confirming that the board is recognized. Verify the complete measurement path from field device through the terminal/interface circuitry into the control system.
Dynamic FAQ
What is the GE DS200TCQAG1BHF?
The is a GE TCQA-series board associated with the Mark V control platform and analog I/O/interface functions.
Is a Mark V board?
Yes. The DS200TCQA family is associated with GE’s Mark V turbine-control architecture.
Can another TCQA board be used as a replacement?
Not without engineering verification. Compare the complete part number, hardware revision, configuration, terminal assignments, and system requirements.
What information should I send when requesting a replacement?
Provide the full part number, photographs of the original board, revision markings, host equipment information, and any relevant control-system drawings or channel assignments.
How should New Surplus condition be verified?
Ask for photographs of the actual board, readable identification markings, and confirmation that it is unused rather than previously installed or refurbished. For critical applications, request the supplier’s inspection and functional-test records.
What warranty should I expect?
Warranty coverage varies by supplier and stock condition. Before purchase, confirm the warranty period, functional-test coverage, DOA policy, return procedure, and whether the supplier supports troubleshooting if the board fails during commissioning.
