GE DS200TCQBG1B Speedtronic Mark V Extended Analog I/O Board

Description

3. Product Introduction

The GE DS200TCQBG1B serves as the Extended Analog I/O Board (TCQB) within the GE Speedtronic Mark V turbine control system. Mounted in the primary control cores (<R>, <S>, or <T>), the TCQB board expands the controller’s capacity to interface with complex process sensors across gas and steam turbine installations.

The TCQBG1B iteration conditions and digitizes high-density analog field telemetry, including thermocouples, RTDs, shaft vibration inputs, valve position feedback (LVDTs/RVDTs), and standard 4–20 mA transmitter loops. Equipped with onboard analog-to-digital (A/D) conversion stages, signal amplifiers, and configurable hardware jumpers, it converts raw field voltages into scaled digital signals for high-speed execution by the main processor cards (TCQC/STCA).

4. Key Technical Specifications

5. Application Scenarios & The “Trench” Experience

During base-load operation on a combined-cycle power block, an analog feedback channel monitoring fuel control valve position begins showing high signal noise, causing erratic governor hunting. Diagnostic traces point to a degraded A/D converter channel on the primary <R> core TCQB card. During a planned maintenance window, control technicians isolate power to the <R> core, safely unseat ribbon bus connections, and swap out the module for a bench-certified DS200TCQBG1B. After transferring the socketed config PROMs and setting all hardware jumpers to match the original layout, analog calibration is verified within 0.1% tolerance—restoring rock-solid valve control.

• Gas Turbine Fuel & Air Management – LVDT/RVDT Feedback Conditioning – Processes high-precision servo valve position feedback.
• Exhaust & Bearing Monitoring – Thermocouple Signal Amplification – Linearizes multi-point exhaust frame and bearing temperature inputs.
• Process Automation – 4–20 mA Loop Integration – Interfaces pressure, flow, and level transmitters directly to Mark V control loops.

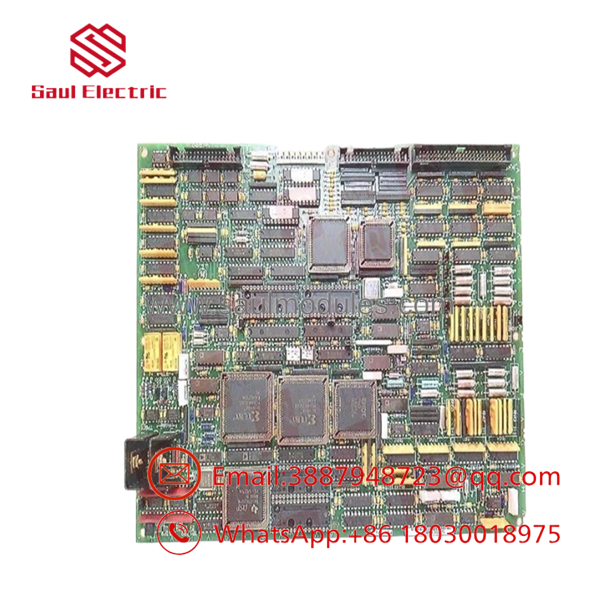

DS200TCQBG1B

6. Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual GE Mark V simulator rigs.

1. Inbound Visual & Substrate Audit: High-magnification inspection checking for IC socket corrosion, trace micro-fractures, bent header pins, and component degradation.
2. Backplane & Bus Interface Cleaning: Micro-cleansing all ribbon cable headers and pin blocks to guarantee low-resistance internal communication.
3. Power Rail Bench Verification: Applying regulated DC bench power to confirm onboard voltage distribution, reference voltages, and A/D converter stability.
4. Analog Loop Simulation: Injecting calibrated 4–20 mA current and mV thermocouple signals across all input channels to confirm linear A/D conversion accuracy.
5. Anti-Static Packaging: Enclosed inside heavy static-shielding ESD bags with fresh desiccant packages prior to shipping in high-density foam crates.

7. The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ TRANSFER YOUR SOCKETED PROMs: The TCQB board features removable socketed memory chips containing board-level revision code and site parameters. Carefully move all socketed ICs from your original board to the replacement DS200TCQBG1B card using an IC extraction tool.
• ❗ MATCH ALL HARDWARE JUMPERS EXACTLY: The board contains numerous shorting jumpers used to configure input voltage ranges, current loop burden resistors, and single-ended vs. differential signals. Verify and match EVERY jumper pin-for-pin against the failed board before powering up.
• ⚠️ POWER DOWN THE SPECIFIC CORE FIRST: Never insert or pull the TCQB card while its hosting control core (<R>, <S>, or <T>) is energized. De-energize the core power supply (TCPS) to avoid logic damage or fault propagation to adjacent cards.
• ❗ ESD GROUNDING IS MANDATORY: High-density A/D converter ICs on the TCQB card are highly susceptible to static destruction. Always wear a grounded wrist strap during maintenance.

8. Frequently Asked Questions (FAQ for Conversion)

Q: What is the main difference between a TCQA and a TCQB board in Mark V systems?

A: The TCQB is an enhanced, higher-density analog expansion card providing additional input channels and improved signal filtering over earlier TCQA revisions.

Q: Does replacing a DS200TCQBG1B require a full system software download?

A: Typically no. If you transfer the original socketed EPROM/EEPROM chips and configure the physical jumpers identically, the Mark V core will recognize the card upon power-up without requiring a software reload.

Q: Can a G1B revision board replace an earlier G1A revision?

A: Yes, later functional artwork revisions like G1B are backward-compatible with earlier G1A modules, provided jumper positions and socketed chips are matched.

Q: How do I troubleshoot an analog input fault isolated to the TCQB card?

A: Check the Mark V diagnostic display (I/O Config screen) for specific channel faults, measure loop voltage at the terminal board test points, and verify that loop power supply fuses are intact.

Q: What warranty is offered with this module?

A: Every unit comes backed by a comprehensive 12-month replacement warranty covering component performance, A/D conversion accuracy, and trace integrity.
