Description
Product Introduction & Engineering Value
The GE DS200TCTGG1AFF is a TCTG-series board used in the GE Mark V control platform for contact/discrete signal interfacing. Its job sits close to the field interface, where wiring condition, contact state, terminal identification, and board configuration all affect the signal presented to the control logic.
For maintenance teams, the safest replacement is an exact match. Do not substitute a visually similar TCTG board until its hardware revision, terminal arrangement, and application are confirmed against the original system documentation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric |
| Part Number | DS200TCTGG1AFF |
| Product Family | DS200 |
| Control Platform | Mark V |
| Board Family | DS200TCTG |
| Board Type | Contact Input / I/O Board |
| Configuration | G1AFF |
| Primary Function | Discrete/contact signal interfacing |
| Technology Generation | GE Mark V |
| PCB Format | Plug-in industrial control PCB |
| Primary Application | GE Mark V control systems |
| Replacement Method | Exact part-number verification |
Technical caution: Exact contact-input count, voltage thresholds, terminal assignments, isolation characteristics, connector pinouts, and channel functions should be verified against the applicable GE Mark V drawings. Those parameters should not be inferred from the TCTG family designation alone.
Field Application & the “Trench” Experience
Contact-input faults are notorious for sending technicians in the wrong direction.
A turbine sequence refuses to advance because a permissive never appears. The operator sees the expected field device change state, but the Mark V logic does not. The technician traces the circuit to the DS200TCTGG1AFF, checks the field contact, wiring, terminal connections, and channel assignment, and only then evaluates the PCB.
The replacement is installed after the complete part number and configuration are verified. The individual contact input is then tested through the actual operating sequence.
The important lesson: “The switch changed state” and “the control system saw the switch change state” are two different statements.
Niche application scenarios
- Turbine permissive circuits: monitoring discrete conditions required before a control sequence can proceed.
- Valve position feedback: receiving open/closed contact signals from field limit switches.
- Trip and alarm interfaces: maintaining discrete field-status monitoring in legacy Mark V cabinets.

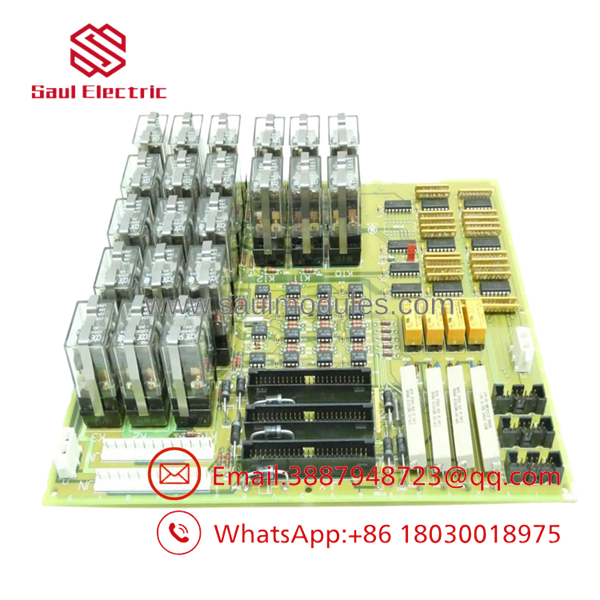

DS200TCTGG1AFF

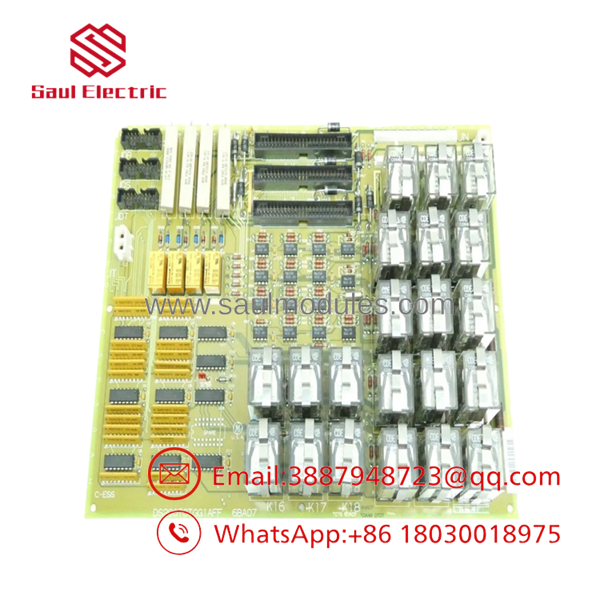

DS200TCTGG1AFF
Transparency SOP: QA & Testing
A sensible QA procedure for the DS200TCTGG1AFF includes:
- Identity verification — Confirm the full
DS200TCTGG1AFFnumber and available revision markings. - PCB inspection — Check components, traces, connectors, solder joints, and mounting points.
- Terminal inspection — Examine connection points for corrosion, looseness, overheating, or mechanical damage.
- Configuration check — Record jumper and switch positions where applicable.
- Electrical screening — Check for shorts, abnormal resistance, and visible component damage.
- Discrete I/O test — Apply controlled input conditions where a suitable test setup is available and verify the expected response.
- System verification — Confirm the affected permissives, alarms, status points, or sequence logic after installation.
- QA documentation — Record test results, board condition, traceability, and warranty.
For New Surplus inventory, obtain a clear statement regarding installation and service history.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Don’t confuse a field-contact problem with a board failure.
Check the switch, wiring, terminal, and signal path before condemning the TCTG.
⚠️ Trap #2 — Verify every terminal before reconnecting field wiring.
A single conductor moved to the wrong channel can create a perfectly believable but incorrect control signal.
PRO TIP: Take high-resolution photographs of the original board and field wiring before removal. Mark terminal numbers in the maintenance documentation.
⚠️ Trap #3 — Test the complete control path.
A board-level continuity check does not prove that the Mark V logic receives the correct contact state. Verify the actual input at the control-system level.
Dynamic FAQ
What is the GE DS200TCTGG1AFF?
The is a GE DS200-series TCTG board associated with contact/discrete input interfacing in Mark V control systems.
What type of signals does it handle?
It is associated with contact/discrete signal interfaces. Exact signal levels and channel assignments should be confirmed from the specific Mark V system drawings.
Can another TCTG board replace the DS200TCTGG1AFF?
Not automatically. Compare the complete part number, revision, terminal arrangement, electrical characteristics, and application requirements.
What should I check before replacing it?
Verify the field device, wiring continuity, terminal assignment, board revision, configuration hardware, and cabinet documentation. This helps distinguish a PCB fault from a field-circuit fault.
How do I verify New Surplus authenticity?
Request photographs of the actual and its identification markings. Ask whether it has been installed, repaired, modified, or electrically tested.
What warranty information should I request?
Confirm warranty duration, DOA coverage, return conditions, and test documentation. The supplier should clearly state whether the unit is New Surplus, Refurbished, or Used.
