Product Introduction & Engineering Value
Faulty backplanes are an engineer’s worst nightmare because bus noise and cross-talk show up as phantom errors across completely unrelated I/O cards. The GE DS200VPBLG1A VME backplane board solves this by maintaining strict dielectric separation between analog signal routing and high-speed digital power planes.
Designed to drop into the J2 and J3 sections of 13-slot drive racks, it provides multi-pin card cage interconnectivity for DSPC control modules, I/O extension cards, and up to three FCGD gate driver boards. Onboard bypass capacitors across every card position suppress power rail ripple, ensuring clean signal integrity under high-current switching conditions.
Technical Specifications
| Parameter | Specification |
| Card Slot Interconnects | Supports DSPC (Slot J1), I/O Extenders (Slot J3), FCGD Boards (Slots J5, J7, J9) |
| Bus Sections Supported | VME J2 and J3 sections (J1 passed via commercial chassis bus) |
| Ground & Plane Isolation | Multilayer FR-4 construction with isolated digital and analog power planes |
| Signal Diagnostic Access | 60 spring-loop test points for real-time AC/DC signal monitoring |
| Interface Connections | 26-pin discrete diagnostic header + 34-pin ribbon connector |
| External I/O Routing | Rear J3 connections for CT burden resistors, tachometer feedback, and NATO scaling cards |
| Tachometer Interface | 12-pin terminal block + configurable signal routing jumpers |
| Decoupling Protection | Surface-mount ceramic bypass capacitors at every slot power tab |
Field Application & The “Trench” Experience
The Trench Story: A combined-cycle plant experienced intermittent “Gate Driver Faults” on two separate SCR bridges during peak acceleration ramps. Swapping the FCGD gate driver boards didn’t fix the issue. Signal tracing across the backplane revealed a cracked internal ground trace on the original VPBL board—likely caused by years of frame vibration and thermal expansion. Installing a tested DS200VPBLG1A backplane restored ground continuity across the J5–J9 slots and eliminated the phantom gate trips instantly.
Niche Application Scenarios
- LCI Static Starter Card Cages: Forms the central signal bus connecting drive controllers to SCR firing circuits in turbine starters.
- Large Synchronous Motor Drives: Routes high-speed tachometer feedback and CT burden resistor signals directly to processing cards.
- Innovation Series VFD Racks: Provides robust physical and electrical interconnects for multi-card drive processing systems.

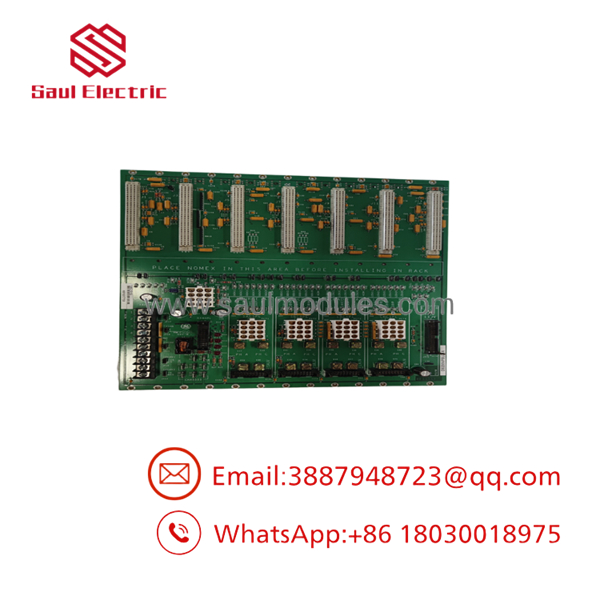

- DS200VPBLG1A

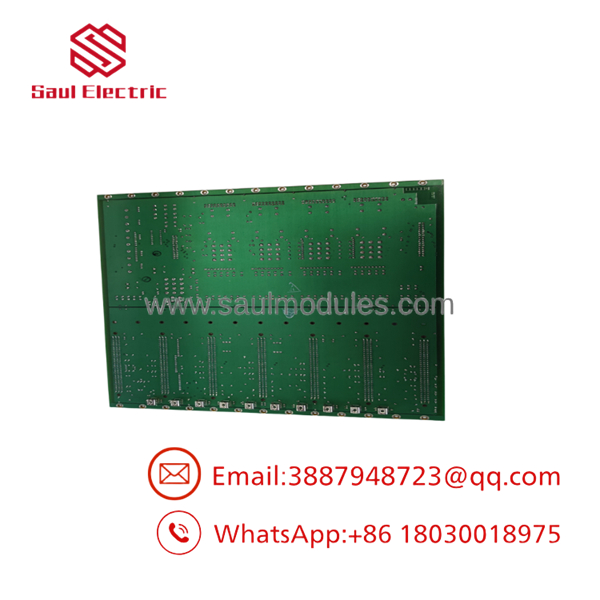

- DS200VPBLG1A
Transparency SOP: QA & Testing
- Multi-Pin Bus Continuity Testing: High-density automated bed-of-nails continuity checks across every pin in the J2 and J3 connectors to verify zero trace cracks or high-resistance solder joints.
- Short Circuit & Ground Plane Audit: Isolation resistance testing between independent analog ground, digital ground, and high-voltage bus planes.
- Decoupling Capacitor Testing: In-circuit ESR and capacitance checks on all local bypass capacitors at slot entry points.
- Spring-Loop Test Point Verification: Physical and electrical testing of all 60 spring-loop test points to guarantee uncompromised oscilloscope diagnostic readings.
- Cleanroom Handling & Anti-Static Packing: Board surface cleaning followed by vacuum sealing in static-shielding bags with fresh desiccant.
The Veteran’s Tech Trap Guide
- ⚠️ Do Not Force Cards Into Misaligned Slots: Backplane pin bending is the most common cause of fatal card-cage failures. Always verify card guide rail alignment before pushing cards home. If a card offers resistance, stop immediately—forcing it will bend male header pins on the DS200VPBLG1A, shorting out adjacent data lines.
- PRO TIP: Check Tachometer Jumper Positioning: The DS200VPBLG1A handles pulse tachometer signal routing through a dedicated bank of onboard jumpers. If you are replacing a backplane, map the physical jumper blocks on your old board before removing it—setting these wrong will result in zero-speed feedback faults during drive startup.
- ⚠️ Ribbon Cable Pull Tabs Required: When disconnecting ribbon headers from the J3 area, never pull on the flat gray ribbon wire itself. Doing so breaks tiny inner conductor strands near the connector. Always use the built-in connector pull tabs or gently lever the connector body loose.
Dynamic FAQ
Q: Is the a standalone processor board?
A: No. The is a passive VME backplane board that provides the structural mounting slots, power distribution planes, and inter-card bus traces for active processor and I/O modules.
Q: Can this backplane board be installed while the drive chassis is powered?
A: Absolute non-starter. You must completely isolate power to the cabinet, wait for DC bus discharge, and disconnect all external J3 system connections before unmounting the backplane board.
Q: What are the 60 spring-loop test points on the front of the board used for?
A: They allow field engineers to hook scope probes directly onto internal digital and analog control lines (including phase current waveforms and DC rail potentials) without interrupting drive operation.
Q: Are replacement units supplied with new chassis mounting screws?
A: Backplanes typically ship as the bare PCBA assembly. You should retain and reuse the existing standoff mounting screws and chassis grounding hardware to ensure proper earth grounding.
Q: What warranty coverage applies to this module?
A: All new surplus and fully reconditioned backplane boards carry a standard 12-month full replacement warranty.
