GE DS200VPBLG2A LS2100 VME Backplane Board

Description

Product Introduction

The GE DS200VPBLG2A is a VME Backplane Board used in the GE LS2100 Load Commutated Inverter (LCI) control system. Rather than performing control logic itself, it serves as the electrical backbone of the control rack by distributing power and providing high-speed communication paths between DSP processors, gate distribution boards, exciter interfaces, and auxiliary I/O modules.

In our field experience, backplane boards receive little attention because they contain very few active components. That’s a mistake. A damaged connector, burned power distribution path, or cracked solder joint on the backplane can create intermittent faults that appear to originate from multiple plug-in cards. Before replacing expensive processor boards, verify the integrity of the VPBL backplane.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Here’s one that can waste an entire shift.

An LCI starter reports communication faults across several boards at once. Maintenance replaces the DSP processor. No improvement. The gate distribution board is swapped next. Still no change. Finally, a continuity check reveals a damaged power distribution path on the VME backplane after years of thermal cycling.

Typical applications include:

• Combined-Cycle Power Plants — LS2100 static starter systems supporting gas turbine startup.
• Utility Generation — VME rack infrastructure connecting DSP, exciter, and gate distribution boards.
• Petrochemical Plants — Large synchronous compressor motor starters using LCI technology.
• Mining Operations — High-power mill motor starting systems requiring dependable VME communication.
• Steel Manufacturing — Heavy synchronous motor drives utilizing GE LS2100 control architecture.

Field Replacement Example

During a planned outage, engineers investigated repeated communication losses affecting several VME cards. Individual boards passed bench testing, but inspection of the DS200VPBLG2A revealed heat damage around the power distribution section. After replacing the backplane, reseating every plug-in module, and verifying rack voltages, the LCI returned to stable operation without replacing additional control boards.

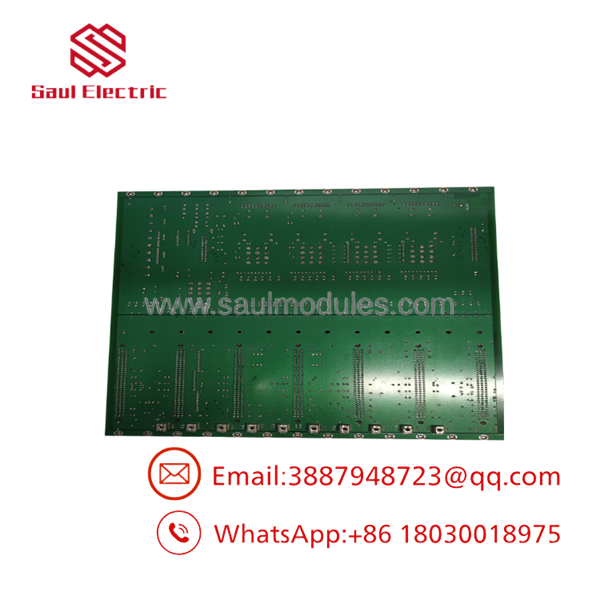

DS200VPBLG2A

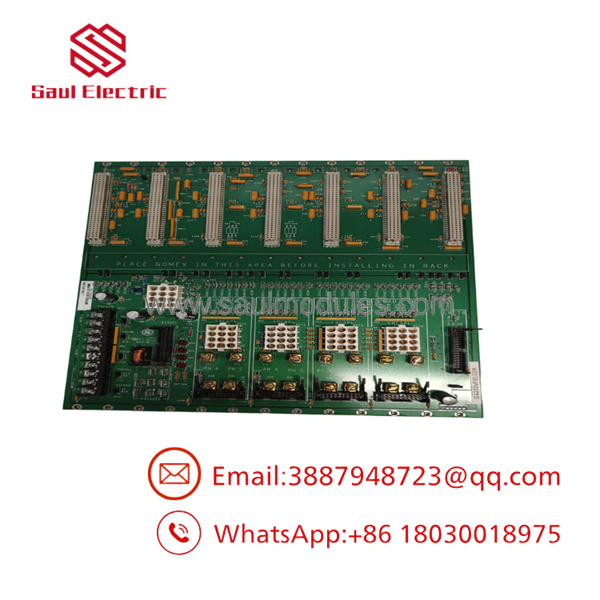

DS200VPBLG2A

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual GE LS2100 racks whenever practical.

• Inbound Inspection
  • Verify complete catalog number and G2 hardware revision.
  • Inspect VME connectors for bent or oxidized contacts.
  • Check ribbon connector, Mate-N-Lock connector, and PCB traces.
• Live Rack Testing
  • Install in a compatible chassis.
  • Verify backplane power distribution.
  • Confirm communication across all VME slots.
• Electrical Parameter Checks
  • Measure continuity of power buses.
  • Verify connector pin integrity.
  • Inspect power distribution (“power bugs”) for damage.
• Hardware Verification
  • Record board revision.
  • Verify connector alignment.
  • Confirm compatibility with customer rack configuration.
• Final QC & Anti-static Packaging
  • Functional inspection.
  • ESD-safe packaging.
  • Shock-resistant shipping protection.
  • Complete serial-number traceability.

The Veteran’s Tech Trap Guide

⚠️ Don’t blame every plug-in board.

When several VME cards report faults simultaneously, inspect the DS200VPBLG2A first. One damaged backplane can make multiple healthy boards appear defective.

❗ Inspect every VME connector carefully.

Repeated maintenance can spread female contacts or bend connector pins. A single poor connection may create intermittent communication failures that disappear as soon as the rack is disturbed.

⚠️ Check the power connector before replacing the backplane.

The 12-pin Mate-N-Lock (JAA) supplies power to the rack. Loose terminals or heat discoloration often indicate the real source of intermittent shutdowns.

❗ Verify slot population after installation.

The VPBL supports multiple processor, gate distribution, exciter, and daughter boards. Reseat every module evenly. One partially engaged VME connector can stop an entire startup sequence.

Frequently Asked Questions (FAQ)

Q1. What is the primary function of the ?

It is the VME backplane for the GE control rack, providing mechanical support, power distribution, and communication paths between plug-in control boards.

Q2. How many VME slots are available?

The board provides eight VME connectors, allowing installation of DSP processors, gate distribution boards, exciter interfaces, and expansion modules.

Q3. What is the purpose of the 34-pin ribbon connector?

The EXJV 34-pin ribbon connector carries interface signals for the external exciter bridge used in the system.

Q4. What are the “power bugs” mentioned in the documentation?

The board contains ten power distribution terminals (“power bugs”) that electrically connect the VPBL backplane to the P1 backplane and distribute power throughout the rack. These should be inspected for heat damage and secure electrical contact during maintenance.

Q5. Can the be repaired?

Minor connector damage or solder defects may be repairable by qualified specialists. However, boards with damaged multilayer power planes or extensive heat damage are generally replaced because long-term reliability becomes difficult to guarantee.

Q6. Why do VME backplanes usually fail?

The most common causes include thermal cycling, vibration, connector wear, oxidation, excessive insertion force during maintenance, and localized overheating around high-current power distribution paths. Active electronic failures are relatively uncommon.

Q7. What warranty is typically provided?

Most industrial automation suppliers provide a 12-month warranty on functionally tested new surplus or professionally refurbished backplane boards. Before commissioning, verify the complete G2 hardware revision, inspect all VME connectors, confirm power distribution continuity, and compare the rack configuration with the original GE documentation to ensure compatibility.
