Description
Product Introduction & Engineering Value
Unstable generator terminal voltage during sudden grid load swings points directly to field excitation regulation failure. The GE DS2020FEXAG4 Field Exciter Board conditions and routes field power gating pulses to drive SCR bridges, locking generator output to exact voltage and power factor setpoints.
By integrating hardware-level scaling via onboard jumpers alongside heavy-duty barrier terminals, this board isolates sensitive digital control processing from high-current field discharge circuits. It provides precise field current modulation across synchronous generator and drive excitation setups under severe thermal cycling.
Technical Specifications
- Functional Classification: Field Exciter Control / SCR Drive Gate Board
- Jumper Configuration: 7 hardware-selectable jumpers (JP1 through JP7) for circuit scaling
- Field Terminal Interface: 2 barrier terminal blocks (3 screw terminals per block)
- Signal Header Connections: Multi-pin male header arrays for ribbon interconnects to main control cores
- Operating Temperature Range: -40°C to +70°C (-40°F to +158°F)
- Storage Temperature Range: -55°C to +85°C (-67°F to +185°F)
- Isolation Rating: Dielectric insulation rated for elevated floating field voltages
- Conformal Coating: Heavy industrial resin coating for humidity and airborne contaminant protection
Field Application & The “Trench” Experience
The Trench Story: A peaking hydroelectric unit failed to synchronize during a black-start routine due to severe voltage hunting on the generator stator. Diagnostic traces pointed to erratic gate drive pulses coming off the exciter board, caused by cracked solder joints on the output terminal barrier block. Swapping in a fresh DS2020FEXAG4 board, setting jumpers JP1–JP7 to match the excitation transformer ratio, and landing the field wires restored crisp SCR firing and stabilized generator terminal voltage in time for grid dispatch.
Niche Application Scenarios
- Synchronous Generator Static Excitation: Controls SCR bridge firing angles to supply DC rotor field current in utility turbines.
- Synchronous Motor Field Flashing: Manages initial field application and field weakening operations on large industrial drives.
- Black-Start Field Regulation: Provides rapid field buildup response during standalone generator startup sequences.

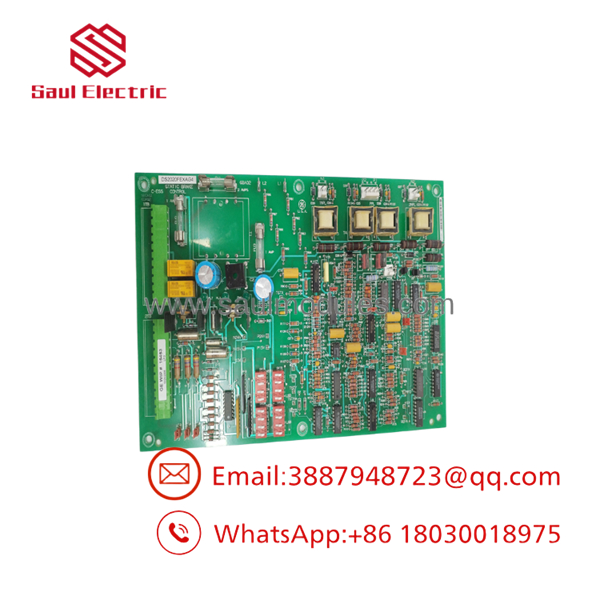

- DS2020FEXAG4

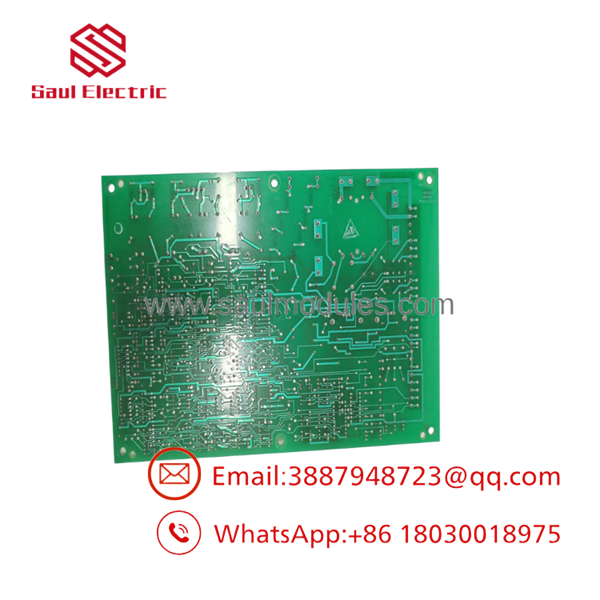

- DS2020FEXAG4
Transparency SOP: QA & Testing
- Terminal & Trace Physical Audit: Microscopic inspection of barrier terminal block screws, pin headers, and trace copper density under thermal imaging.
- Jumper Contact & Continuity Check: Resistance testing across jumper positions JP1 through JP7 to verify low-impedance switching paths.
- Dielectric Isolation Testing: High-potential (Hi-Pot) breakdown verification between field-side barrier terminals and low-voltage ribbon header signal pins.
- Dynamic SCR Gate Pulse Simulation: Bench testing using high-bandwidth oscilloscopes under simulated load conditions to confirm crisp pulse edges without ringing.
- ESD Packaging & Vacuum Seal: Complete board surface cleaning followed by vacuum sealing in anti-static shielding bags with moisture-absorbing desiccant.
The Veteran’s Tech Trap Guide
- ⚠️ High Field Voltage Residual Hazard: Generator field circuits carry high DC energy and significant inductance. Always verify that field discharge resistors have fully bled the rotor circuit and confirm zero DC potential across the barrier terminal blocks before touching terminal screws!
- PRO TIP: Document JP1–JP7 Jumper Settings Before Removal: The DS2020FEXAG4 uses jumpers JP1 through JP7 to set gain, feedback attenuation, and gate signal timing. Never install a replacement board out of the box without matching every single jumper position to your original board layout—incorrect settings can cause instantaneous over-excitation trips or severe field forcing.
- ⚠️ Check Barrier Terminal Screw Torque: Loose connections on the 3-point barrier terminal blocks introduce contact resistance, causing localized heating that can melt terminal housings or drop gate pulse trains mid-operation. Torque all field wiring screws to spec during installation.
Dynamic FAQ
Q: Is the DS2020FEXAG4 compatible with earlier DS2020FEXA revisions?
A: Yes, the G4 revision maintains functional compatibility with earlier FEXA group revisions, provided hardware jumper settings (JP1–JP7) and field wiring terminations are configured identically.
Q: Does this exciter board require onboard software or firmware loading?
A: No. The is a hardware-level exciter driver/interface board. It processes gating and scaling via physical jumpers and hardware traces, requiring no direct software flashing.
Q: What is the primary cause of failure on this specific module?
A: Thermal cycling on the terminal screw connections and electrical stress from inductive field voltage spikes are the primary drivers of field degradation on exciter boards.
Q: How are your surplus units stored to ensure reliability?
A: Units are stored in climate-controlled, ESD-shielded environments with active desiccant management to prevent terminal oxidation and moisture degradation of PCB layers.
Q: What warranty is offered with this board?
A: All units come with a comprehensive 12-month full-replacement warranty covering electronic performance, terminal integrity, and gate firing operation under rated load.
