Product Introduction & Engineering Value
The GE DS3800HDRA1B1B is an HDRA-series circuit board from GE’s legacy DS3800 platform. These boards are typically encountered in long-running industrial installations where maintaining the original control architecture remains more practical than replacing an entire system.
The exact part number matters. A physically similar DS3800 board is not automatically interchangeable. Before approving a replacement, compare the DS3800HDRA1B1B marking, configuration, connectors, board position, and available system documentation with the installed assembly.
Technical Specifications
Manufacturer: General Electric (GE)
Product Family: DS3800
Board Designation: HDRA
Part Number: DS3800HDRA1B1B
Board Type: Industrial printed circuit board
Configuration: 1B1B
Functional Category: Control/interface electronics
System Context: Legacy GE industrial control equipment
Installation: DS3800-compatible rack or control cabinet
Lifecycle: Legacy hardware
Replacement Strategy: Exact part-number matching recommended
Documentation Requirement: Use system-specific GE drawings to establish electrical and interface characteristics
Technical caution: Public information for the exact DS3800HDRA1B1B configuration is limited. Specific voltage ratings, signal assignments, connector pinouts, component functions, and environmental specifications should not be inferred from the part number. Confirm them against the original GE documentation or the installed equipment drawings.
Field Application & the “Trench” Experience
A plant maintenance team is dealing with an intermittent fault on an older GE control system. During the outage inspection, the technician identifies the suspect board as DS3800HDRA1B1B. A spare is available, but the replacement is not installed immediately.
The original board is photographed and its rack position is recorded. The technician checks the configuration markings and connector arrangement, then compares those details with the spare. Once the replacement is installed, the affected control function is tested before the machine is returned to normal operation.
That is the right level of caution for legacy electronics. Old cabinets often contain modifications that never made it into the current maintenance documentation.
Specific application scenarios
- Legacy GE machine-control cabinets: Maintaining DS3800 hardware without an immediate control-platform migration.
- Industrial process equipment: Replacing an HDRA board during scheduled electronic maintenance.
- CNC and dedicated machinery: Maintaining a verified HDRA spare for aging GE control equipment.

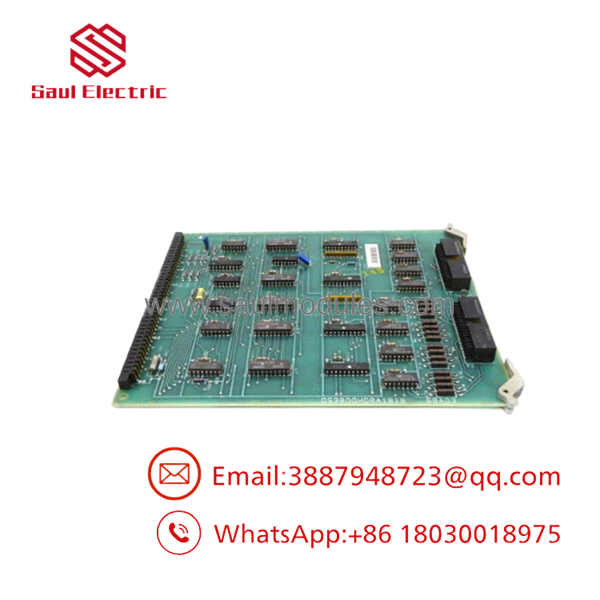

DS3800HDRA1B1B

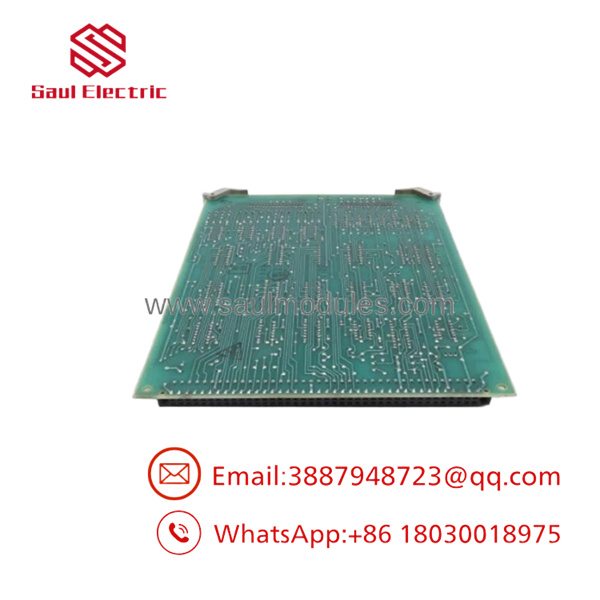

DS3800HDRA1B1B
Transparency SOP: QA & Testing
For New Surplus stock, a practical inspection sequence is:
- Part-number verification — Confirm DS3800HDRA1B1B on the actual board.
- Physical inspection — Check PCB surfaces, connectors, edge contacts, components, and solder joints.
- Configuration review — Record all visible jumpers, switches, daughterboards, and revision markings.
- Condition assessment — Look for corrosion, contamination, cracked components, or signs of previous installation.
- Functional testing — Where a compatible test fixture or host system exists, verify the board against available technical requirements.
- ESD protection — Use anti-static packaging during storage and transportation.
For refurbished inventory, request the repair history and test report. “Refurbished” should identify what was repaired or replaced, not simply describe a cleaned PCB.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Matching only “DS3800 HDRA”
The full identifier is . Do not assume another HDRA configuration is equivalent.
⚠️ Trap #2 — Treating the suffix as optional
The 1B1B configuration should be verified against the original board. A different suffix may indicate a different hardware configuration.
PRO TIP: Photograph the identification markings and configuration hardware before removing the original board. Keep those images with the replacement record.
⚠️ Trap #3 — Assuming physical fit equals compatibility
A board can fit the rack and still be the wrong electrical or functional assembly. Confirm the host system and board documentation before energizing the replacement.
Dynamic FAQ
What is the GE ?
The is a GE HDRA-series printed circuit board belonging to the legacy industrial control hardware family.
What equipment uses this board?
It is intended for compatible legacy GE control equipment. The precise host application should be established from the installed system documentation.
Can another HDRA board replace it?
Not automatically. Verify the complete part number, configuration, revision markings, connectors, and system requirements before substitution.
What information should I provide when requesting a quote?
Provide the exact part number, clear photographs of the original board, all visible markings, host equipment information, and the board’s rack position if known.
How do I verify New Surplus condition?
Ask for photographs of the actual unit and confirmation that it is unused. For critical applications, request inspection and functional-test documentation rather than relying only on a stock-condition label.
What warranty should I ask for?
Confirm warranty duration, functional-test coverage, DOA terms, return conditions, and commissioning support before purchasing. Those terms are especially important for obsolete control hardware.
