Product Introduction & Engineering Value
The GE DS3800HFXB1R1H is part of GE’s legacy DS3800 control-board family. Its full identification includes both the board designation and configuration suffix, which is important when sourcing replacement hardware for older GE equipment.
With obsolete control platforms, the safest procurement method is exact identification rather than visual substitution. Verify the original PCB label, connector arrangement, board configuration, cabinet position, and available equipment documentation before installation.
Technical Specifications
- Manufacturer: General Electric (GE)
- Model: DS3800HFXB1R1H
- Product Family: DS3800
- Board Designation: HFXB
- Product Type: Industrial control / interface PCB
- Configuration: R1H
- System Category: Legacy GE industrial control
- Installation: Compatible GE control-system assembly
- Application: Industrial automation and equipment control
- Replacement Strategy: Exact part-number verification
- Lifecycle: Legacy / secondary-market component
- System Dependency: Host-equipment specific
Engineering caution: Exact electrical specifications for individual DS3800 variants should not be inferred from the family name or from another HFXB board. Connector pinouts, signal types, voltage ratings, I/O functions, and hardware configuration should be confirmed using the applicable GE documentation or the physical unit being replaced.
Field Application & the “Trench” Experience
A maintenance crew supporting an older GE-controlled machine discovers a suspected board failure shortly before a scheduled restart. The spare inventory contains several DS3800 boards, including units with similar physical dimensions.
The technician checks the original PCB and finds the complete DS3800HFXB1R1H identification. Before installation, the replacement is compared for board markings, connector positions, mounting points, and visible configuration details. The team also photographs the original wiring before disconnecting it.
That extra work may seem excessive when a shutdown window is short. It is considerably cheaper than discovering after startup that a visually similar board was installed in the wrong application.
Specific application scenarios:
- Legacy GE machine-control cabinet maintenance during planned plant outages.
- Older industrial equipment refurbishment where the existing DS3800 platform remains in service.
- Critical spare management for obsolete GE control electronics with limited replacement sources.
Transparency SOP: QA & Testing
For DS3800HFXB1R1H inventory, QA should establish the condition of the actual board being shipped.
Receiving checklist:
- Confirm the complete DS3800HFXB1R1H identification.
- Photograph the manufacturer’s label and board markings.
- Inspect PCB surfaces, components, connectors, edge contacts, and solder joints.
- Check for corrosion, contamination, moisture damage, cracked components, and overheating.
- Compare the board’s physical configuration against the customer’s installed unit.
- Perform appropriate functional testing when compatible GE test equipment and procedures are available.
- Record the inspection outcome and material condition.
For New Surplus, clarify whether the board has ever been installed or energized. For Refurbished equipment, ask what repairs, component replacements, and functional tests were performed.

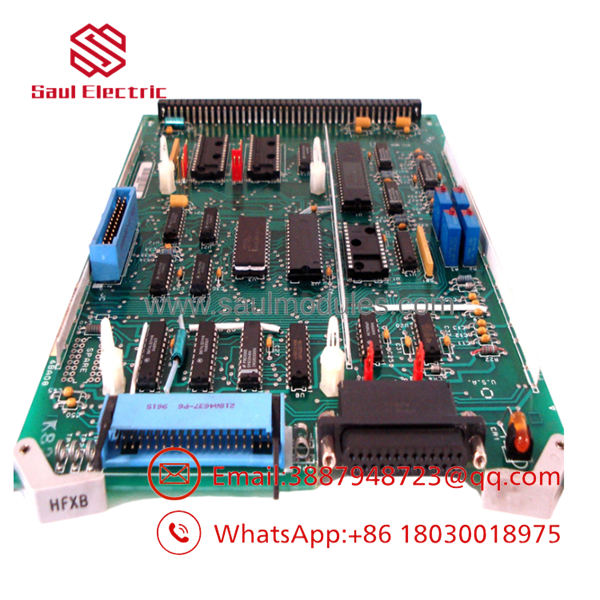

DS3800HFXB1R1H

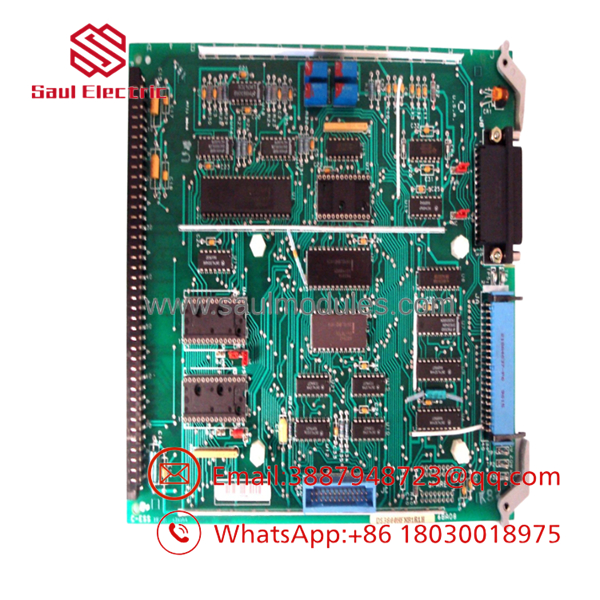

DS3800HFXB1R1H
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Do not buy on “DS3800” alone.
The DS3800 family contains numerous specialized boards. The family number establishes very little about interchangeability.
⚠️ Trap #2 — Preserve the R1H suffix.
The complete DS3800HFXB1R1H identifier should appear on the purchase request. Removing configuration information creates unnecessary replacement risk.
⚠️ Trap #3 — Watch for old field modifications.
The physical cabinet may differ from the original GE drawing after years of maintenance. Photograph the actual installation before removing the board.
PRO TIP: Keep the failed board until the replacement has been fully commissioned. Its connector orientation and component layout can provide useful troubleshooting evidence if the system does not behave as expected.
Dynamic FAQ
Q: What is the GE DS3800HFXB1R1H?
A: It is a legacy GE DS3800-series industrial control PCB, identified by the HFXB board designation and R1H configuration.
Q: What system does this board belong to?
A: It belongs to GE’s DS3800 family of legacy industrial control hardware. The exact host equipment and board-level function should be verified from the installed system documentation.
Q: Can another HFXB board replace the DS3800HFXB1R1H?
A: Not automatically. Verify the complete part number, configuration, connectors, electrical function, and host-system requirements before approving a substitute.
Q: What information should I provide when sourcing it?
A: Provide the complete number, photographs of the actual board, visible revision markings, connector details, and the GE equipment or cabinet where it is installed.
Q: How can I verify New Surplus condition?
A: Ask for photographs of the actual unit, confirmation that it is unused, information about whether it has ever been energized, and details of the supplier’s inspection or testing process.
Q: Does the board come with a warranty?
A: Warranty coverage varies by supplier and stock condition. Confirm the warranty period, testing coverage, DOA terms, and return procedure before purchase.
