GE DS3800HFXC Speedtronic Mark IV High-Speed Auxiliary Board

Description

3. Product Introduction

The GE DS3800HFXC functions as a High-Speed Auxiliary Circuit Board (HFXC) within legacy GE Speedtronic Mark IV gas and steam turbine control systems. Designed during GE’s foundational era of microcomputer-based turbine protection, the HFXC card acts as a specialized signal conditioning and distribution bridge between primary processor modules and peripheral field instrumentation.

Featuring high-grade industrial substrate traces, onboard test points for technician diagnostic scoping, and factory-calibrated jumper networks, the DS3800HFXC manages fast-response signal pathways. It ensures low-noise telemetry transmission across the backplane for critical speed sensing, valve positioning, and system status feedback loops.

4. Key Technical Specifications

5. Application Scenarios & The “Trench” Experience

During an annual turnaround on an aging Mark IV-controlled frame 7 gas turbine, technicians notice intermittent signal jitter on high-frequency auxiliary feedback lines during initial crank sequence tests. The instability traces back to signal degradation on an older HFXC board inside the control rack. The team isolates rack power, unseats the original card using the integrated retention tabs, and drops in a bench-tested DS3800HFXC replacement. After matching hardware jumpers and reconnecting the ribbon bus headers, clean waveform transmission is restored—allowing the turbine to pass full-speed no-load (FSNL) verification without false trip alarms.

• Legacy Gas Turbine Control Racks – Auxiliary Telemetry Conditioning – Routes specialized high-frequency feedback loops to primary microprocessors.
• Steam Turbine Auxiliary Loops – Signal Isolation – Provides clean, filtered signal pathways between field sensors and backplane logic.
• Mark IV Retrofit Maintenance – Direct Drop-in Replacement – Extends the operating life of existing Mark IV panel installations without requiring cabinet rewiring.

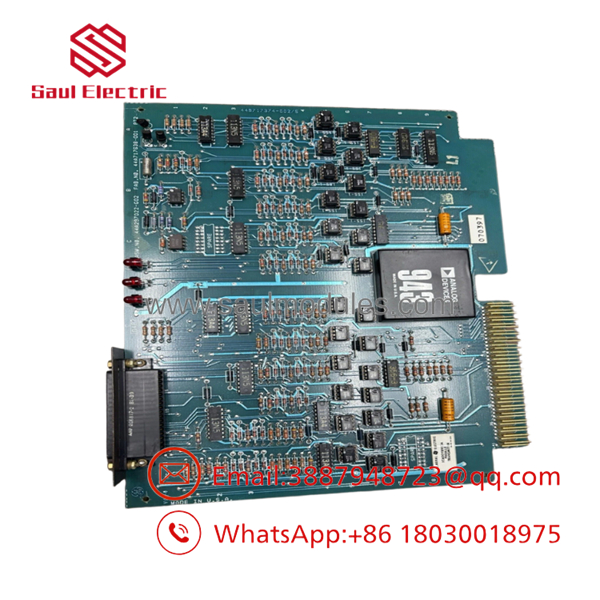

DS3800HFXC

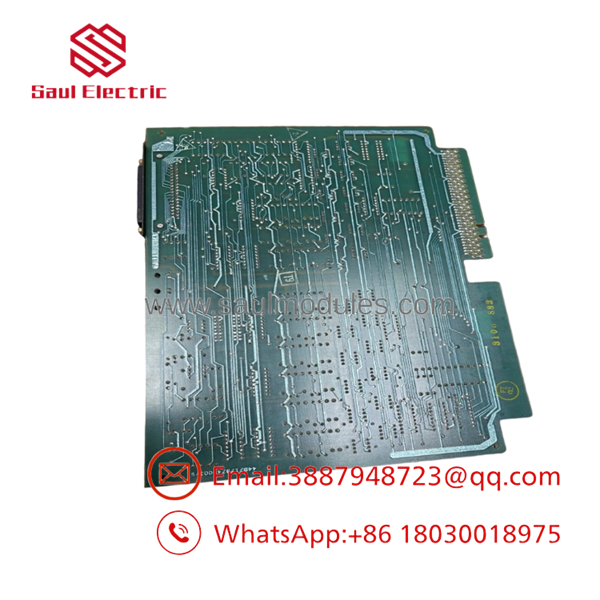

DS3800HFXC

6. Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual GE Mark IV test benches.

1. Inbound Substrate Inspection: High-magnification review for solder joint degradation, trace corrosion, component aging, or physical header pin damage.
2. Gold Finger & Edge Cleansing: Micro-polishing card edge connectors and multi-pin ribbon headers to guarantee low-resistance backplane contact.
3. Power Rail Bench Audit: Applying regulated DC bench power to verify onboard voltage drops, bypass capacitor functionality, and reference stability.
4. Frequency & Signal Pass-Through Test: Injecting high-speed test signals to confirm clean waveform transmission across all active channels without amplitude decay.
5. Anti-Static ESD Packaging: Enclosed in heavy ESD static-shielding bags with fresh desiccant prior to high-density foam packaging.

7. The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ POWER DOWN THE RACK BEFORE REMOVAL: Mark IV backplanes carry live logic and auxiliary DC power rails. Hot-swapping the DS3800HFXC card can cause arc-over on edge connectors or damage sensitive microchips on neighboring cards.
• ❗ VERIFY HARDWARE JUMPERS PIN-FOR-PIN: Legacy DS3800-series boards rely heavily on physical wire-wrap or shorting jumpers to set gain, isolation, or signal routing. Document and mirror every jumper position from the original board before inserting the replacement.
• ⚠️ INSPECT RIBBON CABLE RETENTION CLIPS: Top-mounted ribbon connections on Mark IV boards can become brittle with age. Ensure the plastic locking clips snap firmly into place so vibration does not work the cable loose during operation.
• ❗ ALWAYS WEAR AN ESD WRIST STRAP: Unprotected static discharge during card handling can invisible-damage onboard logic ICs and signal amplifiers.

8. Frequently Asked Questions (FAQ for Conversion)

Q: Is the DS3800HFXC compatible with newer Speedtronic Mark V or Mark VI systems?

A: No. The DS3800 series is designed specifically for the Mark IV turbine control system architecture and uses different rack dimensions and backplane pinouts than Mark V or Mark VI boards.

Q: Does replacing a DS3800HFXC board require firmware or software downloads?

A: No. The HFXC board is a hardware signal conditioning card. It contains no programmable software flash memory; setting the physical jumpers identically to your old board is all that is needed.

Q: What is the difference between DS3800 and DS200 part number prefixes in GE controls?

A: DS3800 designates the earlier Speedtronic Mark IV board platform, while DS200 represents the subsequent Mark V system architecture.

Q: Can I replace a DS3800HFXC with a board having additional revision letters at the end (e.g., DS3800HFXC1A)?

A: Later functional revisions (like 1A or 1B) are generally backward-compatible with the base board, provided all physical jumper configurations are transferred accurately.

Q: What warranty is provided with this surplus module?

A: Every unit comes with a full 12-month replacement warranty from the delivery date, covering trace continuity, signal execution, and channel stability.
