GE DS3800HFXD1D1D Signal Conditioning Board

Description

Product Introduction & Engineering Value

The GE DS3800HFXD1D1D is a legacy DS3800-series printed circuit board used for signal-conditioning and control functions. It is a component-level replacement rather than a modern PLC expansion module, so exact board identification matters before installation.

For maintenance teams supporting older GE equipment, the practical value is straightforward: replacing the matching board can avoid a larger control-system migration when the surrounding hardware remains serviceable. The DS3800HFXD1D1D continues to appear in industrial replacement and repair inventories.

Technical Specifications

Important specification note: Publicly available third-party documentation does not provide enough reliable evidence to assign exact input/output channel counts, operating voltage, connector pinouts, or signal ranges to the DS3800HFXD1D1D. Those values should not be guessed from the model number. Verify against the equipment manual, board markings, or the installed unit before commissioning.

Field Application & the “Trench” Experience

A maintenance team supporting an older GE control installation may encounter a familiar problem: the system is still doing its job, but one PCB has developed intermittent signal-conditioning faults. The temptation is to troubleshoot the entire rack. That can waste hours.

In a plausible outage scenario, a technician removes the suspect board and finds DS3800HFXD1D1D clearly marked on the PCB, with the same revision/configuration as the replacement. Instead of substituting a visually similar DS3800 board, the team matches the complete part number, checks connector condition, verifies the cabinet wiring, and installs the replacement. The important lesson is simple: legacy GE boards that look similar are not automatically interchangeable.

Niche application scenarios

• Legacy turbine control signal conditioning: replacement of a failed board while maintaining an existing GE control architecture.
• Industrial drive/control cabinet maintenance: restoration of signal-conditioning circuitry without replacing the complete control cabinet.
• Planned outage spare strategy: maintaining one verified DS3800HFXD1D1D as a critical spare where an obsolete control system remains operational.

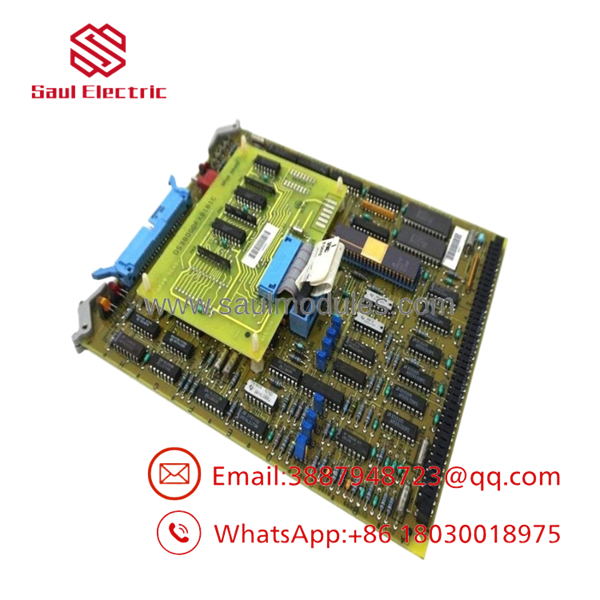

DS3800HFXD1D1D

Transparency SOP: QA & Testing

For New Surplus or Refurbished DS3800HFXD1D1D inventory, a credible QA process should distinguish physical inspection from functional verification.

1. Identity check — Confirm the complete part number and associated board markings.
2. Visual inspection — Examine the PCB, connectors, solder joints, components, traces, and mounting hardware for damage or corrosion.
3. Electrical inspection — Check for obvious shorts, damaged components, abnormal resistance paths, and power-related faults where applicable.
4. Functional testing — Where a compatible test platform is available, exercise the board under controlled conditions rather than relying solely on visual inspection.
5. Final documentation — Record the board condition, test status, serial/traceability information when available, and warranty terms before shipment.

Some industrial repair suppliers specifically advertise diagnostic, board-level repair, rebuilding, and QA testing services for this model.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Matching only “DS3800HFXD” is not enough.
The complete designation is . Do not assume another HFXD variant has the same circuitry or configuration. A related listing even distinguishes other HFXD variants such as DS3800HFXD1D1C.

⚠️ Trap #2 — Do not infer electrical specifications from another DS3800 board.
The DS3800 family contains many specialized boards. Published listings identify this particular unit as a signal-conditioning/control board, but that does not establish the voltage, channel configuration, or connector assignment of another board in the rack.

PRO TIP: Photograph the installed board before removal. Capture the complete part number, board revision, connector orientation, jumper/DIP-switch positions if present, and cable routing. That record can save considerable troubleshooting time during recommissioning.

⚠️ Trap #3 — “Refurbished” and “New Surplus” are not interchangeable terms.
A refurbished board may have been repaired or electrically tested after previous service. New surplus generally refers to older inventory that was not sold through the original production cycle, but the seller’s definition should be confirmed. Ask for the actual condition and test procedure rather than accepting a generic “new” description.

Dynamic FAQ

Is the GE DS3800HFXD1D1D still available?

Yes. The part continues to appear in industrial automation spare-parts inventories, including listings for new/surplus and refurbished units. Availability is inventory-dependent because the DS3800 platform is a legacy product family.

What type of board is the DS3800HFXD1D1D?

It is identified by industrial replacement suppliers as a GE signal conditioning board/control circuit board in the DS3800 family.

Does DS3800HFXD1D1D replace every DS3800 HFXD board?

No. Treat the complete part number as the replacement reference. The final D1D1D configuration should be matched rather than assuming that another HFXD variant is electrically equivalent.

Can a defective DS3800HFXD1D1D be repaired?

Potentially. Industrial repair providers list diagnostic and board-level repair services for this model, although repair feasibility depends on the actual failure and the availability of compatible components.

How should I verify a New Surplus DS3800HFXD1D1D?

Request clear photographs of the actual board, including the complete part number and board markings. Confirm that it has not been previously repaired or modified if that distinction matters to your application, and ask what inspection or functional testing was performed.

What warranty should I expect?

Warranty terms are seller-specific and should be confirmed before purchase. Do not assume that every New Surplus or Refurbished DS3800HFXD1D1D carries the same coverage. For critical control applications, obtain the warranty period, return conditions, and test documentation in writing.
