Description
Product Introduction & Engineering Value

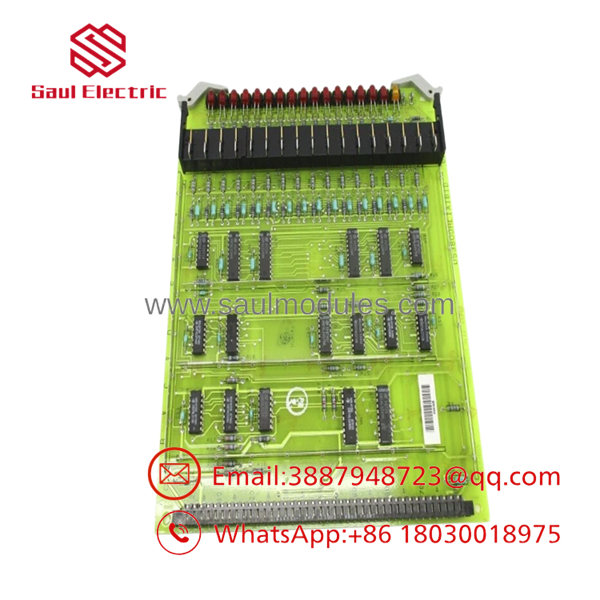

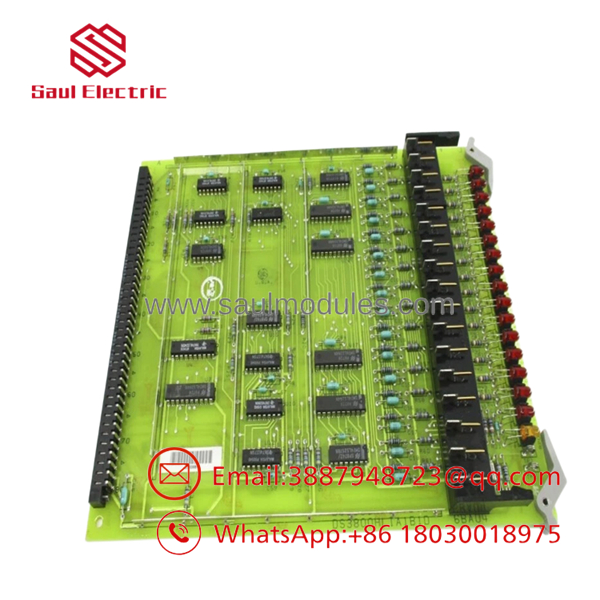

The GE DS3800HLIA1B1D is a legacy DS3800-series board identified by the HLIA designation and A1B1D configuration. Boards in this family remain relevant when plants continue operating older GE control equipment and need to maintain the installed architecture rather than replace an entire control system.
For procurement, the complete part number is the starting point. Do not substitute another DS3800 board simply because its dimensions or connector arrangement look similar. Board identification, configuration, system position, and original documentation should all agree.
Technical Specifications
Manufacturer: General Electric (GE)
Series: DS3800
Board Designation: HLIA
Part Number: DS3800HLIA1B1D
Board Type: Industrial printed circuit board
Configuration Code: A1B1D
Functional Category: Control/interface electronics
System Context: Legacy GE industrial control equipment
Installation Format: DS3800-compatible board rack or control cabinet
Lifecycle: Legacy hardware
Replacement Requirement: Exact part-number matching recommended
Technical Documentation: Host-system drawings should be used to establish electrical and interface characteristics
Engineering note: Detailed authoritative specifications for this exact DS3800HLIA1B1D configuration are not widely available in public documentation. Electrical ratings, connector pinouts, signal assignments, and component-level functions should therefore be confirmed from GE manuals, equipment drawings, or the original board.
Field Application & the “Trench” Experience
A plant operating an older GE control system has an intermittent fault that only appears after several hours of operation. During the outage investigation, the maintenance team identifies the suspect assembly as DS3800HLIA1B1D.
The spare is available, but the technician does not immediately install it. First, the original board’s rack position, labels, configuration hardware, and connector arrangement are documented. The replacement is then compared point-by-point before being introduced into the system.
That is the right approach for legacy hardware. The machine may have been modified several times since its original installation, and the current cabinet configuration can differ from the standard factory configuration.
Specific application scenarios
- Legacy GE machine-control systems: Replacement of an HLIA board where the existing DS3800 architecture remains in service.
- Industrial process-control cabinets: Maintaining aging electronic control assemblies during planned outages.
- CNC and dedicated equipment: Holding a verified DS3800HLIA1B1D spare to reduce downtime from an obsolete-board failure.
DS3800HLIA1B1D
DS3800HLIA1B1D
Transparency SOP: QA & Testing
For a New Surplus unit, a practical inspection process includes:
- Identification: Verify the complete DS3800HLIA1B1D part number.
- Board condition: Inspect the PCB, edge contacts, connectors, components, and solder joints.
- Configuration: Record visible jumpers, switches, daughterboards, and configuration markings.
- Damage screening: Check for corrosion, contamination, cracked components, or mechanical damage.
- Functional testing: When a suitable test fixture or compatible host system exists, test the board against available technical specifications.
- ESD handling: Package the board in appropriate anti-static material.
For refurbished inventory, ask for the actual refurbishment scope and test results. “Tested” should have a defined meaning.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Buying by series instead of part number
“DS3800” is not a sufficient purchasing specification. The required identifier is .
⚠️ Trap #2 — Assuming A1B1D is cosmetic
Configuration suffixes can matter. Do not assume that a different suffix represents a harmless revision.
PRO TIP: Record every alphanumeric marking on the original PCB before ordering. A clear photograph of the board label is often more useful than a verbal description.
⚠️ Trap #3 — Installing without recording the original arrangement
Legacy cabinets frequently contain field modifications. Preserve the original wiring and configuration information before removing the board.
Dynamic FAQ
What is the GE ?
The is a GE -series HLIA printed circuit board designed for use in compatible legacy industrial control equipment.
Is still manufactured?
The family represents legacy GE hardware, so current-production availability should not be assumed. Replacement procurement commonly involves surplus or refurbished inventory.
Can another HLIA board replace ?
Not without verification. Compare the complete model number, configuration, revision markings, connectors, and host-system requirements before substitution.
What should I provide when requesting a quote?
Provide the exact number, photographs of the front and rear of the board, visible configuration markings, host equipment information, and the board’s installed location if known.
How should New Surplus condition be verified?
Ask for photographs of the actual inventory unit and confirmation that it has not previously been installed. For critical control applications, request documented inspection and functional-test information.
What warranty should I ask for?
Confirm the warranty period, test coverage, DOA terms, return procedure, and whether the supplier supports technical troubleshooting during commissioning. For obsolete control hardware, those terms are more important than a generic “tested” label.
