GE DS3800HMHA1E1F Control Board DS3800 Series

Description

Product Introduction & Engineering Value

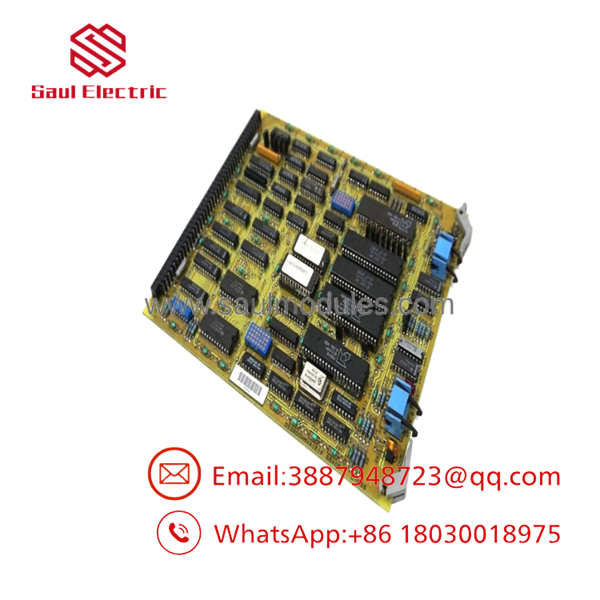

The GE DS3800HMHA1E1F is a legacy DS3800-series printed circuit board identified by the HMHA family and A1E1F configuration. With this generation of GE hardware, the complete identification number is critical because numerous boards share similar mechanical construction while serving different electrical roles.

For maintenance and procurement teams, the safest approach is to match the complete board number and compare it with the installed hardware before purchase. Physical fit alone is not sufficient evidence of electrical compatibility.

Technical Specifications

Technical caution: Authoritative public documentation for the exact DS3800HMHA1E1F is limited. Exact electrical ratings, I/O functions, signal ranges, connector pinouts, and system-specific operating parameters should be verified against GE technical documentation and the original equipment drawings.

DS3800HMHA1E1F

Field Application & the “Trench” Experience

Legacy DS3800 maintenance often comes down to disciplined identification.

During a planned outage, a technician finds a failed board labeled DS3800HMHA1E1F. The storeroom contains another DS3800 board with a similar physical layout. It would be tempting to install it and see what happens.

The technician does not.

The original board is photographed, its full identification and configuration are recorded, and the spare’s designation is compared character by character. The mismatch is caught before installation. The correct replacement is then inspected and tested before being returned to service.

That is not excessive caution. It is cheaper than debugging an incorrect board after startup.

Niche application scenarios

• Legacy GE control cabinets: replacement of an HMHA-series PCB within an installed DS3800 system.
• Scheduled outage spares: maintaining an exact-match board for equipment with limited OEM support.
• Legacy control-system life extension: replacing individual failed PCBs while retaining the existing control architecture.

Transparency SOP: QA & Testing

For DS3800HMHA1E1F inventory, a practical QA sequence is:

1. Identification — Verify the complete part number and all available board/revision markings.
2. Physical inspection — Check components, traces, connectors, solder joints, mounting hardware, corrosion, and contamination.
3. Configuration inspection — Record jumpers, switches, and configurable components where applicable.
4. Electrical screening — Check for shorts, abnormal resistance paths, damaged components, and obvious signs of electrical stress.
5. Functional test — Where compatible GE test equipment is available, verify relevant board functions under controlled conditions.
6. Traceability — Record board condition, test status, serial information when available, and warranty.

For New Surplus stock, ask specifically whether the actual board has ever been installed, repaired, modified, or electrically tested.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — The complete suffix matters.
Do not purchase simply by searching for “DS3800 HMHA.” Specify DS3800HMHA1E1F exactly.

⚠️ Trap #2 — Don’t infer specifications from another DS3800 board.
A nearby part number may have completely different circuitry. Family-level similarity does not establish interchangeability.

PRO TIP: Keep photographs of the original board label, connectors, configuration components, and cabinet position in your asset-management record.

⚠️ Trap #3 — “Tested” is not a standardized term.
Ask whether the supplier performed visual inspection, electrical screening, or actual functional testing. For an obsolete control PCB, that distinction matters.

Dynamic FAQ

What is the GE DS3800HMHA1E1F?

The is a GE DS3800-series industrial control printed circuit board identified by the HMHA family and A1E1F configuration.

What equipment is it compatible with?

It is associated with legacy GE industrial control equipment. Exact host-system compatibility should be established from the installed board and applicable GE equipment documentation.

Can another DS3800HMHA board be substituted?

Not without verification. Match the complete part number, revision, electrical characteristics, connector arrangement, and intended cabinet application.

What should I provide when requesting a replacement?

Provide the complete part number, photographs of the original board, revision markings, and the equipment or cabinet model if available.

How do I verify New Surplus condition?

Ask for photographs of the actual inventory unit and written confirmation of its history. Confirm whether it has ever been installed, repaired, modified, or functionally tested.

What warranty should I request?

Confirm the warranty duration, DOA coverage, return procedure, and test documentation. The supplier should clearly distinguish New Surplus, Refurbished, and Used condition.
