GE DS3800HMPK1F1F Control Board DS3800 Series

Description

Product Introduction & Engineering Value

The GE DS3800HMPK1F1F belongs to GE’s DS3800 family of legacy industrial control circuit boards. The HMPK designation identifies the board family, while the complete K1F1F configuration is essential for determining the correct replacement.

For procurement, this is an exact-match item. A board with the same DS3800 family designation but a different suffix should not be treated as interchangeable without engineering verification. Before ordering, compare the original label, connector layout, configuration components, and equipment documentation.

Technical Specifications

Technical caution: Public technical information for the exact DS3800HMPK1F1F is limited. Exact I/O functions, electrical ratings, connector assignments, signal characteristics, and host-system compatibility should be confirmed using the original equipment drawings or GE documentation. Do not infer these parameters from another HMPK variant.

Field Application & the “Trench” Experience

With obsolete DS3800 hardware, the biggest maintenance mistake is often ordering the right family but the wrong configuration.

A plant technician discovers a failed DS3800HMPK1F1F during an outage. The storeroom has several DS3800 boards, including one that appears nearly identical. The replacement is held back while the technician compares the complete part number, connector arrangement, configuration hardware, and cabinet documentation.

The spare turns out to carry a different configuration.

The correct board is sourced instead, inspected, and electrically screened before installation. The outage stays controlled rather than becoming an unplanned troubleshooting exercise.

Niche application scenarios

• Legacy GE control cabinets: maintaining installed DS3800 equipment where individual PCB replacement is required.
• Planned outage maintenance: keeping exact-match HMPK boards available as critical spares.
• Obsolete-system support: extending the service life of existing control equipment while migration planning proceeds.

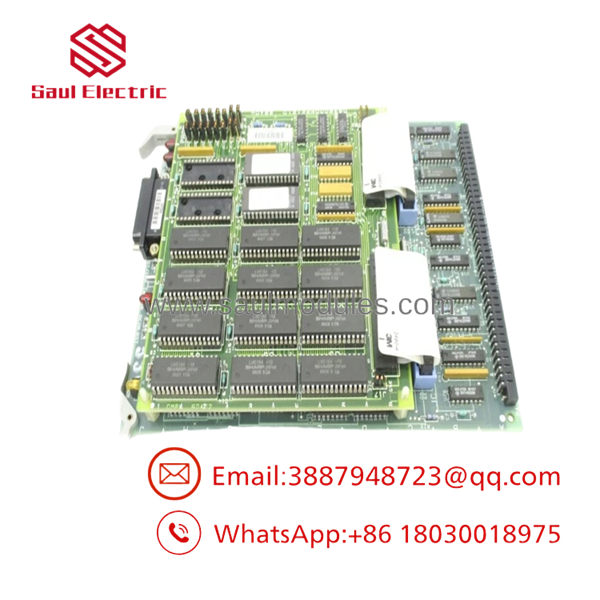

DS3800HMPK1F1F

Transparency SOP: QA & Testing

For a DS3800HMPK1F1F, a meaningful QA process should cover the following:

1. Part-number inspection — Verify DS3800HMPK1F1F and all available revision markings.
2. Component inspection — Check ICs, capacitors, resistors, connectors, and other visible components for damage or aging.
3. PCB inspection — Look for cracked solder joints, damaged traces, corrosion, contamination, and thermal discoloration.
4. Configuration verification — Record jumpers, switches, and configurable hardware where present.
5. Electrical screening — Check for shorts and abnormal resistance paths before functional testing.
6. Functional testing — Where the appropriate test equipment is available, verify application-specific functions.
7. Final documentation — Record condition, test results, traceability, and warranty.

For New Surplus units, confirm that the actual board is unused and has not previously been installed or modified.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Never order by “HMPK” alone.
The full designation is the identification that matters for procurement.

⚠️ Trap #2 — Similar board layout does not equal compatibility.
DS3800 boards can share physical characteristics while having different electrical functions or configurations.

PRO TIP: Photograph the original board before removal. Capture the identification label, connectors, configuration components, and any field modifications.

⚠️ Trap #3 — Ask what “tested” actually means.
A visual inspection and a functional test are not equivalent. For an obsolete GE PCB, request the actual testing scope before relying on the supplier’s condition statement.

Dynamic FAQ

What is the GE DS3800HMPK1F1F?

The is a GE DS3800-series industrial control PCB belonging to the HMPK board family.

What system does it belong to?

It belongs to GE’s legacy DS3800 control hardware family. The exact host-system application should be confirmed from the original equipment documentation.

Can I replace it with another HMPK board?

Not without verification. Compare the complete part number, configuration, revision, connectors, and electrical/application requirements.

What information should I provide when sourcing one?

Provide the full part number, clear photographs of the original PCB and label, revision information, and the GE equipment or cabinet model if available.

How can I verify New Surplus authenticity?

Ask for photographs of the actual unit and written confirmation that it has not been installed, repaired, modified, or previously returned from service.

What warranty terms should I confirm?

Confirm warranty length, DOA protection, return conditions, and test documentation. Make sure the supplier clearly identifies the unit as New Surplus, Refurbished, or Used rather than using those terms interchangeably.
