Product Introduction & Engineering Value
The GE DS3800HRDA1C1C is a legacy GE DS3800-series circuit board identified by the HRDA designation and C1C configuration. These boards are encountered in older GE control equipment where maintaining the installed architecture can be more practical than replacing the entire control system.
For procurement, use the full DS3800HRDA1C1C identifier. Do not reduce the request to “DS3800 HRDA.” The configuration suffix can be critical when matching obsolete hardware.
Technical Specifications
- Manufacturer: General Electric (GE)
- Model: DS3800HRDA1C1C
- Product Family: DS3800
- Board Designation: HRDA
- Product Type: Industrial control PCB
- Configuration: C1C
- System Category: Legacy GE industrial control hardware
- Installation: Compatible GE control cabinet/equipment assembly
- Application: Industrial automation and equipment control
- Replacement Strategy: Exact part-number verification
- Lifecycle: Legacy / secondary-market component
- System Dependency: Host-equipment specific
Engineering caution: Exact electrical specifications for the DS3800HRDA1C1C should be verified from the applicable GE documentation or the physical unit. Do not infer connector pinouts, I/O counts, voltage ratings, signal types, or communication functions from the DS3800 family name or another HRDA variant.

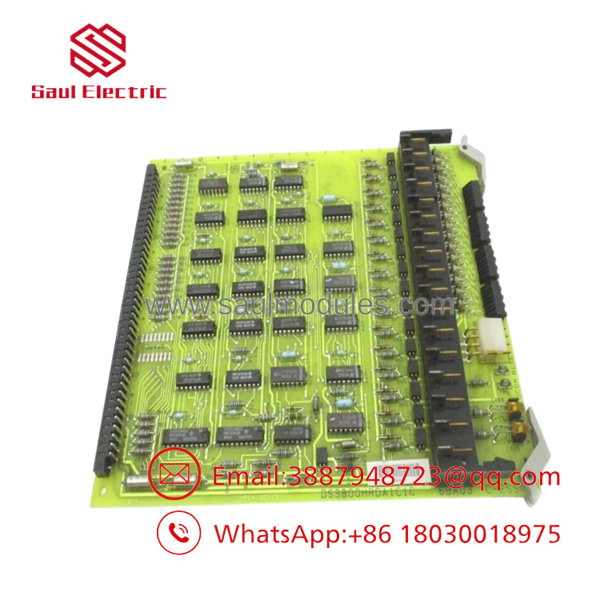

DS3800HRDA1C1C

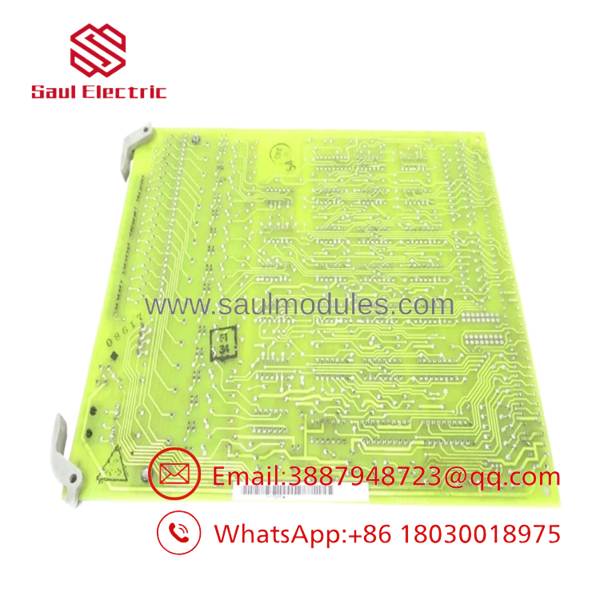

DS3800HRDA1C1C
Field Application & the “Trench” Experience
During a scheduled shutdown, a maintenance team finds that an older GE control cabinet contains a failed HRDA board. The spare cabinet has several DS3800-series boards, but none can be approved simply because the mounting pattern looks correct.
The team photographs the installed DS3800HRDA1C1C, records its complete identification and connector arrangement, then checks the available replacement. Only after the board markings and configuration agree does the replacement proceed to inspection and installation.
With legacy electronics, five minutes spent documenting the original board can prevent hours of startup troubleshooting.
Specific application scenarios:
- Legacy GE industrial control cabinet repair during planned outages.
- Older process-machine controller refurbishment where DS3800 hardware remains in service.
- Critical spare inventory management for obsolete GE automation equipment.
Transparency SOP: QA & Testing
For New Surplus and Refurbished DS3800HRDA1C1C inventory, use a traceable inspection process:
- Part-number verification — Confirm DS3800HRDA1C1C and all visible identification markings.
- PCB examination — Inspect components, connectors, solder joints, traces, mounting points, and edge contacts.
- Environmental inspection — Check for corrosion, moisture damage, contamination, discoloration, and overheating.
- Configuration comparison — Compare the replacement with the customer’s original board.
- Functional testing — Conduct appropriate testing where compatible GE equipment and procedures are available.
- Documentation — Record condition, photographs, test status, and stock classification.
A supplier should distinguish unused New Surplus from previously installed Refurbished inventory. “Tested” by itself does not explain what was tested.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Never shorten the part number.
Use on purchase orders and RFQs. Omitting the C1C configuration can produce the wrong board.
⚠️ Trap #2 — Similar PCB does not equal equivalent PCB.
DS3800 boards can share mechanical characteristics while performing different electrical functions.
⚠️ Trap #3 — Verify actual field wiring.
Legacy cabinets may have been modified after the original installation. Historical drawings should be compared with the physical cabinet before disconnecting the board.
PRO TIP: Keep the original board until the replacement has passed functional checks. The failed unit can still serve as a valuable reference for connector locations and hardware configuration.
Dynamic FAQ
Q: What is the GE DS3800HRDA1C1C?
A: It is a legacy GE DS3800-series industrial control PCB, identified by the HRDA board designation and C1C configuration.
Q: What system is the DS3800HRDA1C1C used with?
A: It is intended for compatible GE legacy control equipment. The exact host system and circuit function should be confirmed from the equipment documentation.
Q: Is another DS3800HRDA board interchangeable?
A: Not automatically. Verify the complete part number, configuration, connectors, electrical function, and host-system requirements before substitution.
Q: What should I provide when sourcing this board?
A: Provide the complete number, photographs of the actual PCB and label, visible configuration markings, connector information, and the equipment where the board is installed.
Q: What should a New Surplus supplier provide?
A: Ideally, confirmation that the actual unit is unused, information about whether it has ever been installed or energized, clear photographs, and details of the inspection or testing performed.
Q: Is warranty coverage available?
A: Warranty terms depend on the supplier and material condition. Confirm the warranty period, testing scope, DOA coverage, and return conditions before purchasing.
