Description
Product Introduction & Engineering Value

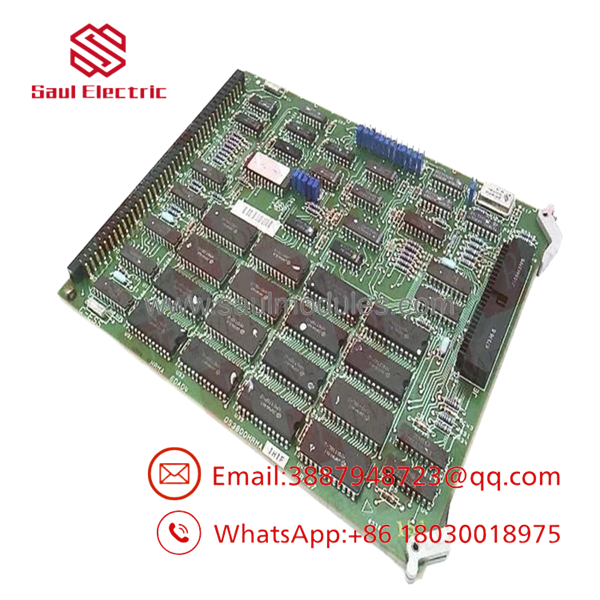

The GE DS3800HRMA1H1F is a legacy DS3800-series printed circuit board associated with the Speedtronic Mark IV turbine-control platform. Its complete identification is important because DS3800 boards were produced in numerous functional variants with similar physical construction.
For maintenance and procurement teams, the safe approach is straightforward: match the complete DS3800HRMA1H1F number, confirm the board revision and cabinet application, and compare the physical configuration with the installed hardware. Do not select a replacement solely because it carries the same HRMA family designation.
Technical Specifications
- Manufacturer: General Electric
- Part Number: DS3800HRMA1H1F
- Product Family: DS3800
- Control Platform: Speedtronic Mark IV
- Board Designation: HRMA
- Product Type: Control/interface PCB
- Primary Application: GE turbine-control equipment
- Hardware Generation: Mark IV
- Revision Identification: H1F
- Installation Environment: Mark IV control cabinet
- Configuration: Application-dependent
- Replacement Strategy: Exact board identification required
Technical caution: Publicly available information for the exact DS3800HRMA1H1F revision is insufficient to establish reliable numerical specifications for operating voltage, processor architecture, memory, I/O channels, connector pin assignments, or signal ratings. Those values should be taken from the applicable GE Mark IV documentation and the actual board.
Field Application & the “Trench” Experience
A turbine plant has a Mark IV control cabinet that has been in service for years. During a planned outage, a technician identifies a suspect board and the inventory system shows several DS3800 boards in storage.
One is marked “HRMA.”
That sounds promising. It is not enough.
The technician checks the removed board and records DS3800HRMA1H1F. The spare is then compared against the complete part number, revision markings, connector arrangement, and cabinet documentation. Only after the identification is confirmed does the spare become a candidate for installation.
With legacy Speedtronic equipment, this discipline saves time. The wrong board can create a second fault while everyone is still trying to solve the first.
Specific application scenarios
- Mark IV turbine-control maintenance — replacement of a failed HRMA board during a scheduled outage.
- Legacy Speedtronic fault isolation — investigation of abnormal control behavior before replacing larger system assemblies.
- Mark IV critical-spare planning — maintaining an exact HRMA revision for equipment where modern replacement paths are limited.
DS3800HRMA1H1F
Transparency SOP: QA & Testing
For New Surplus or Refurbished inventory, the supplier should be able to explain exactly what was inspected and tested.
QA sequence
- Identity verification — confirm
DS3800HRMA1H1Fand all visible board markings. - Visual PCB inspection — check for corrosion, contamination, cracked solder joints, damaged traces, and heat-related discoloration.
- Connector inspection — examine contacts for oxidation, bending, contamination, and mechanical damage.
- Component inspection — assess visible capacitors, resistors, semiconductors, integrated circuits, and other critical components.
- Configuration documentation — photograph jumpers, switches, modifications, and other configurable hardware.
- Electrical testing — perform appropriate continuity, isolation, and power-path checks.
- Functional testing — where suitable Mark IV test equipment is available, verify board operation under controlled conditions.
- Final QC record — document the condition, test results, refurbishment work, and warranty status.
Important: A visual inspection is not a functional test. Procurement documentation should state which level of verification was actually performed.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Buying by the HRMA family alone
“DS3800 HRMA” is not a sufficient replacement specification.
PRO TIP: Keep the complete identifier on purchase orders, inventory labels, and maintenance records.
⚠️ Trap #2 — Dropping the H1F suffix
The suffix is part of the hardware identification. A different revision should not be accepted simply because the board appears identical.
⚠️ Trap #3 — Assuming New Surplus means recently manufactured
New Surplus generally means unused inventory. It may still have been stored for many years. Component aging and connector oxidation remain possible.
⚠️ Trap #4 — Removing the original board without taking photographs
Before disassembly, document the board’s labels, connectors, configuration hardware, cabinet position, and visible modifications. This information can become essential during recommissioning.
Dynamic FAQ
What is the GE ?
The is a GE DS3800-series control/interface PCB associated with the Speedtronic Mark IV turbine-control architecture.
What system does the belong to?
It belongs to the legacy GE Mark IV Speedtronic turbine-control hardware family.
Is the a PLC I/O card?
No. It is legacy Mark IV control hardware rather than a conventional modern PLC analog or discrete I/O module.
Can another HRMA board replace it?
Not automatically. Confirm the complete part number, revision, cabinet position, connector configuration, and application documentation before substitution.
What should I send when requesting a quotation?
Provide the complete number, photographs of the existing board, visible revision markings, cabinet or system identification, and any applicable GE drawings or manuals.
What does New Surplus mean?
New Surplus generally refers to unused inventory outside the manufacturer’s current production or normal distribution channel. It does not necessarily mean recently manufactured.
What is Refurbished stock?
Refurbished means previously used or returned hardware has undergone inspection and may have been repaired and tested. The supplier should disclose the actual work performed and the testing completed.
Should a New Surplus be tested?
Yes. Long-term storage can affect electronic components even when a board has never been installed. Inspection and controlled functional testing are advisable before deployment in critical Mark IV equipment.
What warranty should I expect?
Ask the supplier to specify the warranty period, covered failures, return procedure, and condition classification of the actual unit. New Surplus, Refurbished, and Repaired units should not be treated as having identical warranty terms. A supplier warranty should also be distinguished from a GE factory warranty.
