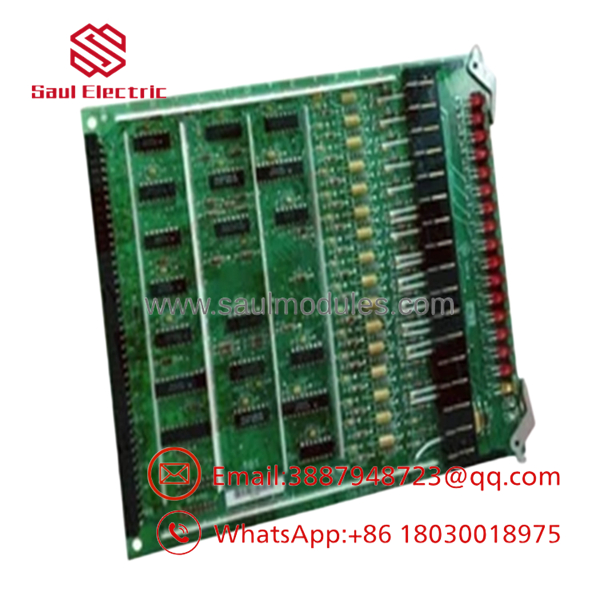

The GE DS3800HSCD is a high-speed signal conditioner board designed for GE Speedtronic Mark IV gas and steam turbine control architectures. Positioned in the signal processing rack, it converts raw field analog inputs—such as pressure transducers, valve position feedback, and temperature signals—into normalized, isolated internal signals suitable for digital processing by primary CPU cards.
Field engineers rely on the HSCD module because it acts as a hardware barrier against common-mode noise and ground loops. Instead of piping raw, unconditioned analog field signals directly to central processor backplanes, this board filters, scales, and optically isolates every channel at the entry point. That hardware isolation protects sensitive control processors from voltage spikes while maintaining tight loop accuracy across turbine governing circuits.
Key Technical Specifications
| Parameter | Specification / Value |
|---|---|
| Part Number | DS3800HSCD |
| System Compatibility | GE Speedtronic Mark IV Control Systems |
| Board Type | High-Speed Signal Conditioner Board (HSCD) |
| Input Signal Types | Analog voltage (0–10V DC) & milliamp (4–20mA) inputs |
| Isolation Rating | Galvanic / Optical isolation between field and backplane buses |
| Configuration | Onboard hardware DIP switches & resistor jumper network arrays |
| Interconnects | Gold-plated card-edge backplane connector & front edge test points |
| Board Handling | Dual nylon card ejector clips on leading edge |
| Revision Level | Multi-revision availability (e.g., 1J1C, 1D1B) |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
Application Scenarios & The “Trench” Experience
It’s 2:15 AM during peak summer load, and a 100 MW simple-cycle gas turbine trips on a sudden “Inlet Guide Vane (IGV) Position Fault.” The physical IGV actuator is rock solid, but Channel A’s position feedback signal jumped wildly in the Mark IV diagnostic logs. The cause isn’t a bad LVDT sensor—an operational amplifier on an aging HSCD board broke down under high ambient control house temperatures, introducing erratic signal offsets. Every hour the unit stays offline costs the plant thousands in lost generation tariffs. Swapping in a clean, bench-verified DS3800HSCD card, matching its jumper configuration, and sliding it into the card cage is the fastest path to stabilizing feedback loops and getting the turbine back on the grid.
- Combined-Cycle Power Plants – GE Frame 7/9 Gas Turbines – Conditioning variable feedback signals for fuel valves and IGV actuators.
- Industrial Steam Co-generation – Mechanical Drive Turbines – Filtering continuous pressure and temperature transmitter loops in harsh plant environments.
- Refineries & Petrochemical Works – Islanded Turbogenerators – High-noise isolation for critical process interlocks and governor inputs.
Field Case Study
A steel plant’s captive power house suffered intermittent trip warnings on its steam turbine governor loop whenever heavy arc furnaces struck up across the electrical yard. Diagnostics showed high-frequency electrical noise riding on the analog feedback lines. We dispatched a fully tested DS3800HSCD replacement board within 6 hours. The instrument lead duplicated the original board’s jumper settings, popped the card into slot 5, and completely eliminated the noise-induced feedback spikes—avoiding an estimated $75,000 in unscheduled downtime losses.
DS3800HSCD
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual GE Mark IV rack setups. Here is our exact internal verification workflow before any DS3800HSCD leaves our bench:
- Inbound Visual & Trace Inspection: Check gold edge-connector fingers for wear or oxidation, inspect ceramic capacitors and trace runs for thermal stress, and confirm intact OEM batch labels.
- Cold Circuit Resistance Audit: Measure resistance across power rail inputs to verify no short circuits exist before applying live logic power.
- Power-On & Backplane POST: Install the board into a live GE Mark IV test chassis to confirm logic power distribution (+5V, ±15V DC) and bus handshake stability.
- Analog Signal Sweep & Isolation Test: Inject calibrated 0–10V DC and 4–20mA inputs across all signal channels using a precision signal generator. Verify linear output response, check filter time constants, and confirm channel-to-channel isolation.
- Revision Verification: Document exact revision codes on the final QA release certificate.
- ESD Packaging: Seal inside static-shielding bags with fresh desiccant packs before custom foam boxing.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ 1. Match Hardware Jumpers and DIP Switches Before Power-Up!
The DS3800HSCD utilizes onboard jumper blocks and DIP switches to select signal attenuation levels, voltage vs. current input types, and filter responses. Drop-shipping a replacement card with default settings directly into a live rack can cause the board to miscalculate feedback values, triggering immediate control faults. Take a high-resolution photo of your original card’s jumper positions before pulling it!
❗ 2. Watch Out for Static Damage During Handling
The signal conditioning amplifiers and logic circuits on legacy Mark IV cards have zero tolerance for static discharge. Never handle this board without a grounded ESD wrist strap clipped to the cabinet frame. Touch unpainted rack metal before removing the card from its anti-static bag.
⚠️ 3. Use Both Nylon Ejector Clips Simultaneously
The rear card-edge connector mates with high pin-density backplane sockets. When installing or removing the module, engage or release both nylon ejector clips at the same time with equal pressure. Pulling unevenly on one corner can bend pins or crack the PCB substrate.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the hot-swappable?
A: No. Removing a signal conditioner board while the Mark IV rack is energized severs active process feedback loops, causing an immediate emergency trip of the turbine or triggering a severe system fault lockout. Always follow full LOTO procedures before swapping this card.
Q: How do I know which full revision suffix (e.g., DS3800HSCD1J1C) I need?
A: The base part number is . The suffix numbers/letters (like 1J1C) designate specific artwork and component bill-of-materials revisions. In most Mark IV signal conditioning applications, newer revisions are backward-compatible as long as you match all hardware jumper and DIP switch settings to your original board.
Q: Can this board accept both 4–20mA and 0–10V DC inputs?
A: Yes. The HSCD family supports multiple analog input ranges, but individual channels must be properly configured using the onboard jumpers and DIP switch banks prior to installation.
Q: Is this unit new or refurbished, and what warranty covers it?
A: We supply this module as New Surplus stock (unused factory original surplus). Every unit includes our full 12-month operational replacement warranty.
Q: Why buy surplus instead of ordering directly through GE OEM networks?
A: Legacy Mark IV series components have been discontinued by the manufacturer for years. Sourcing New Surplus from our stock avoids multi-month factory lead times, eliminates exorbitant rush fees, and provides an immediate drop-in replacement for operating power plants.
