Product Introduction & Engineering Value
The GE DS3800HSCH1B1B is an HSCH-series printed circuit board from the legacy DS3800 platform. It is relevant to maintenance teams supporting older GE control installations where an exact replacement is preferable to introducing an unverified substitute.
With this generation of hardware, the complete part number is the procurement reference. A similar-looking DS3800 board is not sufficient. Confirm the HSCH designation, 1B1B configuration, board markings, connectors, rack position, and host-system documentation before installation.
Technical Specifications
Manufacturer: General Electric (GE)
Product Family: DS3800
Board Designation: HSCH
Part Number: DS3800HSCH1B1B
Board Type: Industrial printed circuit / interface board
Configuration: 1B1B
Functional Category: Control/interface electronics
System Context: Legacy GE industrial control equipment
Installation: DS3800-compatible control rack or cabinet
Lifecycle: Legacy hardware
Replacement Strategy: Exact part-number verification recommended
Technical Documentation: Use system-specific GE drawings for electrical and interface characteristics
Technical caution: Detailed authoritative public specifications for the exact DS3800HSCH1B1B configuration are limited. Voltage ratings, connector pinouts, I/O assignments, component functions, and environmental specifications should not be guessed from the model number. Verify them against the original GE documentation or equipment drawings.
Field Application & the “Trench” Experience
A maintenance team working on an older GE-controlled machine receives an intermittent control alarm. During the shutdown inspection, the technician finds an HSCH board marked DS3800HSCH1B1B.
The spare is already available, but the technician documents the original first. The board position is recorded, connector locations are photographed, and configuration markings are compared. The replacement is then inspected against the removed unit before installation.
This procedure is especially useful on equipment that has been in service for decades. Site modifications, field wiring changes, and undocumented component replacements can make a supposedly standard cabinet anything but standard.
Specific application scenarios
- Legacy GE control cabinets: Maintaining DS3800 electronic assemblies without immediate platform migration.
- Industrial process machinery: Replacing HSCH hardware during planned control-system maintenance.
- Dedicated production equipment: Holding a verified DS3800HSCH1B1B spare for recovery from board-level faults.

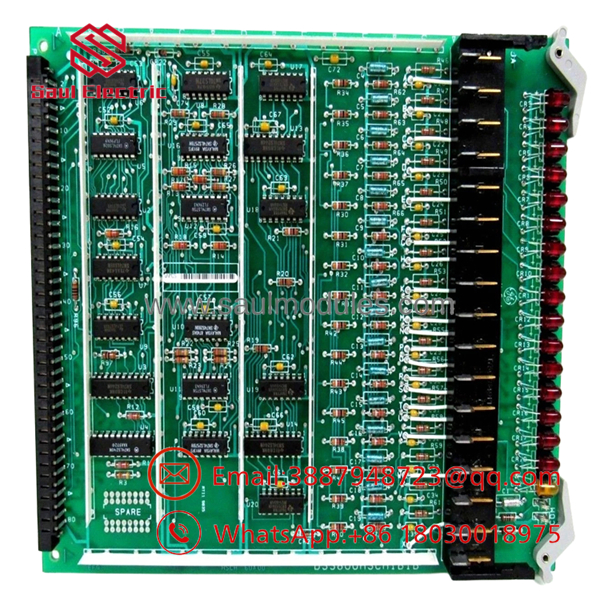

DS3800HSCH1B1B
Transparency SOP: QA & Testing
For New Surplus inventory, use a documented receiving inspection:
- Identification: Verify DS3800HSCH1B1B on the actual PCB.
- Physical condition: Inspect the PCB, connectors, edge contacts, solder joints, and components.
- Configuration: Record visible jumpers, switches, daughterboards, and revision markings.
- Storage condition: Check for corrosion, contamination, impact damage, and evidence of previous installation.
- Functional test: Where a compatible test fixture or host system exists, test the board against documented requirements.
- ESD handling: Use anti-static packaging for storage and shipment.
For refurbished stock, request the repair history and test results. A cleaned board is not necessarily a repaired or fully tested board.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Ordering by “HSCH” alone
The board designation is only part of the identification. Match in full.
⚠️ Trap #2 — Ignoring the 1B1B configuration
Do not assume that the configuration suffix is cosmetic. Verify it against the original PCB and system documentation.
PRO TIP: Take photographs of both sides of the original board whenever possible. Include every label, connector, jumper, switch, and configuration marking.
⚠️ Trap #3 — Replacing the board before checking surrounding hardware
If the original failure was caused by a power, wiring, or downstream equipment problem, a replacement board can fail immediately. Check the surrounding circuitry before energizing the spare.
Dynamic FAQ
What is the GE ?
The is a GE HSCH-series printed circuit board belonging to the legacy DS3800 industrial control family.
What does the HSCH board do?
The HSCH designation identifies the board family, but detailed public information for this exact configuration is limited. Its precise electrical and control role should be confirmed from the host equipment documentation.
Can another HSCH board replace ?
Not automatically. Verify the complete part number, configuration, revision, connectors, and system requirements before substitution.
What information should I provide when sourcing this board?
Provide exactly as marked, along with photographs of the original board, visible configuration markings, host equipment information, and board location.
How do I verify New Surplus authenticity?
Request photographs of the actual inventory unit and confirm that it is unused rather than previously installed or refurbished. For critical applications, request documented inspection and functional testing.
What warranty should I request?
Confirm warranty duration, functional-test coverage, DOA policy, return conditions, and commissioning support before purchase. Those details matter when sourcing legacy GE electronics.
