Description
Product Introduction & Engineering Value

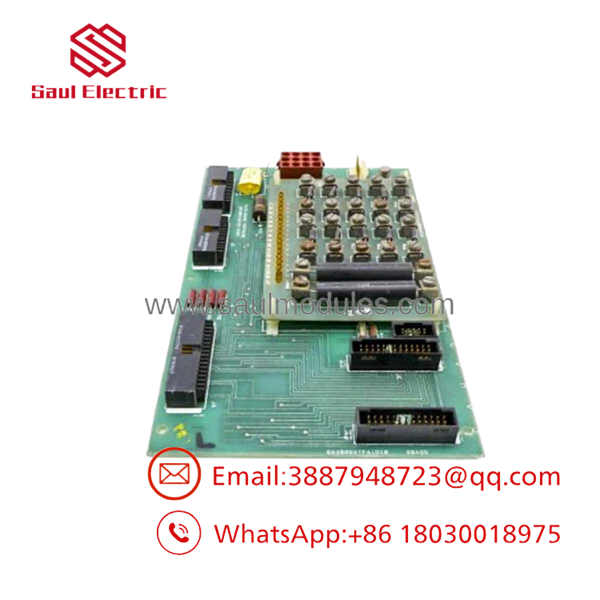

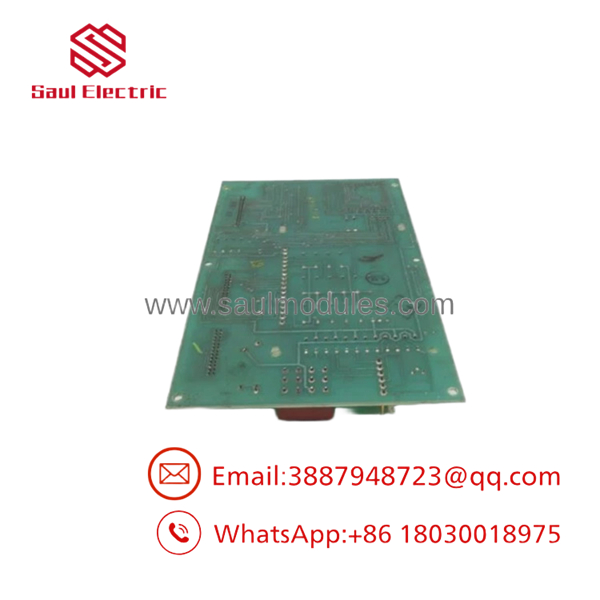

The GE DS3800HSQD1G1B is a legacy DS3800-series control PCB associated with the Speedtronic Mark IV turbine-control platform. The HSQD designation identifies the board family, while the G1B suffix should remain part of the complete procurement identifier.
For plants still supporting Mark IV equipment, replacement discipline matters. DS3800 boards often share similar mechanical construction, so visual similarity is a poor compatibility test. Confirm the full board number, revision, cabinet position, connector configuration, and system documentation before installation.
Technical Specifications
- Manufacturer: General Electric
- Part Number: DS3800HSQD1G1B
- Product Family: DS3800
- Control Platform: Speedtronic Mark IV
- Board Designation: HSQD
- Product Type: Control/signal-processing PCB
- Primary Application: GE turbine-control equipment
- Hardware Generation: Mark IV
- Revision Identification: G1B
- Installation Environment: Mark IV control cabinet
- Configuration: Application-dependent
- Replacement Strategy: Exact board identification required
Technical caution: Publicly available technical documentation for the exact DS3800HSQD1G1B is limited. Specific operating voltage, processor, memory, I/O channel count, connector pinout, signal ranges, or calibration values should not be inferred from another DS3800 model. Verify those parameters against the applicable GE Mark IV documentation and the physical board.
Field Application & the “Trench” Experience
A maintenance team is preparing a Mark IV turbine for restart after an outage. A control fault has been narrowed down to a DS3800 board. The spare-parts cabinet contains several boards from the same general family.
One is marked HSQD.
The experienced technician stops there.
The removed board is checked carefully and identified as DS3800HSQD1G1B. The replacement is then compared against the original identification, revision, connector arrangement, and cabinet documentation. Only when those details agree is the spare released for installation.
That may seem excessive on an old system. It is not. Legacy control boards can be difficult to replace once the original configuration has been disturbed.
Specific application scenarios
- Mark IV turbine-control maintenance — replacing a failed HSQD board during a scheduled outage.
- Speedtronic control fault isolation — investigating board-level signal or control abnormalities.
- Legacy turbine spare management — maintaining an exact DS3800HSQD1G1B spare for continued Mark IV operation.
Transparency SOP: QA & Testing
A supplier offering this board as New Surplus or Refurbished should provide a clear inspection and testing trail.
QA process
- Identity verification — confirm the complete
DS3800HSQD1G1Bnumber and visible revision markings. - PCB inspection — check for corrosion, contamination, damaged traces, cracked solder joints, and heat discoloration.
- Connector inspection — examine contacts for oxidation, bending, contamination, and mechanical damage.
- Component inspection — review capacitors, resistors, semiconductors, ICs, and other visible components.
- Configuration documentation — photograph switches, jumpers, modifications, and configurable hardware.
- Electrical testing — perform appropriate continuity, isolation, and power-path tests.
- Functional testing — where suitable Mark IV test equipment exists, verify board operation under controlled conditions.
- Final QC record — document condition, repairs, test results, and warranty status.
Testing distinction: A board that passes a visual inspection has not necessarily passed a functional test. Suppliers should state the actual scope of testing.
DS3800HSQD1G1B
DS3800HSQD1G1B
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Searching only for “HSQD board”
That search can return related hardware with different revisions.
PRO TIP: Procure against the complete part number.
⚠️ Trap #2 — Ignoring G1B
The revision suffix should stay in the equipment record. Do not assume another HSQD revision is interchangeable without engineering confirmation.
⚠️ Trap #3 — Treating New Surplus as equivalent to new production
New Surplus means unused inventory in most supplier terminology. It may have been stored for years or decades. Component aging remains possible.
⚠️ Trap #4 — Removing the original board before recording its configuration
Photograph the board and document connectors, switches, jumpers, labels, and cabinet position before disconnecting anything.
That information can be invaluable during recommissioning.
Dynamic FAQ
What is the GE ?
The is a GE DS3800-series control/signal-processing printed circuit board associated with the Speedtronic Mark IV turbine-control architecture.
What system uses the ?
It is associated with GE’s legacy Mark IV Speedtronic turbine-control platform.
Is this a conventional PLC I/O module?
No. It is legacy Mark IV control hardware rather than a conventional modern PLC analog or discrete I/O module.
Can another HSQD board replace it?
Not automatically. Verify the complete part number, revision, physical configuration, cabinet position, and application-specific documentation before substitution.
What should I provide when sourcing this board?
Provide exactly as marked on the original board, plus photographs, revision markings, cabinet/system identification, and available GE documentation.
What does New Surplus mean?
New Surplus generally describes unused inventory outside the manufacturer’s current production or normal distribution channel. It does not necessarily indicate a recent manufacturing date.
What does Refurbished mean?
Refurbished generally means previously used or returned hardware has been inspected and may have been repaired and tested. Ask the supplier what work was actually performed.
Should a New Surplus board be tested?
Yes. Long-term storage can affect electronic components, connectors, and solder joints. Inspection and controlled functional testing are appropriate before installing a legacy board into a critical turbine-control system.
What warranty should I expect?
Request the warranty period, coverage conditions, return procedure, and exact stock condition in writing. New Surplus, Refurbished, and Repaired boards should have clearly defined terms. A supplier warranty should not be represented as a GE factory warranty unless documented.
