Description
Product Introduction & Engineering Value
The GE DS3800HXMA1G1G is a legacy DS3800-series control PCB identified by the HXMA board family. For equipment that has been running for decades, these boards are often maintained as individual replacement components rather than as part of a new control-system architecture.
The important procurement detail is the complete designation. DS3800HXMA1G1G should be matched character by character against the installed board. Similar-looking DS3800 boards can have different circuit functions, connector arrangements, or configurations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric |
| Part Number | DS3800HXMA1G1G |
| Product Family | DS3800 |
| Board Family | DS3800HXMA |
| Board Type | Industrial control circuit board |
| Configuration | 1G1G |
| Technology Generation | Legacy GE control electronics |
| PCB Format | Plug-in printed circuit board |
| Primary Application | GE legacy industrial control equipment |
| Replacement Method | Exact part-number verification |
| Typical Stock Conditions | New surplus, refurbished, or used |
| Maintenance Approach | Inspection, electrical screening, and application-specific testing |
Technical caution: Publicly available information for the exact DS3800HXMA1G1G is limited. Exact electrical specifications, signal functions, connector pinouts, I/O assignments, and system compatibility should be confirmed against the original GE documentation and equipment drawings. Do not infer them from another HXMA or DS3800 variant.
Field Application & the “Trench” Experience
A common mistake with legacy GE hardware is treating physical similarity as proof of compatibility.
During a scheduled maintenance outage, a technician removes a failed DS3800HXMA1G1G from an existing control cabinet. A replacement DS3800 board is available, but its suffix differs. The technician checks the original board’s label, connector arrangement, configuration components, and cabinet drawings before authorizing the swap.
The mismatch is caught before installation.
The correct replacement is subsequently sourced, inspected, and tested. The maintenance team avoids introducing an unknown hardware configuration into a system that has already been difficult to troubleshoot.
Niche application scenarios
- Legacy GE control cabinet maintenance: replacement of an HXMA-series PCB in installed DS3800 equipment.
- Critical spare inventory: holding an exact-match PCB for equipment with long support requirements.
- Outage-based PCB replacement: restoring an individual control-board function without immediately replacing the entire legacy control system.

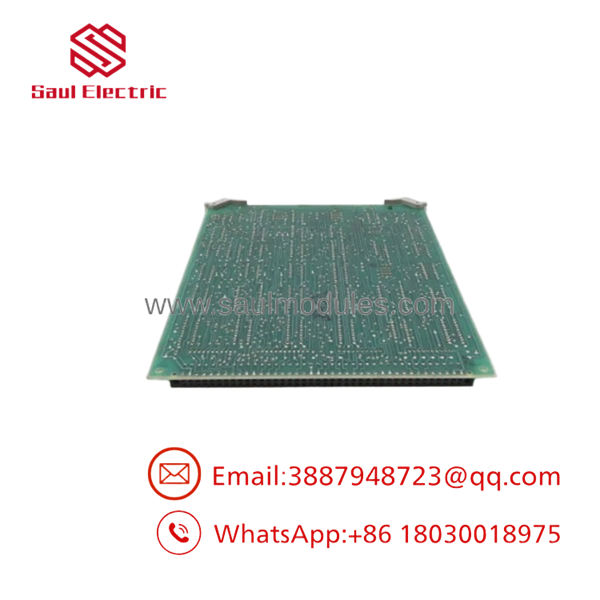

DS3800HXMA1G1G

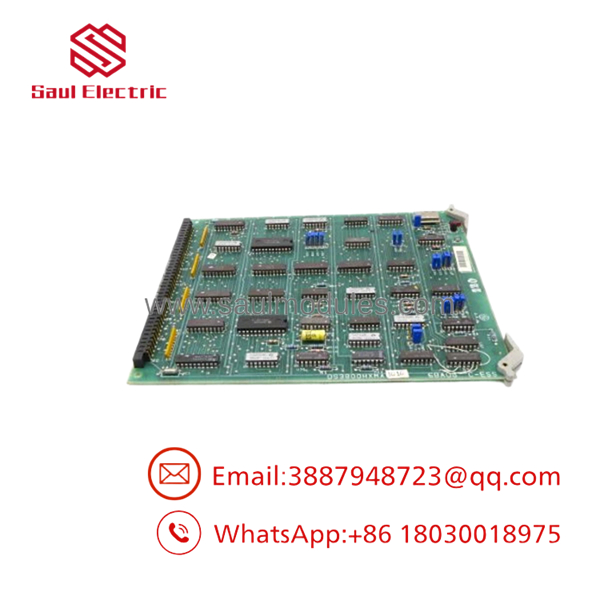

DS3800HXMA1G1G
Transparency SOP: QA & Testing
For the DS3800HXMA1G1G, a useful QA procedure should include:
- Identification check — Confirm the complete part number and all visible revision markings.
- Physical examination — Inspect the PCB, components, connectors, solder joints, traces, and mounting hardware.
- Configuration check — Document jumpers, switches, and other configurable components where applicable.
- Electrical screening — Check for shorts, abnormal resistance, damaged components, corrosion, and evidence of overheating.
- Functional verification — If appropriate test equipment is available, verify the board’s application-specific operation.
- Traceability record — Document board condition, testing performed, serial information where available, and warranty.
For New Surplus stock, request explicit confirmation that the actual PCB has not been installed, repaired, or modified.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — The full part number is not optional.
Do not source this board as simply “DS3800 HXMA.” The 1G1G configuration must be matched.
⚠️ Trap #2 — Do not copy specifications from a neighboring part number.
Legacy GE boards can have closely related designations while serving different functions.
PRO TIP: Before removing the original, photograph the board label and configuration hardware. Keep those images with the asset record.
⚠️ Trap #3 — “Tested” needs a definition.
Ask whether the board was visually inspected, electrically screened, or functionally tested in compatible equipment. Those are three different levels of verification.
Dynamic FAQ
What is the GE DS3800HXMA1G1G?
The is a GE DS3800-series industrial control PCB belonging to the HXMA board family.
What equipment uses this board?
It is associated with GE’s legacy DS3800 control hardware. Exact equipment compatibility should be verified from the installed system documentation.
Is another HXMA board a direct replacement?
Not necessarily. Match the complete part number, configuration, revision, connector arrangement, and application requirements before substitution.
What should I provide when requesting a quotation?
Provide , clear photographs of the actual board, its identification label, revision information, and the associated GE equipment or cabinet model.
How can I verify New Surplus condition?
Ask for actual-unit photographs and written confirmation of its service history. Confirm whether it has ever been installed, repaired, modified, or returned from service.
What warranty should I request?
Confirm warranty duration, DOA coverage, return conditions, and the scope of testing performed. The supplier should clearly identify whether the board is New Surplus, Refurbished, or Used.
