Description
Product Introduction
The GE DS3800HXPD1C1E (HXPD) is a specialized Microprocessor and Interface Processing Board designed for GE Speedtronic Mark IV turbine control panels and legacy DC2000 heavy industrial drive cages. Operating within the main system rack, the HXPD board functions as a high-speed coprocessing unit that offloads real-time calculation tasks, instruction decoding, and communication protocol handling from the primary system controller.
Built around onboard central processing integrated circuits, dual-port RAM buffers, and socketed firmware memory (UV-EPROMs), the HXPD module processes rapid bus arbitration requests and coordinates telemetry frames across the rack backplane. Its hardware design minimizes instruction latencies, ensuring stable real-time control execution in demanding power generation and industrial automation settings.
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | General Electric (GE) |
| Part Number | DS3800HXPD1C1E |
| Functional Acronym | HXPD |
| System Compatibility | GE Speedtronic Mark IV / DC2000 Drive Cabinets |
| Primary Function | Coprocessing, Instruction Execution, & Bus Interface Management |
| Architecture | Onboard Microprocessor, socketed EPROM memory sockets, bus interface logic |
| Interconnects | High-density gold card-edge connector fingers & top pin header strip |
| Configuration | Onboard hardware DIP switches & multi-pin jumper blocks (JP headers) |
| Mounting | Card cage slide-in installation with card ejector handles |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Application Scenarios & The “Trench” Experience
Picture this: It’s 3:15 AM at a combined-cycle power station. A gas turbine trips unexpectedly during a routine ramp-up on a “Control Core Processor Timeout” fault. Attempts to restart stall as the primary processor rack fails its handshake validation. Troubleshooting leads to an aging DS3800HXPD board—a failed bus transceiver IC locked an address line low, preventing the coprocessor from completing cycle updates across the backplane.
- Legacy Power Generation – Speedtronic Mark IV Gas & Steam Turbine Cabinets – Handles real-time coprocessing routines and high-speed data handshakes between core controller racks.
- Heavy Industry Steel & Paper Mills – GE DC2000 Main Drive Lineups – Coordinates motor control timing and system highway communications across networked drive cages.
- Chemical Processing Facilities – Industrial Control Cabinets – Manages execution of critical logic routines and sensor telemetry aggregation.
Field Case Study: A steel manufacturing facility suffered intermittent controller lockups during heavy rolling mill duty cycles. Inspection revealed thermal degradation on the HXPD card’s timing oscillator. Swapping in a bench-tested DS3800HXPD1C1E surplus board, after carefully transferring the original socketed firmware PROMs, re-established timing synchronization and restored full production without further fault trips.
Transparency SOP: Quality Assurance & Testing
Because a failing processing board can disrupt cabinet backplane communications, every DS3800HXPD1C1E follows a strict 5-step bench validation protocol before leaving the lab:
- Inbound Micro-Inspection: High-magnification optical check for thermal stress marks around IC packages, cold solder joints, damaged EPROM sockets, and gold edge-finger wear.
- Dielectric Isolation & Supply Rail Check: Resistance tests across internal DC supply rails (+5V, ±12V, ±15V) and logic ground to ensure zero short-circuit risks.
- Live Test-Rig Integration: Board is installed into a powered GE Mark IV test frame to verify initial boot-up sequences, clock generation, and bus arbitration initialization.
- Firmware & Data Bus Stress Testing: High-frequency data transfers are executed across bus channels while monitoring address/data bus lines and clock timing on an oscilloscope over 12 hours.
- Anti-Static Sealing & Protective Packaging: Board is cleaned, fitted with edge covers, vacuum-sealed in an ESD shielding bag, and packed inside custom impact-resistant foam packaging.

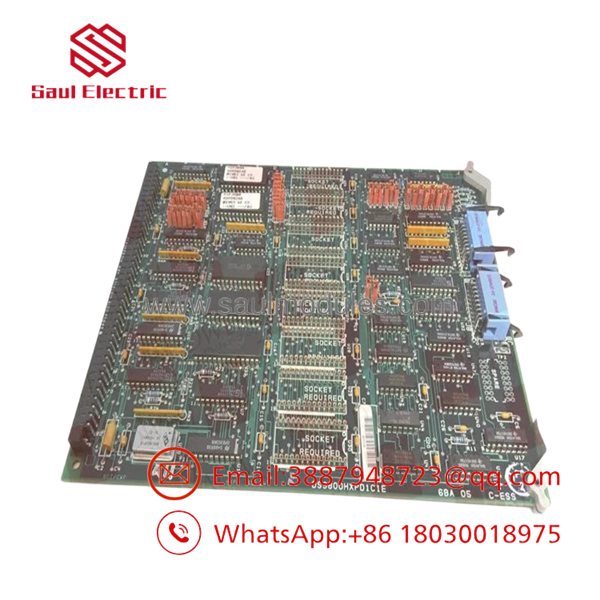

DS3800HXPD1C1E
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ 1. Transfer Socketed Firmware PROMs First: The DS3800HXPD1C1E features socketed EPROM chips containing application software and panel configuration data. You MUST carefully transfer the original EPROMs from your old board to the replacement board prior to installation, making sure chip orientation (notch direction) is correct!
❗ 2. Match Onboard Hardware Jumpers & DIP Switches: Hardware jumper arrays and DIP switches set memory address decoding, clock speeds, and bus priority modes. Take a high-resolution photo of your original board’s jumpers and switches, then replicate every setting exactly on the replacement card.
⚠️ 3. Inspect & Clean Gold Edge Connectors: Decades in an industrial cabinet cause surface oxidation on gold edge fingers. Never use abrasive sandpaper or wire pads—they strip the thin gold layer down to raw copper. Clean edge fingers exclusively using a lint-free swab with high-purity isopropyl alcohol or a rubber contact cleaner pad.
❗ 4. Never Hot-Swap the Board: Pulling or inserting the HXPD card while the rack is energized will interrupt backplane bus lines, potentially corrupting active RAM memory and causing immediate system trips across all connected cards. Always lock out cabinet power first.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the GE DS3800HXPD1C1E hot-swappable?
A: No. Hot-swapping the HXPD board will break active microprocessor bus communication, causing backplane power surges and immediate control trips. Always power down the cabinet before replacing the module.
Q: What does the “1C1E” revision suffix indicate?
A: The “1C1E” suffix denotes specific factory artwork, trace routing, and component revision levels implemented by General Electric during production. A is backward-compatible with earlier HXPD revisions, provided jumpers and socketed PROMs are configured identically.
Q: Does this board require software downloading or programming upon installation?
A: No software loading is required if you transfer your original socketed EPROM memory chips over to the replacement board. Once the PROMs and hardware jumper blocks match, the main controller will auto-detect the board during power-up.
Q: Are these units brand new OEM directly from GE?
A: GE discontinued the DS3800 product line years ago. Our inventory consists of New Surplus (unused factory spares) and Refurbished / Bench-Tested cards sourced from clean, decommissioned industrial facilities globally.
Q: What warranty coverage is included?
A: Every card comes backed by a complete 12-month operational warranty. If any functional or component failure occurs under normal operating conditions within one year, we will provide a fast replacement unit or a full credit.
