The GE DS3800NFCF1F1D is a dedicated Flow Control and Frequency Converter Board (NFCF) engineered for GE Speedtronic Mark IV turbine control racks and heavy industrial system drive cabinets. Operating as an essential signal conditioning bridge within the governing loop, this card processes pulse-train inputs from fuel flow meters, magnetic speed pickups, and liquid fuel transducer systems.
Unlike standard digital processing boards, the NFCF module specializes in high-speed pulse conditioning. It converts raw variable-frequency pulse trains coming from field sensors into stabilized DC voltage levels or digitized counter rates. These conditioned signals are fed directly across the backplane to central processor modules (such as the HMPJ card), enabling precise real-time regulation of fuel valve positioning, shaft speed monitoring, and flow ratio control on critical turbomachinery.
Key Technical Specifications
| Parameter | Specification / Value |
| Manufacturer | General Electric (GE) |
| System Architecture | Speedtronic Mark IV Turbine Control & System Drives |
| Board Functional Acronym | NFCF (Flow Control & Frequency Converter Board) |
| Primary Function | Pulse-frequency signal shaping, frequency-to-voltage conversion, & flow feedback conditioning |
| Input Channels | High-sensitivity pulse/frequency inputs from magnetic pickups & flow meters |
| Signal Processing | Low-noise operational amplifiers, pulse-shaping comparators, & precision filter networks |
| Backplane Connection | Dual multi-pin gold card-edge connectors for Mark IV card-cage insertion |
| Hardware Configuration | Physical BERG jumpers for frequency range scaling, attenuation, & filter time-constants |
| Board Generation / Prefix | DS3800 Series (Classic full-frame modular PCB architecture) |
| Operating Temperature | -30°C to +65°C Industrial Extended Range |
Application Scenarios & The “Trench” Experience
The Trench Story
It’s 1:45 AM at a gas turbine peaker station. Frame 7 Gas Turbine #1 trips unexpectedly during a rapid load ramp, throwing a “Liquid Fuel Flow Tracking Error” alarm across the Mark IV panel. Troubleshooting reveals that the turbine’s flow divider pickup signal is clean at the junction box, but the feedback value inside the control core is erratically dropping to zero. The culprit is a failed precision filter capacitor and degraded operational amplifier on the aging NFCF board, causing high-frequency noise corruption on the fuel feedback loop. Swapping in a pre-tested DS3800NFCF1F1D board and matching the original frequency scaling jumpers restores smooth flow tracking and allows the unit to re-synchronize to the grid before morning peak hours.
Industrial Applications
- Liquid Fuel Flow Regulation: Conditioning flow divider pulse signals on GE Frame 5, 6, 7, and 9 gas turbines to maintain exact fuel metering.
- Turbine Speed Feedback: Processing magnetic pickup pulse trains from shaft speed sensors for primary speed governing and overspeed protection loops.
- Heavy Duty Industrial VFDs: Converting motor speed feedback pulse signals in large rolling mill and drive systems.
- Chemical & Process Metering: Conditioning pulse-based flow meter outputs in heavy industrial fluid mixing processes.

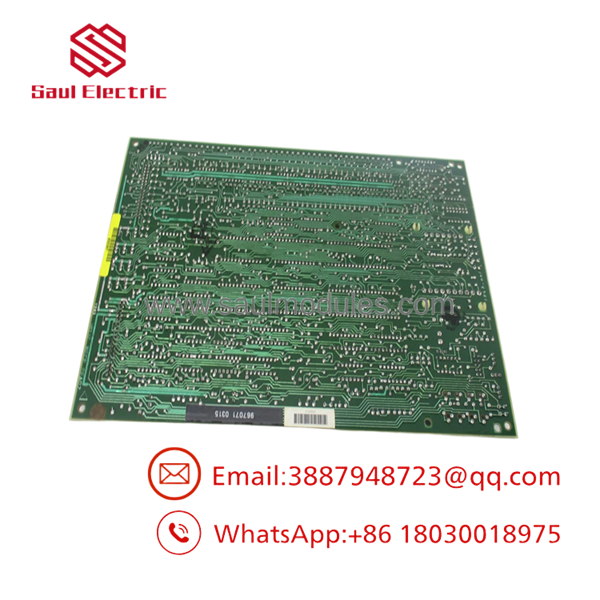

DS3800NFCF1F1D

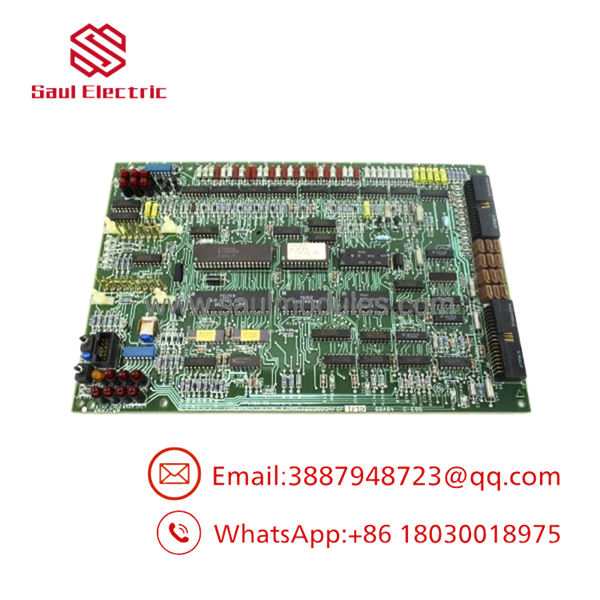

DS3800NFCF1F1D
Transparency SOP: Quality Assurance & Testing
Every legacy module undergoes a strict, multi-stage reconditioning and dynamic signal validation protocol before dispatch:
- Inbound Physical Inspection: Detailed optical inspection under magnification for thermal trace fatigue, component aging, damaged jumper pins, and gold edge-connector wear.
- Ultrasonic ESD Cleaning: Deep solvent wash to eliminate airborne oil haze, carbon dust, and industrial film accumulated over decades of enclosure service.
- Frequency Generator Signal Testing: Injecting variable-frequency sine and square wave signals across all input channels to verify linear frequency-to-voltage conversion accuracy using a calibrated precision multimeter and oscilloscope.
- Signal Noise & Ripple Audit: Monitoring output rails for unwanted AC ripple or high-frequency distortion across the full rated input frequency spectrum.
- Live Mark IV Rack Execution: Installing the board into an active Speedtronic Mark IV test cage to verify clean backplane bus handshaking and zero computational latency under load.
- Jumper Audit & ESD Packaging: Documenting all physical BERG jumper settings before vacuum-sealing the board in static-shielding ESD packaging.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ 1. Frequency Scaling BERG Jumpers
The DS3800NFCF1F1D utilizes physical BERG jumper blocks to set frequency input ranges, signal attenuation levels, and filter time-constants according to the specific flow meter or speed pickup installed on your turbine. Installing a replacement board without replicating the jumper settings from your original card will cause incorrect flow feedback readings, leading to severe fuel hunting, flameouts, or immediate overspeed/underspeed trips.
Fix: Take a high-resolution photograph of every jumper block on your failed card before removal, and replicate every jumper position line-for-line on the replacement board.
❗ 2. Card-Edge Contact Cleaning
Because this card processes low-amplitude frequency signals, oxidation or fine dust on the backplane gold card-edge connectors can attenuate the incoming pulse voltage, resulting in missed pulses or signal dropouts.
Fix: Clean the card-edge contacts with a clean pencil eraser or isopropyl alcohol swab before seating the card. Avoid abrasive pads like Scotch-Brite, which strip the thin gold plating.
⚠️ 3. Revision Suffix Parity (1F1D)
The trailing suffix 1F1D denotes late-generation artwork revisions, including upgraded low-noise op-amps and tighter-tolerance filter capacitors compared to earlier 1A or 1B variants. Matching the full alphanumeric code ensures component parity and prevents feedback phase delays in tight control loops.
Fix: Cross-reference the complete part number stamped on the edge margin of your physical PCB before ordering.
Frequently Asked Questions (FAQ)
Q: Can I hot-swap the DS3800NFCF1F1D card while the Mark IV system is running?
A: No. Pulling or inserting a flow feedback board live can disrupt backplane signal buses, cause sudden control loop step-changes, or instantly trip the turbine. Always isolate cabinet control power prior to servicing.
Q: What is the most common failure mode on this module?
A: Long-term continuous thermal cycling inside control cabinets causes drift in precision operational amplifiers and degrades electrolytic filter capacitors. This leads to signal attenuation, noise susceptibility, or nonlinear frequency conversion.
Q: Does this card require firmware downloads or software flashing after replacement?
A: No. The DS3800NFCF1F1D is a pure hardware-level signal conditioning card. It operates using discrete analog circuits, comparators, operational amplifiers, and physical BERG jumpers—no software or firmware configuration is required.
Q: Why does my control system report “Flow Feedback Error” immediately after swapping boards?
A: This is almost always caused by mismatched BERG jumper configurations (incorrect frequency range selection) or an unseated card-edge connector in the rack cage. Double-check all jumpers against your original board and ensure the card is seated firmly into its guide rails.
Q: What warranty is supplied with your surplus and refurbished stock?
A: Every DS3800NFCF1F1D board shipped carries a full 12-month replacement warranty. If a module fails under standard operating conditions within one year of installation, it is replaced directly from stock.
