Description
Product Introduction
The GE DS3800NGDC is a Ground Detector and DC Power Isolation Board (NGDC) designed for GE Speedtronic Mark IV turbine control enclosures and heavy-duty industrial system drive cabinets. Serving as an essential electrical safety guard within the control rack, this module continuously monitors the integrity of ungrounded DC power buses (such as 24VDC, 48VDC, and 125VDC station battery systems) against chassis ground.
Unlike standard logic boards that process control algorithms, the NGDC card specializes in differential ground-fault detection. By constantly balancing line-to-ground impedances across floating DC rails, the card senses minute leakage currents caused by insulation breakdown in field wiring or solenoids. Detecting these earth faults early prevents dual-ground short circuits from tripping critical turbine safety interlocks or corrupting backplane communication buses.
Key Technical Specifications
| Parameter | Specification / Value |
| Manufacturer | General Electric (GE) |
| System Architecture | Speedtronic Mark IV Turbine Control & System Drives |
| Board Functional Acronym | NGDC (Ground Detector / DC Power Conditioning Board) |
| Monitored Voltage Loops | Floating 24VDC, 48VDC, and 125VDC station battery & field contact supplies |
| Detection Mechanism | Differential operational amplifier network with precision voltage reference bridges |
| Isolation Barrier | Onboard optocouplers ensuring complete galvano-isolation between DC bus and backplane logic |
| Backplane Connection | Dual multi-pin gold card-edge connectors for Mark IV rack slot insertion |
| Hardware Configuration | Physical BERG jumpers for ground-fault sensitivity limits and alarm latching behavior |
| Diagnostic Elements | Front-edge LED status indicators (Positive Ground, Negative Ground, Power OK) |
| Operating Temperature | -30°C to +65°C Industrial Extended Range |
Application Scenarios & The “Trench” Experience
The Trench Story
It’s 4:00 AM following heavy rain at a combined-cycle power station. Frame 7 Gas Turbine #3 throws a nuisance “125VDC Station Battery Ground Fault” warning on the Mark IV HMI, accompanied by intermittent trip alarms from field pressure switches. Instrument technicians verify that field junction boxes are dry, but the fault indication remains latched on the panel. Troubleshooting reveals that high ambient humidity degraded a aging sensing resistor on the original NGDC board inside the rack, causing a false ground-fault trip signal to lock up the alarm bus. Replacing the faulty card with a pre-tested DS3800NGDC module—and setting the sensitivity jumpers to match site specs—instantly clears the false alarm and restores clean ground-fault monitoring before the morning generation ramp.
Industrial Applications
- Gas Turbine DC Bus Monitoring: Supervising 125VDC station battery loops supplying emergency oil pumps and field contact solenoids on GE Frame 5, 6, 7, and 9 units.
- Steam Turbine Safety Interlocks: Detecting ground faults on floating field contact supplies to prevent inadvertent turbine trips or lockouts.
- Heavy Duty Industrial VFDs: Monitoring internal DC bus isolation on large rolling mill motor drive cabinets.
- Excitation System Cubicles: Guarding field winding and excitation control power supplies against earth faults.

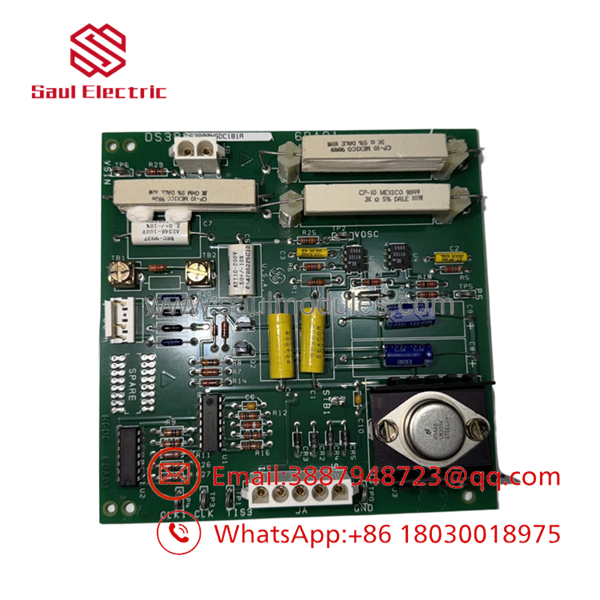

DS3800NGDC
Transparency SOP: Quality Assurance & Testing
Every legacy module undergoes a strict, multi-stage reconditioning and dynamic isolation validation protocol prior to dispatch:
- Inbound Physical Inspection: Detailed optical inspection under magnification for thermal trace discoloration, aging precision resistors, damaged jumper pins, and gold edge-connector wear.
- Ultrasonic ESD Cleaning: Deep solvent wash to eliminate airborne oil haze, carbon dust, and industrial film accumulated over decades of enclosure service.
- High-Voltage Dielectric & Isolation Test: Injecting test voltages across monitoring channels and chassis ground to verify optocoupler dielectric barriers and leakage limits.
- Differential Ground Detection Audit: Simulating controlled positive-to-ground and negative-to-ground fault resistances using variable decade boxes to verify exact trip threshold accuracy.
- Live Mark IV Rack Execution: Installing the card into an active Speedtronic Mark IV test cage to verify backplane alarm handshaking and LED status latching under real-time load.
- Jumper Audit & ESD Packaging: Documenting all physical BERG jumper settings before vacuum-sealing the board in static-shielding ESD packaging.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ 1. Fault Sensitivity & Latching BERG Jumpers
The DS3800NGDC utilizes physical BERG jumper blocks to configure ground-fault resistance sensitivity thresholds (e.g., 5kΩ vs. 10kΩ trip points) and select between momentary or auto-latching alarm outputs. Installing a replacement board without replicating the jumper settings from your original card will cause either false ground alarms or a dangerous failure to report real field earth faults.
Fix: Take a high-resolution photograph of every jumper block on your failed card before removal, and duplicate every jumper position line-for-line on the replacement board.
❗ 2. True Field Ground vs. Board Ground Faults
Before replacing an NGDC board, verify whether the ground fault is truly inside the rack or out in the plant. A true field ground (e.g., a shorted solenoid coil or wet conduit) will immediately light the ground LED on a new board as well.
Fix: Disconnect field terminal blocks temporarily. If the ground LED on the NGDC board turns off, the fault is in the field wiring. If the LED stays lit with field wiring disconnected, the NGDC board or backplane is faulty.
⚠️ 3. Card-Edge Contact Maintenance
Because ground detection relies on precise micro-amp differential leakage currents, oxidation or fine dust on the backplane gold card-edge connectors can cause false voltage drift readings.
Fix: Clean the card-edge contacts gently with an isopropyl alcohol swab or a clean pencil eraser before seating the card. Avoid abrasive pads like Scotch-Brite, which strip the thin gold plating.
Frequently Asked Questions (FAQ)
Q: Can I hot-swap the DS3800NGDC card while the Mark IV system is under power?
A: No. Pulling or inserting a ground detector board live can disrupt backplane alarm buses, cause sudden voltage spikes across reference lines, or trigger false turbine trips. Always isolate cabinet control power prior to servicing.
Q: What is the main cause of failure on this module?
A: Long-term continuous voltage stress and thermal cycling inside control cabinets cause value drift in precision divider resistors and optical decay in onboard optocouplers, leading to false ground detection or loss of sensitivity.
Q: Does this card require software flashing or firmware loading after replacement?
A: No. The DS3800NGDC is a pure hardware-level monitoring and conditioning board. It operates using analog comparators, optocouplers, voltage reference circuits, and physical BERG jumpers—no software or firmware configuration is required.
Q: Why does the Ground Fault LED remain lit immediately after swapping the board?
A: This indicates either an active, uncleared ground fault in the field wiring/DC battery loop, mismatched BERG jumper sensitivity settings, or an unseated card-edge connector in the rack cage. Disconnect field wiring to isolate the root cause.
Q: What warranty is supplied with your surplus and refurbished stock?
A: Every DS3800NGDC board shipped carries a full 12-month replacement warranty. If a module fails under standard operating conditions within one year of installation, it is replaced directly from stock.
