Description
Product Introduction & Engineering Value
The GE DS3800NGDD has a specific job: field-ground detection. It is not simply a generic DS3800 control PCB. Available parts references associate the board with GE’s Mark IV / EX2000 turbine-control architecture, where monitoring field circuitry for ground conditions is an important diagnostic and protection function.
For a maintenance department supporting legacy turbine controls, the practical issue is replacement accuracy. The DS3800 family contains many specialized boards, including ground-detector, firing, thermocouple, vibration, and power-supply cards. The exact DS3800NGDD identification should therefore be retained throughout procurement and maintenance records.
Technical Specifications
- Manufacturer: General Electric (GE)
- Part Number: DS3800NGDD
- Product Family: DS3800
- Control Platform: Mark IV / Speedtronic
- Associated System: EX2000
- Product Type: Field Ground Detector Card
- Primary Function: Field-ground detection
- Application: Turbine-control system diagnostics and protection
- Installation: Compatible GE Mark IV/EX2000 control equipment
- Lifecycle: Legacy hardware
- Replacement Strategy: Exact part-number matching
- System Dependency: Host-system specific
A caution is warranted here. Public secondary-market documentation is inconsistent: some listings call the DS3800NGDD a Field Ground Detector, while another parts catalog describes it as a card associated with a DS3820NGDB module. For procurement, the physical board marking and applicable GE documentation should take precedence over a generic reseller description.
Field Application & the “Trench” Experience
A turbine maintenance team is troubleshooting an intermittent ground-related indication on an aging Mark IV system. The first instinct is to replace the suspected detector card. An experienced technician takes a different approach.
Before changing the DS3800NGDD, the team records the existing card identification, checks the associated field circuitry, and documents the cabinet wiring. The replacement card is then compared against the original and inspected before installation.
That matters because replacing a detector card without investigating the field circuit can simply move the symptom downstream. If an actual insulation or wiring fault exists, a new board will not cure the underlying problem.
Specific application scenarios include:
- Mark IV turbine field-ground monitoring during planned maintenance.
- EX2000 excitation-system troubleshooting where ground detection is part of the diagnostic chain.
- Legacy turbine-control spare provisioning for facilities maintaining DS3800-series electronics.

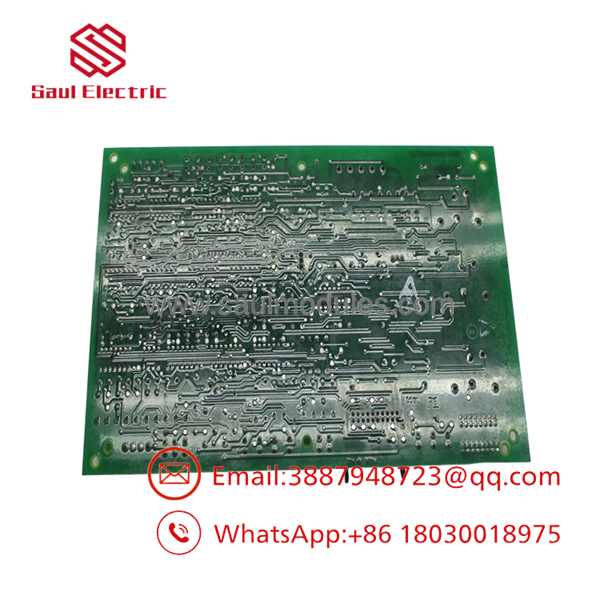

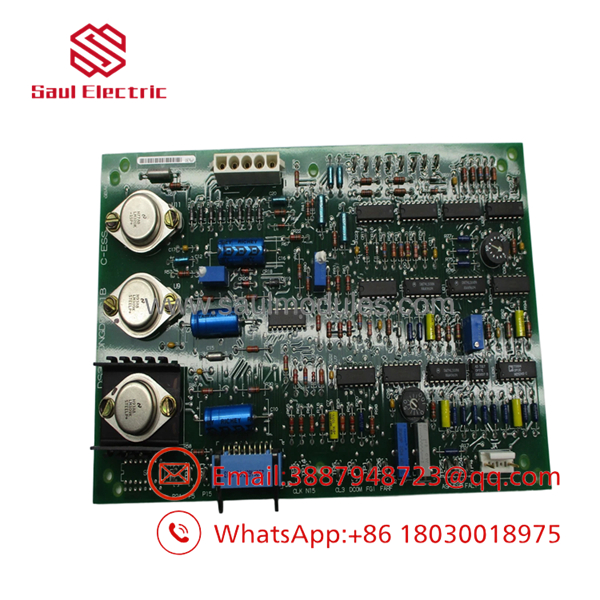

DS3800NGDD
DS3800NGDD
Transparency SOP: QA & Testing
For DS3800NGDD stock, QA should concentrate on both board condition and functional suitability.
1. Identification
Verify the complete GE part number on the actual PCB and photograph the identification markings.
2. Physical inspection
Check the PCB surface, connectors, components, solder joints, edge contacts, mounting hardware, and signs of previous repair.
3. Environmental screening
Look for corrosion, contamination, moisture exposure, discoloration, cracked components, and overheating.
4. Configuration verification
Compare the replacement against the installed DS3800NGDD, including connector and mounting arrangements.
5. Functional testing
Where compatible Mark IV/EX2000 test equipment and approved procedures are available, perform functional checks appropriate to the ground-detection circuit.
6. Documentation
Record the actual unit tested, condition, test status, photographs, and material classification.
For New Surplus, confirm that the board is unused and determine whether it has ever been installed or energized. For Refurbished, request the actual repair and test scope. One current reseller listing, for example, identifies refurbished DS3800NGDD stock and describes component-level repair and QA testing services.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Don’t replace the detector before checking the field circuit.
A genuine ground fault, insulation problem, wiring issue, or field-device problem can produce symptoms that look like a detector failure.
⚠️ Trap #2 — Don’t confuse DS3800NGDD with DS3800NGDC.
Parts references separately identify the NGDC and NGDD variants. They should not be treated as interchangeable without engineering verification.
⚠️ Trap #3 — Watch the terminology.
Some secondary-market listings use different descriptions for this part. One source calls it a Field Ground Detector, while another associates it with the DS3820NGDB module. Verify the actual board marking and system documentation before ordering.
PRO TIP: Before removing the original card, document the alarm state, associated field wiring, connector positions, and any diagnostic measurements. That gives the commissioning team a baseline after replacement.
Dynamic FAQ
Q: What is the GE DS3800NGDD?
A: The DS3800NGDD is identified as a Field Ground Detector Card associated with GE Mark IV/EX2000 control equipment.
Q: What does the DS3800NGDD monitor?
A: Its stated function is detecting ground conditions associated with field circuitry in the applicable control system.
Q: Is the DS3800NGDD interchangeable with the DS3800NGDC?
A: No automatic substitution should be made. Both are separately identified parts, and the exact system configuration and board function must be verified.
Q: What should I check before ordering a replacement?
A: Confirm the complete marking, photograph the installed PCB, identify the host Mark IV/EX2000 equipment, and document the field-ground circuit associated with the board.
Q: How do I verify New Surplus authenticity?
A: Request photographs of the actual unit, confirmation that it is unused, information about whether it has ever been energized, and the supplier’s inspection/testing documentation.
Q: What about Refurbished units and warranty?
A: Ask for the refurbishment scope, functional-test details, actual-unit photographs, and written warranty terms. Warranty periods vary by supplier; one current reseller advertises a one-year warranty on its DS3800NGDD repair service.
