Product Introduction
The GE DS3800NGRC1H1F (NGRC) is a specialized Ground Fault and Relay Control Board designed for GE Speedtronic Mark IV turbine control panels and high-capacity DC2000 drive systems. Positioned inside the primary control rack, the NGRC card serves as a vital hardware protection module, continuously sensing differential earth leakage currents across power supply rails and motor field circuits.
Utilizing low-drift operational amplifiers and precision voltage comparators, the NGRC board rapidly identifies ungrounded DC or AC bus leakage before insulation breakdown causes flashovers or catastrophic component destruction. Upon detecting an out-of-spec ground fault, it actuates onboard relay contacts to signal trip alarms directly to the master processor or safety lockout loop.
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | General Electric (GE) |
| Part Number | DS3800NGRC1H1F |
| Functional Acronym | NGRC |
| System Compatibility | GE Speedtronic Mark IV / DC2000 Drive Cabinets |
| Primary Function | Ground Fault Isolation Monitoring & Relay Protection Triggering |
| Circuit Topology | Precision current sense differential amplifiers & heavy-duty relay drivers |
| Interconnects | Gold-plated card-edge connector fingers + top-edge pin headers |
| Diagnostics | Onboard status LEDs for power rail health & ground fault trip detection |
| Configuration | Onboard hardware jumper blocks (JP headers) for trip sensitivity adjustment |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Application Scenarios & The “Trench” Experience
Picture this: It’s 2:00 AM on a rainy night. A critical processing drive trips unexpectedly on a hard “Ground Fault Lockout.” Maintenance techs check the motor leads—no insulation breakdown on the stator windings. Upon inspecting the control cabinet, they trace the fault to an aging NGRC board: a failed sensing capacitor on the ground detection loop drifted, causing phantom trip signals that halted the entire line without an actual field fault.
- Legacy Power Generation – Speedtronic Mark IV Turbine Control Cabinets – Monitors excitation and logic power supply ground isolation to prevent false turbine trips.
- Heavy Industry Metals & Paper Mills – GE DC2000 Main Drive Lineups – Detects motor armature and field winding ground leakage during high-vibration operation.
- Chemical & Refining Facilities – Industrial Control Cabinets – Maintains continuous ground fault detection across long field cable runs in humid environments.
Field Case Study: A steel manufacturing facility experienced recurring random drive lockouts during high-humidity shifts. Isolating the issue revealed thermal degradation on the ground sense line of the existing NGRC board. Swapping in a bench-tested DS3800NGRC1H1F surplus card, matched to the site’s original jumper settings, restored precise fault threshold monitoring and eliminated phantom trips.
Transparency SOP: Quality Assurance & Testing
Because a failing protection card can cause false plant trips or leave hardware unprotected during a true ground fault, every DS3800NGRC1H1F follows a strict 5-step bench validation protocol before shipping:
- Inbound Micro-Inspection: High-magnification optical audit checking for trace overheating, cold solder joints, relay contact pitting, and gold edge-finger wear.
- Dielectric Isolation & Resistance Check: Resistance tests across internal DC supply rails (+5V, ±15V) and chassis ground to verify absolute isolation baseline.
- Live Test-Rig Integration: Board is installed into a powered GE Mark IV test frame to verify initial boot-up sequences, LED power status, and backplane power distribution.
- Ground Leakage Ramp Testing: Micro-amp ground fault leakage currents are injected across sensing channels while recording relay actuation speed and trip threshold repeatability over 12 hours.
- Anti-Static Sealing & Protective Packaging: Board is cleaned, fitted with edge covers, vacuum-sealed in an ESD shielding bag, and packed inside custom impact-resistant foam packaging.

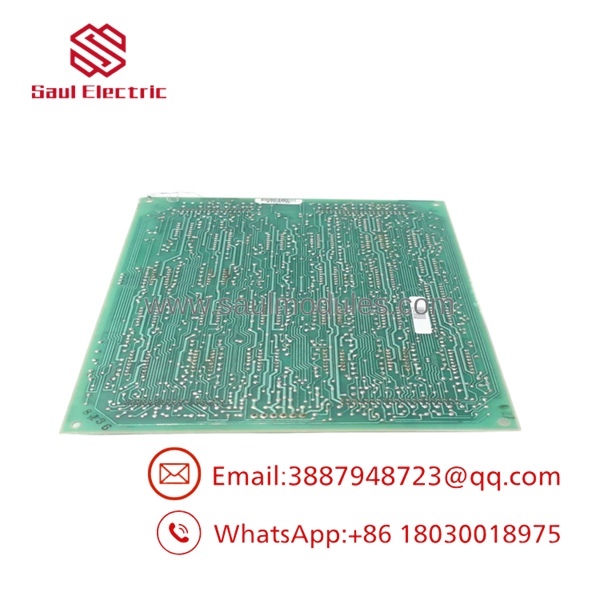

DS3800NGRC1H1F

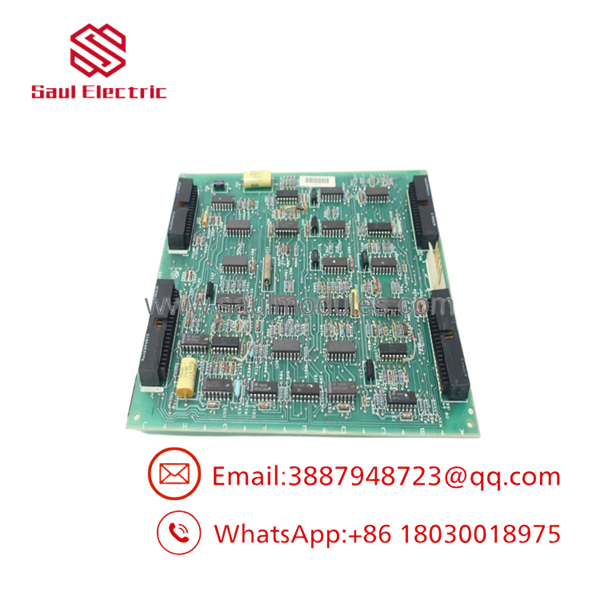

DS3800NGRC1H1F
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ 1. Match Sensitivity Jumpers Before Power-Up: The DS3800NGRC board uses onboard jumper blocks to configure ground fault trip current thresholds and trip delays. Always take a high-resolution photo of your original board’s jumper block configuration and replicate every pin setting on the replacement card before powering up!
❗ 2. Verify True Ground vs. Board Fault: If the replacement board trips immediately upon installation, do not assume the board is defective. Use a high-resistance megohmmeter (Megger) on field wiring to rule out actual low-resistance ground shorts in cabinet wiring or motor windings before resetting.
⚠️ 3. Inspect & Clean Gold Edge Connectors: Decades in an industrial cabinet cause surface oxidation on gold edge fingers. Never use abrasive sandpaper or wire pads—they strip the thin gold layer down to raw copper. Clean edge fingers exclusively using a lint-free swab with high-purity isopropyl alcohol or a rubber contact cleaner pad.
❗ 4. Never Hot-Swap the Board: Pulling or inserting the NGRC card while the rack is energized will interrupt safety monitoring loops, potentially triggering an uncontrolled trip across connected processor cards. Always lock out cabinet power first.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the GE DS3800NGRC1H1F hot-swappable?
A: No. Hot-swapping the NGRC board will break active ground protection lines, causing backplane power surges and immediate control trips. Always power down the cabinet before replacing the module.
Q: What does the “1H1F” revision suffix indicate?
A: The “1H1F” suffix denotes specific factory artwork, trace routing, and component revision levels implemented by General Electric during production. A DS3800NGRC1H1F is backward-compatible with earlier NGRC revisions, provided hardware jumpers are configured identically.
Q: Does this board require software downloading or programming upon installation?
A: No software loading is required. The NGRC operates strictly at the analog and logic hardware layer. All configuration is handled through physical onboard jumpers and hardware signal scaling.
Q: Are these units brand new OEM directly from GE?
A: GE discontinued the DS3800 product line years ago. Our inventory consists of New Surplus (unused factory spares) and Refurbished / Bench-Tested cards sourced from clean, decommissioned industrial facilities globally.
Q: What warranty coverage is included?
A: Every card comes backed by a complete 12-month operational warranty. If any functional or component failure occurs under normal operating conditions within one year, we will provide a fast replacement unit or a full credit.
