Description
Product Introduction & Engineering Value
The GE DS3800NHVD1E1B is an NHVD-series circuit board from GE’s legacy DS3800 control hardware family. It is primarily relevant to maintenance teams keeping older GE automation and control equipment in service where an exact board replacement is required.
With DS3800 hardware, part-number discipline is essential. A board that looks similar may have a different circuit function or configuration. Before installation, verify the complete DS3800NHVD1E1B identifier, configuration markings, connectors, rack position, and host-system documentation.
Technical Specifications
Manufacturer: General Electric (GE)
Product Family: DS3800
Board Designation: NHVD
Part Number: DS3800NHVD1E1B
Board Type: Industrial printed circuit / control interface board
Configuration: 1E1B
Functional Category: Control/interface electronics
System Context: Legacy GE industrial control equipment
Installation: DS3800-compatible equipment rack or control cabinet
Lifecycle: Legacy hardware
Replacement Strategy: Exact part-number matching recommended
Technical Documentation: Use equipment-specific GE documentation for electrical and interface specifications
Technical caution: Detailed authoritative specifications for the exact DS3800NHVD1E1B configuration are limited in public documentation. Specific voltage levels, signal assignments, connector pinouts, I/O characteristics, and environmental ratings should not be guessed from the model number. Verify them against the original GE manuals or system drawings.
Field Application & the “Trench” Experience
A maintenance crew is troubleshooting an aging GE-controlled machine that has begun generating intermittent control alarms. The suspect PCB is identified as DS3800NHVD1E1B.
The replacement is available, but the technician first establishes a baseline. The original board is photographed, its rack location is documented, and every visible configuration marking is recorded. The spare is then compared against the removed board before installation.
Once the replacement is fitted, the team does not stop at a cabinet-level power check. The affected machine sequence is exercised and the associated field signals are verified. That is how a board replacement becomes a controlled maintenance task rather than a trial-and-error exercise.
Specific application scenarios
- Legacy GE machine-control cabinets: Maintaining DS3800 electronics in long-running production equipment.
- Industrial process-control equipment: Supporting obsolete GE control hardware during planned shutdowns.
- Dedicated machinery and CNC systems: Maintaining a verified NHVD spare for emergency board replacement.

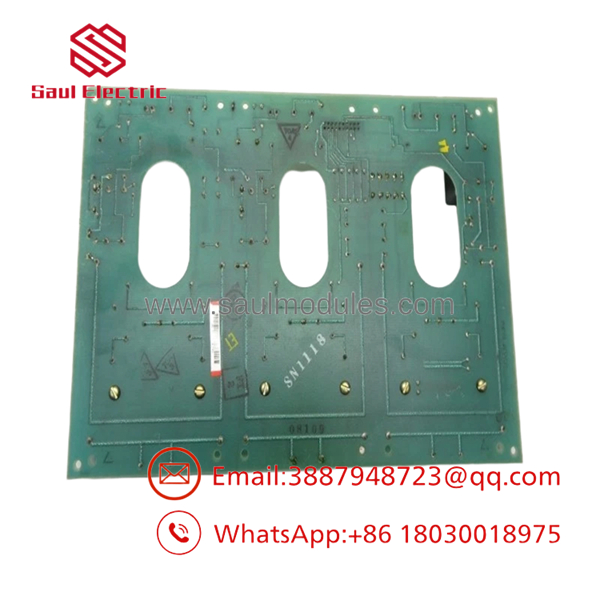

DS3800NHVD1E1B

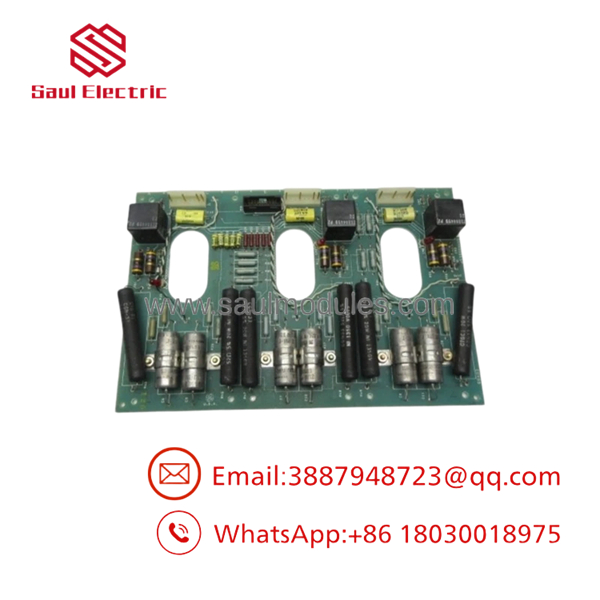

DS3800NHVD1E1B
Transparency SOP: QA & Testing
For New Surplus inventory, the inspection process should include:
- Part-number verification — Confirm the actual PCB is marked DS3800NHVD1E1B.
- Visual examination — Inspect components, connectors, edge contacts, solder joints, and PCB surfaces.
- Configuration verification — Compare jumpers, switches, daughterboards, and revision markings with the original.
- Condition screening — Check for corrosion, contamination, physical damage, or evidence of prior installation.
- Functional testing — When appropriate test equipment or a compatible host system is available, verify operation under controlled conditions.
- Documentation — Record the inspection and test status against the inventory part number.
- ESD protection — Use anti-static packaging throughout handling and shipment.
For refurbished stock, request a specific description of repairs and functional testing rather than relying on the term “refurbished.”
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Assuming the NHVD designation is enough
It is not. Match the complete part number.
⚠️ Trap #2 — Mixing configuration variants
The 1E1B configuration should be treated as part of the identification. Do not substitute a different suffix without technical verification.
PRO TIP: Keep the original board until the replacement has been inspected and accepted. It provides a physical reference for markings, connectors, and configuration hardware.
⚠️ Trap #3 — Forgetting ESD precautions
Legacy boards contain components that can be damaged by static discharge even when there is no visible evidence of damage. Use a grounded ESD workstation and suitable anti-static packaging.
Dynamic FAQ
What is the GE ?
The is a GE NHVD-series printed circuit board belonging to the legacy DS3800 industrial control hardware family.
What is the NHVD board’s exact function?
The NHVD designation identifies the board type, but detailed public information for this exact configuration is limited. The precise circuit function and signal assignments should be established from the host-system documentation.
Can another NHVD board replace it?
Not automatically. Confirm the full part number, configuration, revision, connector arrangement, and system requirements before substitution.
What information should I send when requesting this board?
Provide exactly as marked, plus photographs of the actual board, visible configuration markings, host equipment details, and the installed rack position if known.
How can I verify New Surplus authenticity?
Ask for photographs of the specific inventory unit and confirmation that it is unused. For critical equipment, request inspection and functional-test documentation.
What warranty should I request?
Confirm the warranty period, test coverage, DOA policy, return conditions, and commissioning support. Those terms are important when sourcing obsolete GE electronics.
