GE DS3800NHVE Speedtronic Mark IV High Voltage Board

Description

Product Introduction

The GE DS3800NHVE serves as a high-voltage interface card engineered for legacy General Electric Speedtronic Mark IV turbine management architectures. Slotted into the core processor card cage, this module handles high-potential inputs and outputs, attenuating and isolating elevated field voltage levels down to logic-level signals safe for the central processing backplane.

In our field experience, the DS3800NHVE is essential for protecting sensitive processing logic from field-induced transients. By incorporating high-dielectric isolation barriers, surge suppression components, and opto-isolated signal pathways, it keeps dangerous ground potential rises and field voltage spikes from penetrating the central Mark IV backplane bus.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture a critical situation at a municipal power facility: a storm rolls through, and a high-voltage field feedback circuit takes an indirect surge. Suddenly, multiple digital input channels drop offline, locking out the turbine start permissive. When you pull the board, you find blown isolation diodes on the high-voltage front end of an old NHVE module—the card did its job and sacrificed itself to save the expensive processor card right next to it in the rack.

• Legacy Power Generation – GE Frame 5, 6, and 7 Gas Turbines – Conditions high-voltage status inputs and field feedback loops for Mark IV processor racks.
• Steam Turbine Controls – High-Pressure Valve Actuation Loops – Interfaces elevated-voltage limit switch and solenoid feedback circuits with logic-level racks.
• Industrial Cogeneration Plants – Balance-of-Plant Interfacing – Provides heavy-duty surge isolation for field cable runs passing near high-voltage motor control centers (MCCs).

During a forced outage at an industrial manufacturing plant, a ground fault on a 125VDC field feedback line destroyed two input channels on an active high-voltage interface card, halting plant production. We dispatched a fully tested DS3800NHVE replacement board from our surplus inventory via express overnight courier. The plant’s instrument technician set the hardware jumpers, cleaned the backplane connector, slotted the replacement card into the rack, and restored the turbine to full operation before the morning shift.

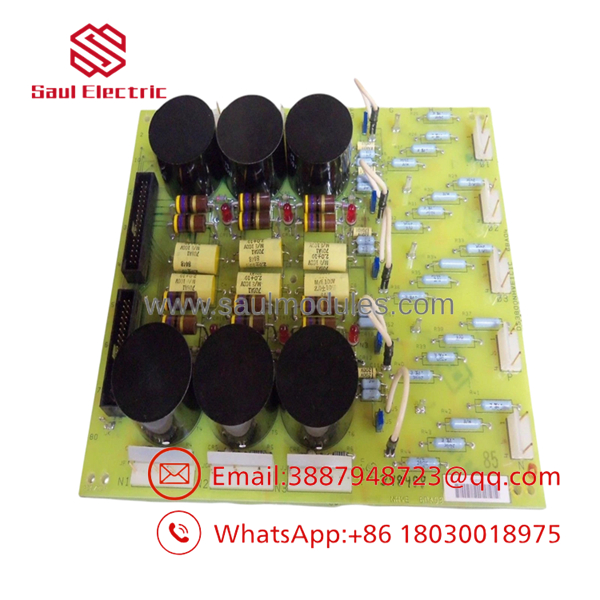

DS3800NHVE

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual GE Mark IV racks.

1. Inbound Visual Inspection: Microscopic audit checking for thermal discoloration, blown MOVs or isolation diodes, carbon tracking, and edge-connector wear.
2. Gold-Finger Contact Refurbishment: Contact fingers are cleaned, micro-polished, and verified for uniform gold plating thickness to ensure low contact resistance.
3. High-Voltage Isolation Checks: Megger/dielectric insulation testing across isolated signal barriers to confirm zero leakage between high-voltage field terminals and backplane logic pins.
4. Live Card Cage Thermal Soak: Installed in a live Mark IV simulator rack under elevated operating temperatures to verify signal integrity under thermal stress.
5. Anti-Static Packaging: Sealed in static-shielding bags with fresh desiccant prior to placement in custom shock-absorbing foam boxes.

The Veteran’s Tech Trap Guide

• ⚠️ Investigate the Field Short Before Installing the New Card: If high-voltage field inputs blew out your old DS3800NHVE board, measure field-to-ground voltage and trace line impedances before slotting in the new board. An unmitigated direct short on a 125VDC line will instantly destroy the front-end components on your replacement module.
• ❗ Never Hot-Swap in a Mark IV Card Cage: The Speedtronic Mark IV card cage backplane does NOT support hot-swapping. Inserting or pulling this board while the rack is energized can arc the gold-finger edge contacts and cause catastrophic voltage spikes across adjacent cards.
• ⚠️ Match Hardware Jumpers and Dip Switches: The DS3800NHVE contains hardware configuration jumpers for voltage range selection and channel routing. Document and duplicate every jumper position from your old card onto the replacement card prior to installation.
• ❗ Clean the Backplane Edge Connector Slot: Card cage slots that have sat in service for decades accumulate fine industrial dust and oil film. Clean the slot connectors with electrical contact cleaner and a card-cleaning pad before seating the new module.

Frequently Asked Questions

• Q: Is the GE DS3800NHVE hot-swappable?
  • A: No. Always power down the Mark IV card cage before pulling or inserting this module to prevent backplane arcing and system fault trips.
• Q: What is the primary function of the DS3800NHVE board?
  • A: It functions as a high-voltage interface and attenuation card, safely conditioning higher-voltage field feedback signals for processing by low-voltage logic on the Mark IV backplane.
• Q: What should I do if my original board has a specific suffix revision (e.g., DS3800NHVE1B1B)?
  • A: Suffix revisions track artwork and component updates made by GE over time. Later revision boards are generally backward compatible with earlier versions, provided you verify and replicate all hardware jumper settings.
• Q: Do I need to load software or flash firmware when replacing this board?
  • A: No. The DS3800NHVE relies entirely on hardwired analog and digital isolation circuitry. No software loading or PROM flashing is required—simply set the hardware jumpers to match your original board.
• Q: What warranty comes with this surplus module?
  • A: We back all New Surplus and Refurbished GE Mark IV inventory with a full 12-month replacement warranty.
• Q: Why purchase surplus Mark IV hardware instead of upgrading the entire system?
  • A: A complete control system retrofit requires massive capital expense, extensive cabinet rewiring, and weeks of planned downtime. Sourcing tested surplus hardware lets you maintain your existing, reliable turbomachinery controls with zero logic reprogramming.
