Description
Product Introduction
The GE DS3800NLCA1E1E (NLCA) is a specialized Logic Limiter and Current Control Board engineered for GE Speedtronic Mark IV turbine control racks and DC2000 heavy industrial drive systems. Operating within the main control cage, the NLCA acts as an hardware-level safety boundary, continuously evaluating feedback current and torque signals against pre-set threshold limits to prevent electrical overloads and mechanical shaft over-torque conditions.
Featuring high-speed operational amplifiers, comparator networks, and an auxiliary daughtercard mounting header, the NLCA board directly clamps firing-circuit reference signals when field currents exceed operational limits. Its hardware-based response ensures near-instantaneous feedback throttling—protecting expensive thyristor (SCR) power bridges and turbine actuators well before slower software alarms can trigger a shutdown.
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | General Electric (GE) |
| Part Number | DS3800NLCA1E1E |
| Functional Acronym | NLCA |
| System Compatibility | GE Speedtronic Mark IV / DC2000 Drive Cabinets |
| Primary Function | Current Limiting, Torque/Power Boundary Clamping |
| Architecture | Analog comparator circuits, precision operational amplifiers, daughtercard expansion socket |
| Interconnects | Gold-plated card-edge connector fingers + top-edge pin header |
| Adjustment Features | Onboard multi-turn potentiometers for limit trip-point calibration |
| Configuration | Hardware jumper arrays (JP headers) for gain & limit scaling |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Application Scenarios & The “Trench” Experience
Picture this: It’s 3:30 AM during a heavy storm. A steel rolling mill’s primary drive experiences sudden high-load mechanical binding on the main slab conveyor. Without a responsive limiting circuit, the sudden amperage spike would blow main line fuses or destroy $20,000 thyristor bridge packs. Instead, the DS3800NLCA board detects the current overshoot in microseconds, clamping the speed reference down safely to hold the motor at maximum allowable torque without tripping the main breaker.
- Heavy Manufacturing Steel & Rubber Mills – GE DC2000 Main Drive Panels – Clamps armature current commands during instantaneous high-load surges to prevent over-current fault trips.
- Legacy Utility Power Generation – Speedtronic Mark IV Control Systems – Enforces hardware limit boundaries on actuator drivers controlling fuel valves and guide vanes.
- Mining & Extrusion Drives – Industrial DC Systems – Regulates torque limits and protects DC motor commutators from high-current flashovers during heavy acceleration.
Field Case Study: An aluminum processing plant suffered intermittent over-current trips on its cold rolling mill drive during heavy reductions. Troubleshooting revealed that an aging NLCA board’s comparator circuit had drifted, causing the limit clamping action to lag. Swapping in a fully bench-tested DS3800NLCA1E1E surplus card restored sharp, millisecond-level limit response, eliminating unplanned nuisance trips and saving tens of thousands in lost shift production.
Transparency SOP: Quality Assurance & Testing
We recognize that an unverified limiter board can put expensive power electronics at risk. Every DS3800NLCA1E1E passes through a thorough 5-step validation protocol before shipping:
- Inbound Optical Micro-Inspection: High-magnification check for trace overheating, cold solder joints, cracked IC packages, worn gold edge fingers, and daughtercard header pin integrity.
- Dielectric Isolation & Power Check: Insulation resistance checks between primary logic power rails (+5V, ±15V) and control signal grounds to verify zero short-circuit risks.
- Live Test-Rig Integration: Board is installed in a powered GE Mark IV / DC2000 test rack to verify backplane bus communications, power distribution, and initial logic handshake.
- Dynamic Current Limit Injection Testing: Calibrated current ramp signals are injected across all monitoring channels while measuring comparator clamping thresholds on an oscilloscope to confirm zero, span, and response speed over 12 hours.
- Anti-Static Sealing & Protective Packaging: Board is cleaned, fitted with edge covers, vacuum-sealed in an ESD-shielded bag, and secured inside custom impact-resistant foam packaging.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ 1. Verify Auxiliary Daughtercard Mounting: The DS3800NLCA board frequently features an auxiliary piggyback daughtercard for specific signal conditioning or filtering. If your original card has a daughtercard attached, you MUST safely transfer it to the replacement NLCA board before installation!
❗ 2. Match Onboard Hardware Jumpers: Hardware jumper arrays set gain multipliers and signal inversion modes on the limiter inputs. Take a high-resolution photograph of your original board’s jumper layout and match every pin block on the replacement card prior to powering up.
⚠️ 3. Inspect & Clean Gold Edge Connectors: Decades of cabinet service cause surface oxidation on gold card fingers. Never use abrasive sandpaper or wire pads—they strip the thin gold layer down to raw copper, causing rapid corrosion. Clean edge fingers exclusively using a lint-free swab with high-purity isopropyl alcohol or a rubber contact cleaner pad.
❗ 4. Never Hot-Swap the Board: Removing or inserting the DS3800NLCA card while the rack is energized interrupts active control feedback loops. This can cause immediate current spikes that can damage SCR bridges or trigger full system shutdown trips. Always lock out cabinet power first.

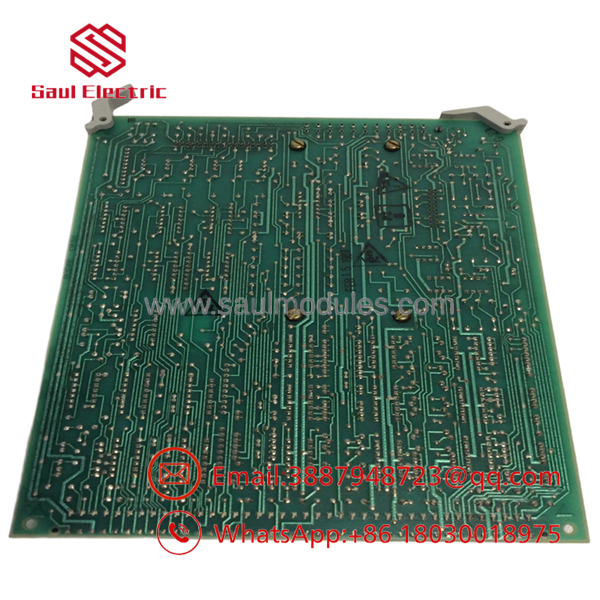

DS3800NLCA1E1E

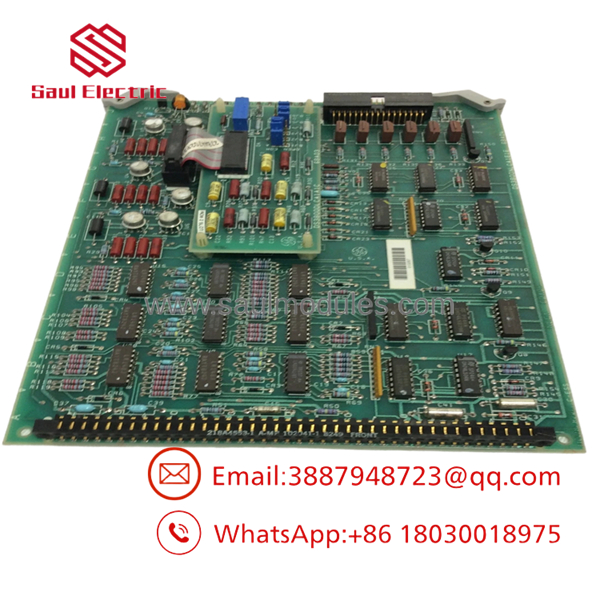

DS3800NLCA1E1E
Frequently Asked Questions (FAQ for Conversion)
Q: Is the GE DS3800NLCA1E1E hot-swappable?
A: No. Hot-swapping the NLCA board will break live feedback loops, causing uncontrolled signal jumps that can damage power electronics and trip the panel. Always de-energize the rack before replacing the module.
Q: What does the “1E1E” revision suffix indicate?
A: The “1E1E” suffix denotes specific factory artwork, trace routing, and component revisions implemented by General Electric during production. A DS3800NLCA1E1E is backward-compatible with earlier NLCA revisions (such as 1A or 1C), provided jumpers and auxiliary daughtercards are configured identically.
Q: Does this board require software downloading or programming?
A: No software loading is required. The NLCA board operates entirely at the analog/logic hardware layer. Configuration is managed strictly through physical jumper settings, daughtercard selection, and onboard calibration trimmers.
Q: Are these units brand new OEM directly from GE?
A: GE discontinued the DS3800 product line years ago. Our inventory consists of New Surplus (unused factory spares) and Refurbished / Bench-Tested cards sourced from clean, decommissioned industrial facilities globally.
Q: What warranty coverage is included?
A: Every card comes backed by a complete 12-month operational warranty. If any functional or component failure occurs under normal operating conditions within one year, we will provide a fast replacement unit or a full credit.
