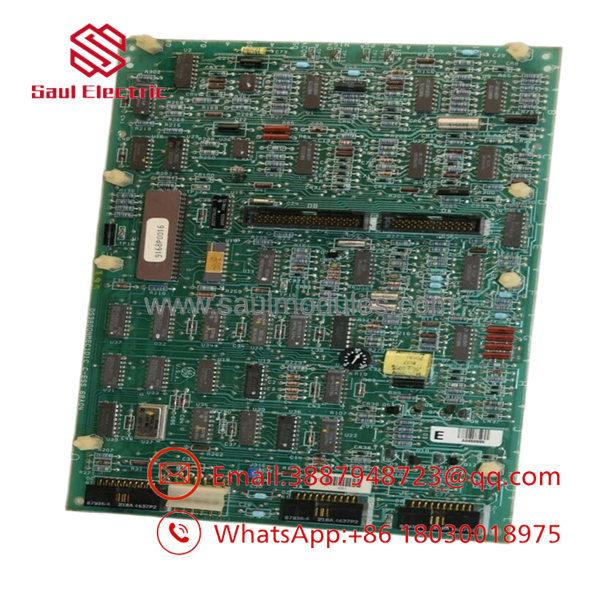

The DS3800NMEC1D1C is a specialized board within the GE Mark IV DS3800 hardware family. It is associated with motor field/exciter control rather than being a general-purpose control PCB. GE Mark IV systems were designed for turbine control applications, including steam and gas turbine systems.
For maintenance teams, the full NMEC1D1C configuration is important. Multiple NMEC variants exist, including DS3800NMEC1D1B, 1C1B, 1E1E, and other configurations. A similar-looking NMEC board should not be treated as an automatic substitute.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric |
| Part Number | DS3800NMEC1D1C |
| Series | Mark IV Speedtronic / DS3800 |
| Board Type | Motor Field / Motor Exciter Control Board |
| Primary Application | GE Mark IV turbine-control systems |
| PCB Mating Connectors | 3 × 218A4637P2 right-angle connectors |
| Connector Labels | JE, JA, JH |
| Vertical Male Connectors | DA and DB |
| Additional Connector | 6-pin JP header |
| Test Points | 17 |
| Rotary Potentiometer | 1 |
| Jumper Switches | 2 |
| Oscillator | 6.000 MHz, TTL-compatible output |
The board description also identifies ten transistors, quad 2-input NAND buffers, quad voltage comparators, and multiple operational amplifiers. One jumper can be configured between J32/J33, while the second can be set to IN/OUT.
Field Application & the “Trench” Experience
A turbine maintenance team is preparing for a scheduled Mark IV outage. A motor-field control problem has been traced to a suspected DS3800NMEC1D1C. The stores department has several older DS3800 boards, including other NMEC variants.
The technician does not simply grab the closest match. The original board is photographed, jumper positions are recorded, connector labels are documented, and the complete DS3800NMEC1D1C marking is verified. The replacement is then inspected before being introduced into the cabinet.
That is the right approach for legacy exciter-control hardware. A wrong configuration can turn a planned board replacement into a commissioning problem.
Specific application scenarios:
- GE Mark IV motor-field control during turbine maintenance outages.
- Turbine exciter-system troubleshooting involving legacy Speedtronic electronics.
- Motor-field control spare provisioning for long-service GE turbine installations.

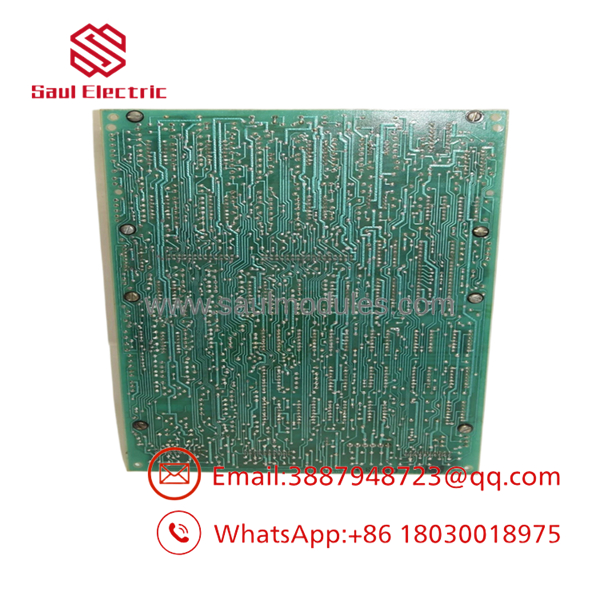

DS3800NMEC1D1C
DS3800NMEC1D1C
Transparency SOP: QA & Testing
A serious QA process for DS3800NMEC1D1C should include:
1. Identification check
Verify the exact part number and board markings on the physical unit.
2. Connector inspection
Check JE, JA, JH, DA, DB, and JP connectors for bent pins, contamination, cracking, or mechanical damage.
3. Component inspection
Inspect the ten transistors, operational amplifiers, comparators, NAND buffers, oscillator circuitry, potentiometer, and surrounding components.
4. Configuration check
Record both jumper positions before shipment or installation. The documented configurations include J32/J33 and IN/OUT.
5. Electrical testing
Where suitable Mark IV test equipment and procedures are available, verify applicable board functions rather than relying solely on continuity or visual inspection.
6. Final documentation
Record actual-unit photographs, test status, condition, and whether the material is New Surplus or Refurbished.
For refurbished inventory, ask for the actual repair scope. A current secondary-market listing describes component-level repair, rebuilding, and QA testing for this part.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — NMEC variants are not automatically interchangeable.
GE’s Mark IV catalog contains numerous NMEC configurations. The difference between DS3800NMEC1D1C and another NMEC suffix should be treated as a technical compatibility question, not a cosmetic one.
⚠️ Trap #2 — Record the jumper settings.
The board has two jumper switches, including configurations identified as J32/J33 and IN/OUT. Do not assume the replacement should be left in its factory configuration.
⚠️ Trap #3 — Inspect all six connectors.
This board uses multiple connector types and locations. A damaged connector can create an installation problem even when the PCB itself passes a basic electrical inspection.
PRO TIP: Photograph the original board with the jumpers and connector labels clearly visible before removal. Keep those images with the spare-parts record.
Dynamic FAQ
Q: What is the GE DS3800NMEC1D1C?
A: It is a GE Mark IV Motor Field / Motor Exciter Control Board within the DS3800 Speedtronic family.
Q: How many connectors does it have?
A: The documented configuration includes six connectors: three right-angle PCB mating connectors labeled JE, JA, and JH; two vertical male connectors labeled DA and DB; and a six-pin JP header.
Q: What jumper settings should be checked?
A: The documented board configuration includes one jumper selectable between J32 and J33 and another selectable between IN and OUT. Always record the original settings before replacement.
Q: Can I replace it with another DS3800NMEC board?
A: Not without verification. GE lists numerous NMEC configurations, and the suffix must be matched against the installed system and board documentation.
Q: How do I verify New Surplus authenticity?
A: Request photographs of the actual PCB and identification markings, confirmation that it has never been installed or energized, and documentation of any inspection or testing performed.
Q: What should I ask about a Refurbished unit and warranty?
A: Request the refurbishment scope, component-level repair details, functional-test procedure, actual-unit photographs, and written warranty terms. One current repair listing states that its repaired DS3800NMEC1D1C units carry a one-year warranty.
