GE DS3800NOWA1H1G Output Relay Interface Board

Description

Product Introduction

The GE DS3800NOWA1H1G (NOWA) is an Output Relay Interface Board engineered for GE Speedtronic Mark IV turbine control panels and high-power DC2000 drive cabinets. Situated within the I/O interface rack, the NOWA card acts as the physical power interface between internal microprocessor control logic (typically +5V or +24V DC logic levels) and higher-voltage field actuators such as trip solenoids, motor starters, indicator lights, and interlocking relays.

Equipped with an array of electromechanical relays, optical isolators, and flyback protection diodes, the NOWA board ensures that inductive voltage spikes from field coils cannot travel back into sensitive backplane logic circuits. Onboard LED indicators provide immediate visual feedback for each active output channel, simplifying maintenance and loop verification during commissioning or troubleshooting.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 4:00 AM on a freezing winter morning. A combined-cycle plant’s gas turbine aborts a start sequence due to a “Fuel Gas Valve Permissive Failed” alarm. Technicians check the main HMI—the digital output bit is firing normally, but the physical valve solenoid isn’t energizing. Opening the control cabinet, the tech finds an channel LED on the old NOWA card lit, but a multimeter check across the output terminals reads open circuit. An internal relay contact pitted and welded over years of inductive switching, leaving the field circuit dead.

• Legacy Utility Power Generation – Speedtronic Mark IV Gas & Steam Turbine Cabinets – Drives trip solenoids, fuel bypass valves, and main breaker closing interlocks.
• Heavy Manufacturing Steel & Paper Mills – GE DC2000 Drive Lines – Actuates mechanical brake contactors and field-reversing relays.
• Chemical & Refining Facilities – Industrial Process Racks – Manages remote annunciator alarms and safety shutdown interlocks.

Field Case Study: A municipal power plant suffered intermittent fuel valve permissive drops during unit synchronization. Replacing the degraded NOWA board with a fully bench-tested DS3800NOWA1H1G surplus card restored clean, zero-bounce contact closures across all 12 output loops, allowing the turbine to start reliably on the first sequence.

Transparency SOP: Quality Assurance & Testing

Because a failing relay card can stall plant startup or cause false process trips, every DS3800NOWA1H1G follows a strict 5-step bench validation protocol before shipping:

1. Inbound Micro-Inspection: High-magnification check for relay cover cracking, contact pitting, thermal stress on trace lines, and gold edge-finger wear.
2. Dielectric Isolation & Supply Rail Check: Insulation resistance testing between field output contacts, logic coils, and chassis ground to confirm total electrical isolation.
3. Live Test-Rig Power-Up: Board is seated in a powered GE Mark IV test frame to verify logic rail distribution, driver transistor switching, and LED illumination.
4. Relay Contact Endurance & Load Testing: Every relay channel is continuously cycled under load while measuring contact resistance, bounce time, and pull-in/drop-out timing over a 12-hour burn-in period.
5. Anti-Static Sealing & Protective Packaging: Board is cleaned, fitted with edge covers, vacuum-sealed in an ESD shielding bag, and packed inside custom impact-resistant foam packaging.

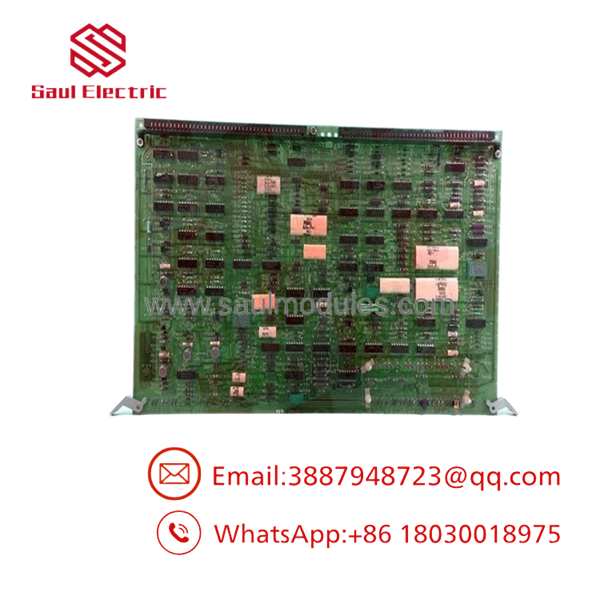

DS3800NOWA1H1G

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ 1. Match Dry vs. Wet Contact Jumpers: The DS3800NOWA board utilizes onboard hardware jumpers to configure whether output channels supply external power (wet contact) or act as isolated switches (dry contact). Take a clear photograph of your original card’s jumper positions and match every block on the replacement unit prior to power-up!

❗ 2. Check External Snubbers / Surge Suppressors: Inductive loads like heavy solenoid coils generate massive voltage spikes when de-energized. If a relay channel on your original NOWA card failed due to welded contacts, inspect the field solenoid’s freewheeling diode or RC snubber before powering up the new board to prevent premature contact erosion.

⚠️ 3. Inspect & Clean Gold Edge Connectors: Decades in an industrial cabinet cause surface oxidation on gold edge fingers. Never use abrasive sandpaper or wire pads—they strip the thin gold layer down to raw copper. Clean edge fingers exclusively using a lint-free swab with high-purity isopropyl alcohol or a rubber contact cleaner pad.

❗ 4. Never Hot-Swap the Board: Pulling or inserting the NOWA card while the rack is energized can cause momentary contact bounce on output relays, potentially triggering unintended field valve actuation or tripping safety loops. Always lock out cabinet power first.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the GE DS3800NOWA1H1G hot-swappable?

A: No. Hot-swapping the NOWA board can trigger unintended contact closures or voltage arcs across edge pins, potentially causing valve actuations or system trips. Always power down the cabinet before replacing the module.

Q: What does the “1H1G” revision suffix indicate?

A: The “1H1G” suffix denotes specific factory artwork, trace routing, and component revision levels implemented by General Electric during production. A DS3800NOWA1H1G is backward-compatible with earlier NOWA revisions, provided hardware jumpers are configured identically.

Q: Does this board require software downloading or programming upon installation?

A: No software loading is required. The NOWA operates strictly at the electromechanical and logic hardware layer. All configuration is handled through physical onboard jumpers.

Q: Are these units brand new OEM directly from GE?

A: GE discontinued the DS3800 product line years ago. Our inventory consists of New Surplus (unused factory spares) and Refurbished / Bench-Tested cards sourced from clean, decommissioned industrial facilities globally.

Q: What warranty coverage is included?

A: Every card comes backed by a complete 12-month operational warranty. If any functional or contact failure occurs under normal operating conditions within one year, we will provide a fast replacement unit or a full credit.
