Description
Product Introduction & Engineering Value
The GE DS3800NPSJ1B1B is a legacy DS3800-series PCB identified by the NPSJ board family and J1B1B configuration. These boards are typically maintained as individual spare parts in older GE control installations where the original architecture remains in service.
The complete designation matters. Do not treat another NPSJ or DS3800 board as a direct replacement merely because its physical dimensions or connector arrangement appears similar. Match the board identification, configuration, and application documentation before installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric |
| Part Number | DS3800NPSJ1B1B |
| Product Family | DS3800 |
| Board Family | DS3800NPSJ |
| Board Type | Industrial control circuit board |
| Configuration | J1B1B |
| Technology Generation | Legacy GE control electronics |
| PCB Format | Plug-in printed circuit board |
| Primary Application | GE legacy industrial control equipment |
| Replacement Method | Exact part-number verification |
| Typical Stock Conditions | New surplus, refurbished, or used |
| Maintenance Approach | Visual inspection, electrical screening, and application-specific functional testing |
Technical caution: Public technical information for the exact DS3800NPSJ1B1B is limited. Exact circuit function, electrical ratings, I/O assignments, connector pinouts, and system compatibility should be verified from the original GE documentation or installed equipment drawings. Do not infer detailed specifications from the NPSJ family name alone.
Field Application & the “Trench” Experience
A legacy board replacement usually fails long before the PCB reaches the cabinet. It fails at the purchasing stage.
A maintenance planner needs a replacement for DS3800NPSJ1B1B ahead of a scheduled outage. A supplier offers an NPSJ-series board with a different suffix and claims it is equivalent. The planner requests photographs of the actual board, compares the complete markings with the installed PCB, and checks the cabinet documentation.
The suffix does not match.
The order is held until an exact-match board is located. That decision prevents a potentially expensive troubleshooting session during the outage.
Niche application scenarios
- DS3800 legacy control cabinets: maintaining installed GE control equipment with board-level replacements.
- Critical spare inventory: stocking exact-match NPSJ boards for equipment with extended service requirements.
- Planned outage preparation: pre-testing replacement PCBs before taking an older control system offline.

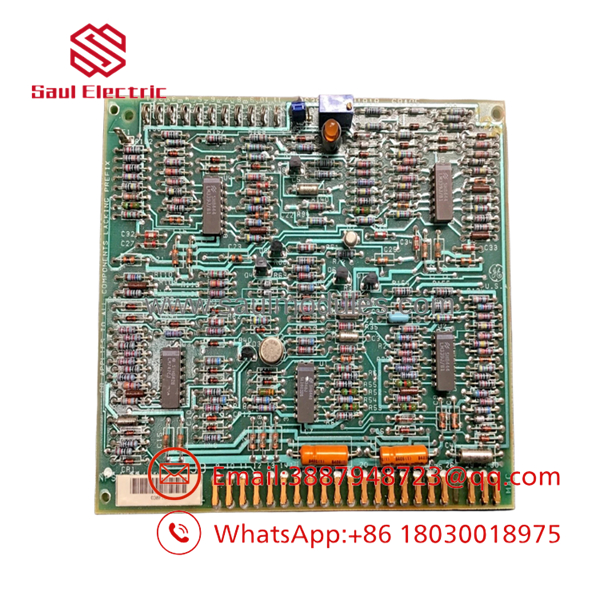

DS3800NPSJ1B1B
Transparency SOP: QA & Testing
For the DS3800NPSJ1B1B, a useful QA process should include:
- Identification verification — Confirm the complete part number and all visible revision markings.
- PCB inspection — Examine components, traces, connectors, solder joints, mounting points, and signs of contamination or corrosion.
- Configuration check — Record jumpers, switches, and configurable hardware where applicable.
- Electrical screening — Check for shorts, abnormal resistance paths, damaged components, and evidence of overheating.
- Functional test — Where suitable GE test equipment is available, verify the board’s actual application-specific functions.
- Traceability — Record board condition, test scope, serial information where available, and warranty.
For New Surplus stock, confirm that the actual board has not previously been installed, repaired, or modified.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Don’t order “NPSJ” and hope for the best.
The complete DS3800NPSJ1B1B designation should be used for procurement.
⚠️ Trap #2 — Do not assume family-level compatibility.
Two NPSJ boards can have different configurations and therefore different application requirements.
PRO TIP: Capture the original board’s label, configuration hardware, connector locations, and cabinet position before removal.
⚠️ Trap #3 — Ask for a real test description.
“Tested OK” is not enough. Find out whether the supplier performed visual inspection, electrical screening, or functional testing with compatible equipment.
Dynamic FAQ
What is the GE DS3800NPSJ1B1B?
The is a GE DS3800-series industrial control PCB belonging to the NPSJ board family.
What system is it used in?
It is associated with GE’s legacy DS3800 control hardware. The exact host-system role should be confirmed using the installed equipment documentation.
Can another NPSJ board replace it?
Not automatically. Verify the complete part number, configuration, revision, connectors, electrical characteristics, and application before substitution.
What should I provide when sourcing a replacement?
Provide , clear photographs of the original PCB and labels, revision information, cabinet location, and the associated GE equipment model if available.
How do I verify New Surplus authenticity?
Request photographs of the actual board and confirmation of its service history. Ask whether it has ever been installed, repaired, modified, or functionally tested.
What warranty should I confirm?
Confirm the warranty period, DOA coverage, return conditions, and test documentation. Make sure the supplier clearly identifies the condition as New Surplus, Refurbished, or Used.
