GE DS3800NRMA1C1C Relay Output Module

Description

Product Introduction

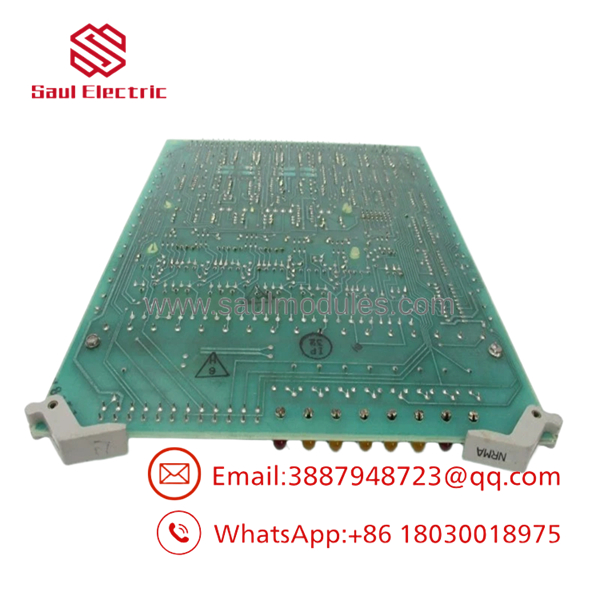

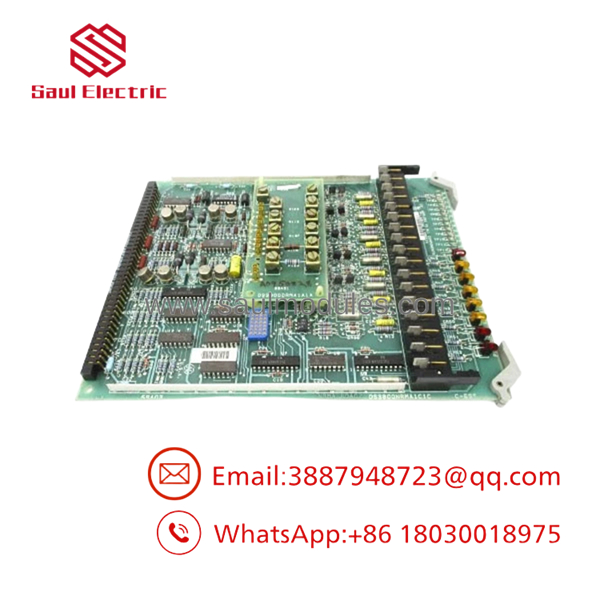

The GE DS3800NRMA1C1C is a high-reliability relay output module engineered for GE Speedtronic Mark IV turbine control systems and heavy industrial drive cabinets. Mounted within the control panel interface rack, it acts as an isolated switching layer between sensitive low-voltage microprocessor circuits and higher-voltage field control loops.

Turbine technicians and maintenance teams rely on the NRMA board to ensure clean, isolated contact execution without introducing line transients into backplane logic. Equipped with onboard electromechanical relays and barrier terminal blocks, the board simplifies discrete command routing to external solenoids, contactor coils, and plant annunciators.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It’s 3:15 AM during a critical grid-start sequence, and a peaking gas turbine halts due to an unacknowledged “Fuel Purge Valve Close” feedback alarm. The central processor executed the command, but an inductive kickback spike from an unsuppressed field solenoid destroyed an onboard contact on the aging NRMA board. The physical valve remained unactuated. Swapping in a bench-verified DS3800NRMA1C1C replacement card, confirming ribbon cable alignment, and re-landing the field leads restores contact operation immediately, allowing the unit to complete start-up sequences on schedule.

• Power Generation Facilities – GE Frame 5/6/7 Gas Turbines – Driving trip solenoids, fuel purge interlocks, and generator breaker trip coils.
• Combined-Cycle Steam Operations – Steam Turbine Control Cabinets – Actuating steam extraction valves and alarm horns.
• Industrial Manufacturing Drives – Large Heavy-Duty Drives – Providing isolated contact outputs to auxiliary lube oil pumps and motor starters.

Transparency SOP: Quality Assurance & Testing

We test every card on live GE test benches before shipment:

1. Inbound Visual & Contact Audit: Inspect terminal strip screws for stripping, audit solder pads for thermal cracking, and inspect relay contacts for pitting or welding.
2. Cold Coil Resistance Test: Measure individual relay coil resistance levels to ensure zero shorted or open-circuit coils before applying power.
3. Power-On & Relay Actuation Sweep: Seat the module into a Mark IV test rack, sequentially energizing every channel while verifying < 0.05\ \Omega contact resistance across Normally Open (NO) and Normally Closed (NC) contacts under load.
4. Isolation Check: Perform high-potential insulation checks between high-voltage terminal contacts and low-voltage ribbon connectors to ensure total isolation.
5. Revision Code Verification: Document exact 1C1C revision markings on the final release certificate.
6. ESD Packaging: Seal inside static-shielding bags with fresh desiccant prior to custom foam packaging.

DS3800NRMA1C1C

DS3800NRMA1C1C

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ 1. Install External RC Snubbers Across Inductive Field Loads!

The relays on the DS3800NRMA1C1C drive pilot-duty loads, but switching large DC solenoids or contactor coils directly produces high back-EMF voltage spikes. Without external suppression (flyback diodes for DC or RC snubbers for AC) placed across the field load, inductive arcing will prematurely burn out or weld the onboard relay contacts!

❗ 2. Always Label Field Terminal Wires Before Removal

The NRMA card features onboard screw terminals carrying field control voltages (often 115 VAC or 125 VDC). Mislanding a high-voltage field wire onto a low-voltage ribbon pin will instantly damage neighboring rack processor cards! Always tag wires and take a photo before disconnecting.

⚠️ 3. De-energize External Pilot Power Before Replacing

Even if internal rack logic power is turned off, the contacts landed on the terminal strip may carry energized pilot power from independent station battery breakers. Always lock out and tag out (LOTO) external field circuits before servicing the board.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the DS3800NRMA1C1C hot-swappable?

A: No. Removing a relay interface module while the system is powered severs active control interlocks, causing an immediate emergency shutdown. Always de-energize panel power before replacing this board.

Q: What does the “1C1C” revision code mean?

A: In GE Speedtronic part numbering, 1C1C indicates the exact engineering revision level. The first 1C specifies the PCB artwork layout, while the second 1C identifies the specific bill-of-materials (BOM) component build.

Q: Can a 1C1C revision replace an earlier 1A1A or 1B1B board?

A: Yes, higher revision levels like 1C1C are backward-compatible with earlier suffix revisions in standard Mark IV slots.

Q: Is this unit new or refurbished, and what warranty is included?

A: We supply this module as New Surplus stock (unused factory original surplus). Every unit includes our full 12-month operational replacement warranty.
