Product Introduction & Engineering Value
The GE DS3800NSMA is a legacy DS3800-series motor-control board associated with GE Mark IV control hardware. Available inventory documentation identifies the basic NSMA as a Motor Board, with the more specific NSMA family description referring to stalled-motor functions.
One important procurement detail: DS3800NSMA is a base model designation, not necessarily a complete configuration number. The market also lists versions such as DS3800NSMA1B1B and DS3800NSMA1C. Match the complete marking on the physical board before approving a replacement.
Technical Specifications
- Manufacturer: General Electric (GE)
- Part Number: DS3800NSMA
- Product Family: DS3800
- Platform: GE Mark IV Speedtronic
- Board Designation: NSMA
- Product Description: Motor Board / Stalled Motor Card
- Functional Area: Motor monitoring/control
- Application: Legacy GE turbine-control equipment
- Installation: Compatible DS3800 control-system assembly
- Lifecycle: Discontinued / legacy hardware
- Replacement Strategy: Exact configuration matching
- Available Conditions: New Surplus / Refurbished / Used, depending on supplier
Radwell currently classifies DS3800NSMA as a discontinued GE PC board and describes it as a Computer Board, Panel Mount.
Engineering caution: Public references do not provide enough reliable information to assign exact electrical ratings, I/O count, connector pinout, or stalled-motor trip parameters to the bare DS3800NSMA designation. Those values should be confirmed from the applicable GE documentation and the actual board configuration.
Field Application & the “Trench” Experience
A maintenance team is troubleshooting a legacy GE-controlled motor circuit. The operator reports a motor-related trip, but the maintenance group does not immediately condemn the DS3800NSMA.
First, they document the original board number and cabinet wiring. Then they check whether the fault follows the motor, field wiring, or control circuitry. Only after those checks does the team compare the installed NSMA board with the available spare.
That distinction is important. A stalled-motor indication can originate from the controlled equipment or its wiring rather than from the monitoring PCB itself.
Specific application scenarios:
- Stalled-motor detection/control in legacy GE Mark IV equipment.
- Motor-control cabinet troubleshooting during scheduled turbine maintenance.
- DS3800 spare-board replacement where the original GE control architecture remains in service.
Transparency SOP: QA & Testing
For , I would use the following release procedure:
- Identity check — Verify the exact part number and all suffix/configuration markings.
- Physical inspection — Examine the PCB, connectors, components, solder joints, traces, and mounting points.
- Condition screening — Check for corrosion, contamination, moisture exposure, overheating, and previous repair work.
- Configuration comparison — Compare the replacement with the customer’s installed board.
- Functional evaluation — Where compatible Mark IV test equipment and procedures are available, test the applicable motor-control/stalled-motor functions.
- Traceability — Record photographs, condition, test status, and stock classification.
The distinction between conditions should be explicit. A current automation catalog identifies inventory as Refurbished, while another listing offers the more specific DS3800NSMA1B1B as refurbished.

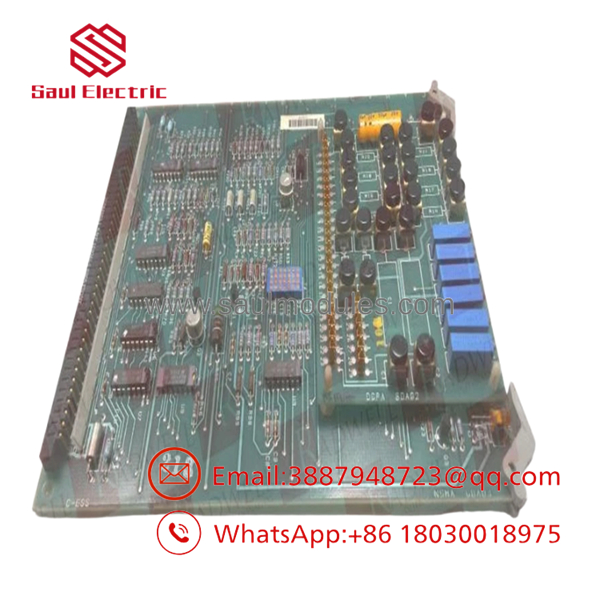

DS3800NSMA
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Don’t stop at “DS3800NSMA.”
The NSMA family has configuration variants. For example, DS3800NSMA1B1B is separately listed. Verify the complete board marking before ordering.
⚠️ Trap #2 — Don’t assume every motor trip means a failed board.
Check the motor, associated wiring, field conditions, and control signals before replacing the PCB.
⚠️ Trap #3 — Don’t confuse a base model with a configured replacement.
A supplier may advertise “DS3800NSMA” while shipping a particular suffix variant. Request photographs of the actual unit and its identification label.
PRO TIP: Preserve the failed board until commissioning is complete. On legacy equipment, it can provide valuable information about the original configuration if the replacement behaves differently.
Dynamic FAQ
Q: What is the GE DS3800NSMA?
A: It is a legacy GE DS3800 motor-control board, with parts references describing the NSMA family as a Motor Board / Stalled Motor Card.
Q: Is DS3800NSMA a complete part number?
A: It is a valid base model designation, but configured versions such as DS3800NSMA1B1B are also listed. The complete physical-board marking should be matched before replacement.
Q: What does the NSMA board do?
A: Available parts catalogs associate it with motor control and stalled-motor functions. The exact circuit behavior should be verified against the applicable GE Mark IV documentation.
Q: Can another NSMA variant replace it?
A: Not automatically. Verify the complete suffix, board configuration, connector arrangement, electrical function, and host-system requirements.
Q: How should New Surplus authenticity be checked?
A: Request actual-unit photographs, confirmation that the board is unused, information about whether it has ever been energized, and documented inspection/testing results.
Q: What about Refurbished stock and warranty?
A: Ask for the repair scope, functional-test procedure, actual-unit photographs, and written warranty terms. One current listing for DS3800NSMA1B1B states that component-level repair and QA testing are available and advertises a one-year repair warranty.
