The GE DS3800NTBD1B1C is a Terminal Distribution Board (NTBD) engineered for General Electric Speedtronic Mark IV turbine control enclosures and heavy industrial system drive cabinets. Serving as a crucial physical interface between plant-floor field wiring and internal electronic logic, this card routes discrete and analog control signals into the control rack.
Positioned at the boundary of the card cage, the NTBD module simplifies field landings for sensor cables, contact feedback, and command outputs. It incorporates passive noise filtering, transient voltage suppression, and jumper-selectable signal paths to safeguard sensitive backplane microprocessors from electrical noise, lightning surges, and induced field interference common in power generation facilities.
Key Technical Specifications
| Parameter | Specification / Value |
| Manufacturer | General Electric (GE) |
| System Architecture | Speedtronic Mark IV Turbine Control & System Drives |
| Board Functional Acronym | NTBD (Terminal Distribution Board) |
| Primary Function | Field wiring termination, signal routing, and passive noise filtering |
| Terminal Connections | High-density screw-barrier terminal blocks for direct wire termination |
| Transient Protection | Integrated metal-oxide varistors (MOVs) and RC damping networks per channel |
| Backplane Connection | Multi-pin ribbon cable headers / gold card-edge connectors |
| Hardware Configuration | Physical BERG jumpers for signal path routing, shielding, and attenuation |
| Board Generation / Prefix | DS3800 Series (Classic full-frame modular PCB architecture) |
| Operating Temperature | -30°C to +65°C Industrial Extended Range |
Application Scenarios & The “Trench” Experience
The Trench Story
It’s 3:45 AM during a storm at a municipal power station. A Frame 6 Gas Turbine trips unexpectedly on a false “Exhaust Thermocouple Open Circuit” alarm. Field technicians confirm that the thermocouples in the field junction box are intact and reading correctly. Inspection inside the Mark IV cabinet reveals that a nearby lightning strike induced a voltage spike across the field wiring, burning out a passive filter resistor and damaging the terminal landing trace on the original NTBD board. Swapping in a pre-tested DS3800NTBD1B1C replacement card and matching the physical BERG jumper configuration restores clean signal routing to the temperature processing card, clearing the trip condition and allowing the turbine to re-sync to the grid.
Industrial Applications
- Gas Turbine Field Wiring Termination: Landing discrete contact inputs, pressure switch signals, and valve position feedback on GE Frame 5, 6, 7, and 9 units.
- Steam Turbine Annunciator Routing: Managing signal distribution for cabinet alarm loops and protective interlocks.
- Industrial VFD Control Enclosures: Handling external field command and feedback signal distribution in heavy drive racks.

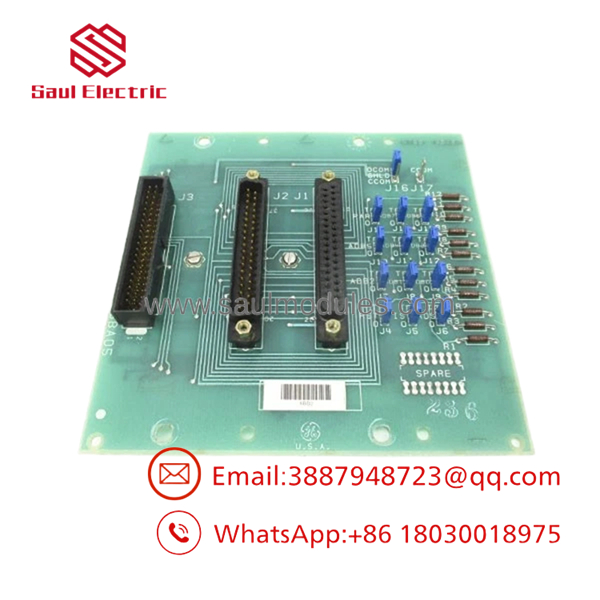

DS3800NTBD1B1C

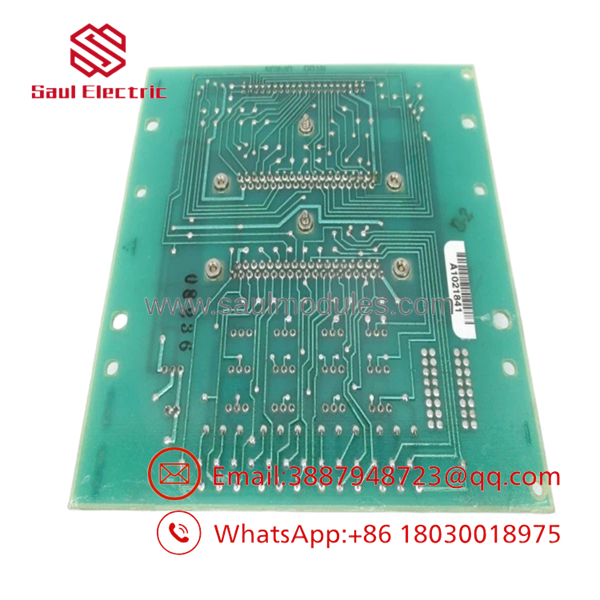

DS3800NTBD1B1C
Transparency SOP: Quality Assurance & Testing
Every legacy terminal module undergoes a strict, multi-stage reconditioning and physical validation protocol prior to dispatch:
- Inbound Physical Inspection: Detailed optical audit under magnification for stripped screw terminals, cracked barrier blocks, trace discoloration, solder joint fatigue, and edge-connector wear.
- Ultrasonic ESD Cleaning: Deep solvent wash to remove conductive carbon dust, oil haze, and industrial residues accumulated over decades of cabinet operation.
- Continuity & Isolation Audit: Verifying 100% trace continuity from terminal screws to backplane headers, along with high-voltage insulation testing between adjacent channels and ground.
- Passive Component Verification: Testing onboard MOVs, filter capacitors, and precision resistors for value drift or thermal breakdown under simulated field signal loads.
- Live Mark IV Rack Execution: Installing the board into an active Speedtronic Mark IV test rack cage to confirm clean signal pass-through and backplane bus handshaking.
- Jumper Audit & ESD Packaging: Documenting all physical BERG jumper settings before vacuum-sealing the board in static-shielding ESD packaging.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ 1. Signal Routing BERG Jumpers
The DS3800NTBD1B1C utilizes physical BERG jumper blocks to configure signal grounding schemes, channel attenuation, and internal vs. external power routing. Installing a replacement board without replicating the jumper settings from your original card can cause floating inputs, signal clipping, or false sensor readings.
Fix: Take a clear photo of every jumper block on your failed card before removal, and duplicate every jumper position line-for-line on the replacement board.
❗ 2. Terminal Screw Torquing & Mechanical Strain
Over-tightening field wires on the barrier terminal strip can snap underlying copper traces or crack the PCB around the terminal mounting pins, leading to intermittent open circuits during machine vibration.
Fix: Use a calibrated torque screwdriver when landing field wires, and ensure field cable bundles are properly strain-relieved inside the cabinet frame.
⚠️ 3. Revision Suffix Parity (1B1C)
The trailing suffix 1B1C designates late-generation artwork revisions with reinforced ground planes and higher-rated transient suppression components compared to earlier 1A variants. Matching the full alphanumeric code ensures electrical noise immunity and drop-in compatibility.
Fix: Cross-reference the complete part number stamped on the PCB edge margin prior to ordering.
Frequently Asked Questions (FAQ)
Q: Can I hot-swap the DS3800NTBD1B1C board while the Mark IV system is under power?
A: No. Pulling or inserting a terminal board live while carrying field voltage can cause signal arcing, false trip generation, or damage to connected processor cards in the cage. Always isolate control cabinet power prior to servicing.
Q: What is the most common failure mode on this module?
A: Mechanical damage to barrier screw terminals from over-torquing, thermal degradation of surge suppressors (MOVs) following field voltage spikes, and trace stress caused by un-supported field wiring bundles.
Q: Does this card require software flashing or firmware loading after installation?
A: No. The DS3800NTBD1B1C is a pure hardware-level terminal and signal routing board. It functions using passive filter networks, terminal connections, and physical BERG jumpers—no software or firmware configuration is required.
Q: How do I determine if a signal issue is on the NTBD board or out in the field?
A: Disconnect the field wire from the specific NTBD screw terminal and measure loop voltage/resistance on the field cable directly. If the signal is correct at the wire but fails on the panel display, the fault resides on the NTBD card or downstream backplane logic.
Q: What warranty is supplied with your surplus and refurbished stock?
A: Every DS3800NTBD1B1C board shipped carries a full 12-month replacement warranty. If a module fails under standard operating conditions within one year of installation, it is replaced directly from stock.
