GE DS3800NTCF1A1A Speedtronic Mark IV Thermocouple Interface Board

Description

3. Product Introduction

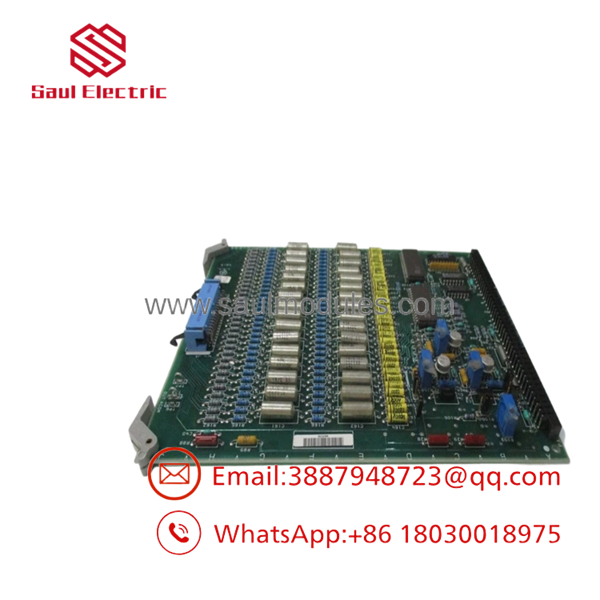

The GE DS3800NTCF1A1A serves as a Thermocouple Input / Interface Board (NTCF) within legacy GE Speedtronic Mark IV gas and steam turbine control systems. Installed in the primary control card cage, the NTCF board conditions millivolt-level temperature signals from critical field thermocouples—such as turbine exhaust frame sensors, bearing header probes, and compressor discharge lines.

The DS3800NTCF1A1A revision incorporates onboard cold-junction compensation circuitry, high-frequency noise filtering, and signal isolation stages. By converting raw millivolt signals from thermocouples into clean, standardized analog levels, it ensures accurate temperature monitoring and protects central processors from high-voltage spikes or ground loops.

4. Key Technical Specifications

5. Application Scenarios & The “Trench” Experience

During base-load operation on a heavy-duty gas turbine, the control system triggers an exhaust temperature spread alarm. Investigation reveals that several thermocouple channels are reading erratic temperature spikes caused by signal noise and cold-junction drift on an aging NTCF board. Technicians power down the card cage, unseat the degraded module, and install a bench-tested DS3800NTCF1A1A. After matching hardware jumpers and reconnecting input headers, temperature readings stabilize, clearing the false spread alarm and keeping the turbine online.

• Gas Turbine Exhaust Monitoring – Frame Temperature Spreads – Processes millivolt signals from multi-point exhaust frame thermocouples to detect combustion anomalies.
• Bearing Protection – Bearing Metal Temperatures – Monitors embedded bearing thermocouples to prevent thermal degradation during operation.
• Compressor & Steam Line Telemetry – Process Monitoring – Conditions high-temperature inputs for governor logic and panel display instrumentation.

6. Transparency SOP: Quality Assurance & Testing

1. Visual & Structural Audit: High-magnification check for trace degradation, solder joint fatigue, capacitor leakage, and connector finger wear.
2. Gold Finger & Edge Cleansing: Micro-polishing card edge contacts and header pins to guarantee low-resistance backplane mating.
3. Cold-Junction & Amplifier Test: Bench-testing cold-junction compensation networks and signal amplifiers for gain stability across temperature shifts.
4. Millivolt Input Linearity Verification: Injecting calibrated mV reference signals across thermocouple channels to verify output voltage response accuracy.
5. Anti-Static ESD Packaging: Packed in static-shielding ESD bags with fresh desiccant packages prior to protective foam encapsulation.

DS3800NTCF1A1A

7. The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ POWER DOWN THE CARD CAGE BEFORE REMOVAL: Live backplane rails carry sensitive logic power and signal references. Pulling or inserting the DS3800NTCF1A1A card under power can damage onboard operational amplifiers or trigger false temperature trip alarms on adjacent cards.
• ❗ VERIFY JUMPER POSITIONS FOR THERMOCOUPLE TYPE: Physical shorting jumpers dictate thermocouple compensation curves and filter settings. Carefully record and match every jumper setting from your old card to the replacement module before applying power.
• ⚠️ CHECK COLD-JUNCTION SENSOR PLACEMENT: Cold-junction compensation depends on proper ambient temperature sensing at the terminal board interface. Ensure terminal connections are fully seated and shielded from cabinet draft or direct heat sources.
• ❗ ALWAYS USE ESD PROTECTION: Micro-volt signal amplifiers and analog ICs on the NTCF card are highly sensitive to static discharge. Always wear a grounded ESD wrist strap when handling the card.

8. Frequently Asked Questions (FAQ for Conversion)

Q: What is the main function of the DS3800NTCF1A1A board?

A: It conditions, amplifies, and linearizes millivolt-level signals from field thermocouples while providing cold-junction compensation for Speedtronic Mark IV systems.

Q: Is the DS3800NTCF1A1A compatible with Speedtronic Mark V control systems?

A: No. DS3800-series boards belong to the Speedtronic Mark IV family and are not physically or electrically compatible with Speedtronic Mark V (DS200-series) backplanes.

Q: Does replacing the NTCF board require software downloads or laptop flashing?

A: No. The NTCF card is an analog signal conditioning module. Operating parameters and signal gain are determined by physical hardware jumpers and Mark IV system calibration routines.

Q: What warranty comes with this replacement board?

A: Every unit includes a full 12-month replacement warranty from the delivery date, covering trace continuity, amplifier linearity, and input channel stability.
