Description
Product Introduction
The GE DS3815PCLA1E1D is a Phase Control Logic and Line Synchronization Board (PCLA) engineered for General Electric Speedtronic Mark IV turbine control racks and heavy-duty system drive cabinets. Serving as an essential timing coordinator within power regulation loops, this module continuously tracks incoming AC line phase angles to ensure precise phase-fired switching across SCRs, generator excitation bridges, and heavy power converters.
By utilizing high-accuracy zero-crossing detection circuits and Phase-Locked Loop (PLL) architecture, the PCLA card synchronizes low-voltage digital control signals with the high-voltage AC mains. This prevents phase-angle skew, current imbalances, and harmonic distortion when throttling generator field excitation or controlling large industrial motor drive systems.
Key Technical Specifications
| Parameter | Specification / Value |
| Manufacturer | General Electric (GE) |
| System Architecture | Speedtronic Mark IV Turbine Control & System Drives |
| Board Functional Acronym | PCLA (Phase Control Logic & Line Angle Board) |
| Primary Function | AC phase angle detection, line frequency synchronization, and SCR firing pulse timing |
| Timing Architecture | Precision Phase-Locked Loop (PLL) with zero-crossing comparator arrays |
| Input Signals | 3-Phase AC voltage feedback via isolation transformers |
| Backplane Interface | Dual multi-pin gold card-edge connectors for Mark IV rack slot insertion |
| Hardware Configuration | Physical BERG jumpers for nominal line frequency (50 Hz / 60 Hz) and phase sequence |
| Board Generation / Prefix | DS3815 Series (Modular PCB architecture with extended component spacing) |
| Operating Temperature | -30°C to +65°C Industrial Extended Range |
Application Scenarios & The “Trench” Experience
The Trench Story
It’s 3:30 AM at a steel mill power station. A gas-turbine generator excitation cubicle trips unexpectedly on a “Generator Excitation Phase Imbalance” fault during a reactive power ramp. The site electrician confirms that incoming 3-phase line voltages are balanced, but firing pulses to the SCR bridge are erratic. Inspection reveals that thermal aging caused frequency drift in the timing capacitors on the original PCLA board, blinding the card to phase zero-crossings. Swapping in a pre-tested DS3815PCLA1E1D replacement card and selecting the correct 60 Hz line-frequency BERG jumper restores clean firing pulse synchronization, clearing the fault and returning the exciter to service.
Industrial Applications
- Generator Excitation Systems: Synchronizing thyristor bridge firing commands with generator terminal voltage in static exciter cabinets.
- Gas & Steam Turbine Controls: Regulating high-power DC motor starters and turning gear drives on GE Frame 5, 6, 7, and 9 units.
- Heavy Industrial VFDs: Managing input phase synchronization and firing timing on large rolling mill motor drives.
Transparency SOP: Quality Assurance & Testing
Every legacy phase control module undergoes a strict, multi-stage reconditioning and dynamic timing validation protocol before dispatch:
- Inbound Physical Inspection: Detailed optical audit under magnification for thermal trace discoloration, aging timing capacitors, damaged jumper headers, and gold edge-connector wear.
- Ultrasonic ESD Cleaning: Deep solvent wash to eliminate airborne conductive carbon dust, oil haze, and industrial residues accumulated over decades of cabinet operation.
- Phase-Locked Loop (PLL) & Zero-Crossing Audit: Injecting 3-phase AC reference waveforms (50 Hz and 60 Hz) to verify clean zero-crossing detection and zero timing jitter on an oscilloscope.
- Firing Pulse Output Test: Exercising output channel drivers under full electrical load to confirm precise phase-angle pulse placement and amplitude stability.
- Live Mark IV Rack Execution: Installing the card into an active Speedtronic Mark IV test rack cage to confirm backplane communications handshaking and diagnostic status LEDs under load.
- Jumper Audit & ESD Packaging: Documenting all physical BERG jumper settings before vacuum-sealing the board in static-shielding ESD packaging.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ 1. 50 Hz / 60 Hz Line Frequency BERG Jumpers
The DS3815PCLA1E1D utilizes physical BERG jumper blocks to set nominal AC line frequency (50 Hz vs. 60 Hz) and line-to-line phase rotation sequence. Installing a replacement board without verifying jumper selection will cause severe phase-lock loss, resulting in immediate SCR misfiring or destructive overcurrent trips.
Fix: Photograph every jumper block on your failed card before removal, and duplicate every jumper position line-for-line on the replacement board.
❗ 2. Card-Edge Contact Cleaning
Because phase synchronization relies on precise, noise-free low-voltage timing signals, oxidation or fine dust on the backplane gold card-edge connectors can cause phase jitter or false loss-of-phase alarms.
Fix: Clean the card-edge contacts gently with an isopropyl alcohol swab or a clean pencil eraser before seating the card. Avoid abrasive pads like Scotch-Brite, which strip the thin gold plating.
⚠️ 3. Prefix Distinction (DS3815 vs. DS3800)
The DS3815 prefix indicates a specialized variant artwork layout within the classic 3800 series family, often featuring modified component spacing or elevated heat dissipation traces for high-power drive loops.
Fix: Cross-reference the complete alphanumeric part number stamped on the PCB margin to ensure exact mechanical and electrical compatibility.

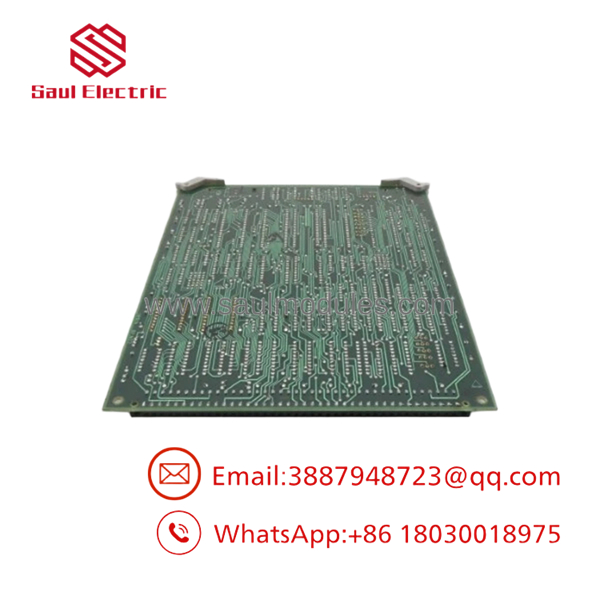

DS3815PCLA1E1D

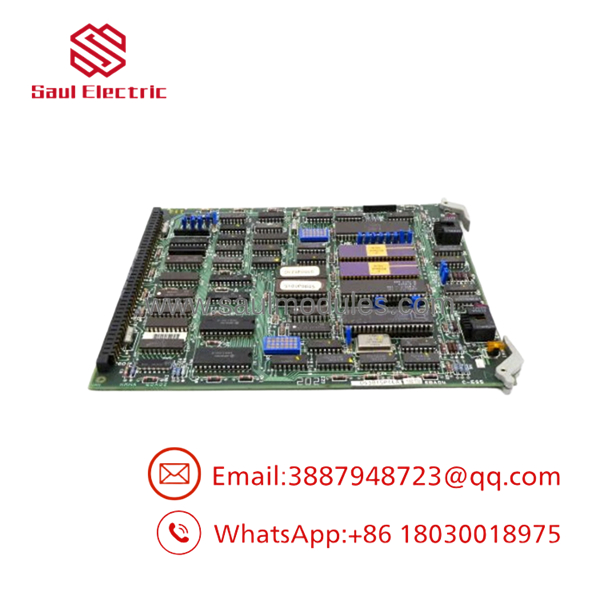

DS3815PCLA1E1D
Frequently Asked Questions (FAQ)
Q: Can I hot-swap the DS3815PCLA1E1D board while the Mark IV system is powered on?
A: No. Pulling or inserting a phase control board live can cause sudden firing pulse dropouts or voltage spikes across SCR bridges, potentially damaging power thyristors or tripping the main generator. Always isolate cabinet control power prior to servicing.
Q: What is the most common failure mode on this module?
A: Drift in timing capacitors and operational amplifiers due to decades of continuous thermal exposure inside control cabinets, leading to phase-lock loss, firing pulse jitter, or phase imbalance alarms.
Q: Does this card require software programming via a laptop after installation?
A: No. The DS3815PCLA1E1D is a pure hardware-level phase control board. It operates using analog phase-lock loops, comparators, and physical BERG jumpers—no software loading or EEPROM flashing is required.
Q: What is the difference between DS3800/DS3815 and DS200 part series?
A: DS3800/DS3815 series boards belong to classic GE systems (like Speedtronic Mark IV) featuring dual full-edge gold card connectors. DS200 series boards belong to newer platforms (like Mark V) utilizing ribbon cable pin headers. They are not interchangeable.
Q: What warranty is supplied with your surplus and refurbished stock?
A: Every DS3815PCLA1E1D board shipped carries a full 12-month replacement warranty. If a module fails under standard operating conditions within one year of installation, it is replaced directly from stock.
