GE DS3815PLNC1 Speedtronic Mark IV Interface Board

Description

Product Introduction

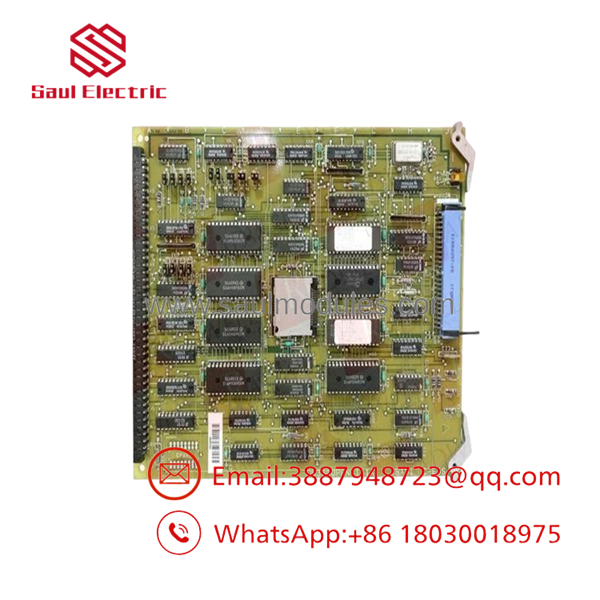

The GE DS3815PLNC1 is a specialized programmable logic interface card engineered for legacy General Electric Speedtronic Mark IV turbine management architectures. Slotted into the core processing rack, this module manages discrete sequencing logic, interlock verifications, and digital event routing required to run gas and steam turbomachinery safely.

In our field experience, the primary technical advantage of the DS3815PLNC1 is its hardwired logic execution stability. By offloading complex discrete state checks from the main CPU, it ensures high-speed, deterministic handling of system permissives and alarm monitoring—preventing software cycle delays from impacting critical turbine protection routines.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture a high-stress scenario at an aging peaking plant: a heavy industrial gas turbine fails to advance past the crank-and-purge sequence during a high-demand grid call. The main operator terminal displays a generic sequence timeout, but no field permissive is actually failing. The issue traces back to a failed logic buffer chip on an aging PLNC board, which is incorrectly reporting a open valve interlock to the main controller.

• Legacy Power Generation – GE Frame 5, 6, and 7 Gas Turbines – Executes discrete startup sequencing, flame permissive checks, and fuel selection logic.
• Petrochemical Mechanical Drives – Large Compressor Turbines – Processes hardwired safety interlocks and valve positioning permissives.
• Industrial Cogeneration Units – Steam Turbine Racks – Manages digital event monitoring and alarm state buffering for external monitoring stations.

During a forced outage at a chemical processing plant, a logic gate failure on an active PLNC board halted a critical boiler feed pump turbine, stalling plant operations. We dispatched a fully tested, pre-inspected DS3815PLNC1 board from our surplus inventory via overnight air freight. The site engineer matched the jumper configurations, cleaned the backplane connector, slotted the replacement card home, and had the system back in service in under 12 hours.

DS3815PLNC1

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual GE Mark IV racks.

1. Inbound Visual Inspection: Microscopic audit checking for trace oxidation, hairline solder cracks, heat-damaged components, and edge-connector wear.
2. Gold-Finger Polish & Check: Edge connector contacts are cleaned, polished, and micro-measured to ensure proper gold plating depth and low contact resistance.
3. Logic Matrix Bench Testing: Dedicated signal injectors exercise all onboard logic gates and buffer stages to verify clean state transitions.
4. Live Card Cage Thermal Soak: Installed in a live Mark IV simulation rack operating inside an environmental chamber to capture potential thermal drift faults.
5. Anti-Static Packaging: Sealed in static-shielding bags with fresh desiccant before being packed in custom shock-absorbing foam containers.

The Veteran’s Tech Trap Guide

• ⚠️ Match Hardware Jumpers and DIP Switches: The DS3815PLNC1 features onboard jumpers and micro-switches used to set card addressing and logic pathways. Document and copy every single jumper position from your original card before sliding the new board into the rack.
• ❗ Never Hot-Swap Mark IV Cards: The Speedtronic Mark IV card cage backplane does NOT support hot-swapping. Unplugging or inserting this card while the 24VDC/5VDC bus is live will arc the gold edge contacts and can destroy sensitive logic chips across the entire rack.
• ⚠️ Check Socketed ICs and PROMs: If your original board contains socketed memory or PROM chips, verify whether those need to be transferred to the replacement board. Ensure any swapped ICs are seated firmly with the orientation notch matching the PCB silkscreen.
• ❗ Clean the Backplane Edge Connector Slot: Card cage slots that have been in service for decades accumulate dust and oil film. Clean the slot connectors with electrical contact cleaner and a cleaning pad before seating the new module.

Frequently Asked Questions

• Q: Is the GE DS3815PLNC1 hot-swappable?
  • A: No. Always power down the Mark IV card cage rack before pulling or installing this module to prevent backplane arcing and system fault trips.
• Q: What is the primary purpose of the DS3815PLNC1 card?
  • A: It functions as a programmable logic interface card, managing high-speed discrete sequencing, permissives, and logic execution within Mark IV turbine control racks.
• Q: What does the “C1” suffix indicate?
  • A: The “C1” suffix designates the specific artwork group and hardware component revision level established by GE during production.
• Q: Do I need to program or flash firmware when replacing this board?
  • A: In most cases, configuration is handled entirely by onboard hardware jumpers and DIP switches. However, if your specific application uses socketed PROMs, verify whether those chips need to be moved from your old board.
• Q: What warranty is provided with this surplus board?
  • A: We back all New Surplus and Refurbished GE Mark IV inventory with a comprehensive 12-month replacement warranty.
• Q: Why opt for surplus Mark IV hardware over a total system retrofit?
  • A: Full DCS/PLC retrofits require massive capital expenditure, extensive cabinet rewiring, and weeks of planned outage time. Purchasing tested surplus hardware lets you extend the life of your existing turbomachinery controls with zero logic reprogramming.
