Description
Product Introduction & Engineering Value
The GE DS3815PLNC1G1A is a legacy GE DS3815-series printed circuit board identified by the PLNC family and C1G1A configuration. These boards are typically maintained as individual spare PCBs in older control installations where replacing the entire control platform is not practical during routine maintenance.
For procurement, use the complete part number. A DS3815 board with a similar appearance or a related PLNC designation should not be considered a direct substitute without confirming the electrical function, configuration, connector arrangement, and installed-system documentation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric |
| Part Number | DS3815PLNC1G1A |
| Product Family | DS3815 |
| Board Family | DS3815PLNC |
| Board Type | Industrial control circuit board |
| Configuration | C1G1A |
| Technology Generation | Legacy GE control electronics |
| PCB Format | Plug-in printed circuit board |
| Primary Application | GE legacy industrial control equipment |
| Replacement Method | Exact part-number verification |
| Typical Stock Conditions | New surplus, refurbished, or used |
| Maintenance Approach | Visual inspection, electrical screening, and application-specific testing |
Technical caution: Public technical information for the exact DS3815PLNC1G1A is limited. Exact circuit function, electrical ratings, signal characteristics, connector pinouts, I/O assignments, and host-system compatibility should be confirmed from the applicable GE documentation or original equipment drawings. Do not infer detailed specifications from the PLNC family designation alone.
Field Application & the “Trench” Experience
With legacy GE equipment, the wrong replacement can create a second fault instead of fixing the first.
Consider a planned outage where a maintenance team has identified a failed DS3815PLNC1G1A. A similar DS3815 PCB is already sitting in the storeroom. It fits the cabinet and looks almost identical, but its complete configuration number does not match.
The technician checks the original label, board layout, connectors, configuration components, and cabinet documentation before making the decision. The similar board is rejected. An exact-match spare is sourced and screened before installation.
That extra verification is cheap insurance when working on equipment with limited documentation and long service histories.
Niche application scenarios
- Legacy GE control cabinets: replacement of a failed PLNC-series PCB within an existing DS3815 installation.
- Planned turbine or process-equipment outages: pre-staging and testing an exact-match control PCB before shutdown.
- Obsolescence management: maintaining board-level spares for legacy GE equipment while longer-term migration is evaluated.

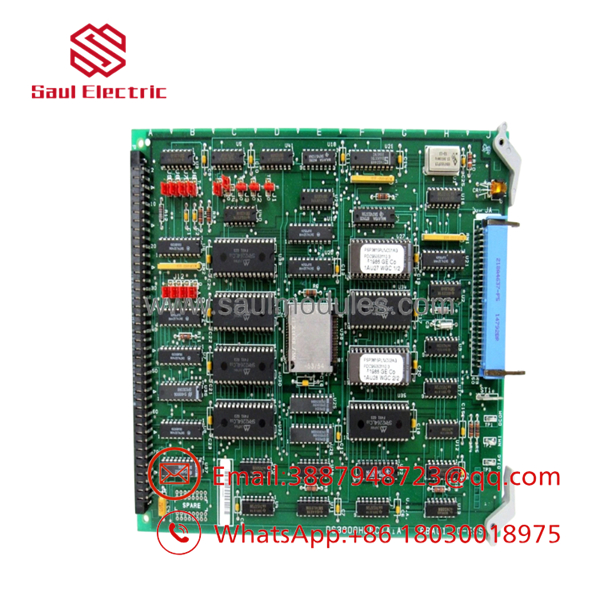

DS3815PLNC1G1A
Transparency SOP: QA & Testing
A practical QA process for the DS3815PLNC1G1A should include:
- Identification check — Confirm
DS3815PLNC1G1A, board family, and all available revision markings. - Physical inspection — Examine the PCB, ICs, passive components, connectors, solder joints, traces, and mounting points.
- Configuration verification — Record jumpers, switches, and other configurable components where applicable.
- Electrical screening — Check for shorts, abnormal resistance paths, corrosion, contamination, and visible thermal or electrical damage.
- Functional testing — Where compatible GE test equipment is available, verify the board’s application-specific operation.
- Traceability — Record the unit’s condition, test scope, serial information when available, and warranty status.
For New Surplus inventory, request confirmation that the actual PCB has not been installed, repaired, or modified.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Don’t order “DS3815 PLNC” alone.
The complete designation should be matched against the original board.
⚠️ Trap #2 — Physical fit is not electrical compatibility.
A board can mount correctly and still have different circuitry, configuration, or signal assignments.
PRO TIP: Photograph the original PCB before removal. Capture the identification label, connectors, jumpers, switches, and cabinet position.
⚠️ Trap #3 — Be precise about testing.
“Tested” can mean nothing more than a visual inspection. Ask whether the board received electrical screening or functional testing in a compatible system.
Dynamic FAQ
What is the GE DS3815PLNC1G1A?
The is a GE DS3815-series industrial control PCB belonging to the PLNC board family.
What system is the DS3815PLNC1G1A used in?
It is associated with GE’s legacy DS3815 control hardware. The exact host-system role should be confirmed from the installed equipment documentation.
Can another DS3815 or PLNC board replace it?
Not automatically. Verify the complete part number, configuration, revision, connector arrangement, electrical characteristics, and application before substitution.
What information should I provide when sourcing this board?
Provide the complete part number, clear photographs of the original PCB and labels, revision markings, cabinet location, and the associated GE equipment model if available.
How can I verify New Surplus authenticity?
Request photographs of the actual inventory unit and written confirmation of its service history. Confirm whether it has ever been installed, repaired, modified, or functionally tested.
What warranty terms should I confirm?
Confirm the warranty duration, DOA coverage, return conditions, and test documentation. The supplier should clearly distinguish New Surplus, Refurbished, and Used condition and state what testing was actually performed.
