Description
Product Introduction
The GE Fanuc IC693CHS392 is a 10-slot main CPU baseplate designed as the foundation for Series 90-30 PLC systems. Unlike expansion-only racks, this primary baseplate features dedicated backplane circuitry specifically built to house plug-in Modular CPUs (such as the IC693CPU350, CPU360, CPU364, or CPU374) in Slot 1 alongside a standard Series 90-30 power supply.
Equipped with a 25-pin D-sub female expansion connector on the right side, the IC693CHS392 allows seamless connection to downstream expansion baseplates (like the IC693CHS391) via standard IC693CBL cables. It provides high-speed backplane data buses, ground shielding, and power distribution across all 9 remaining option slots for digital, analog, and communication cards.
Key Technical Specifications
| Parameter | Specification |
| Total Module Slots | 10 slots (Slot 0 for Power Supply, Slot 1 for CPU, Slots 2–10 for I/O and Option Modules) |
| Power Supply Slot | Left-hand dedicated slot (accepts IC693PWR321, PWR330, PWR322) |
| CPU Compatibility | Accepts Modular CPUs (IC693CPU350, CPU351, CPU352, CPU360, CPU363, CPU364, CPU374) |
| Expansion Port | 25-pin D-sub female expansion port (Right side) |
| Baseplate Type | Main CPU Baseplate (Supports Local and Remote Expansion) |
| Expansion Chain Limit | Connects to up to 4 local expansion baseplates (50 ft / 15 m total cable length) |
| Dimensions (W x H x D) | 17.4 in x 5.12 in x 5.5 in (442 mm x 130 mm x 140 mm) |
| Mounting | Panel mount via 4 corner holes or standard 19-inch rack adapter |
| Backplane Current Capacity | Driven by installed power supply module |
| Grounding | Dedicated frame ground screw terminal on chassis base |
Application Scenarios & The “Trench” Experience
It was 1:30 AM at a high-speed automotive stamping plant when a cooling line rupture leaked glycol mixture directly into the main control cabinet. The liquid soaked through the CPU rack, causing severe electrical tracking across the backplane traces of the primary chassis. The CPU crashed, throwing unrecoverable bus errors and bringing two robotic welding cells to a complete standstill. The shift team had to completely strip the flooded chassis and swap in a dry primary CPU baseplate to get the line back up before the morning shift.
Application Scenarios
- Central Control Cabinets: Functions as the primary CPU rack in large plant architectures, orchestrating local and remote I/O subsystems.
- Complex Motion & Safety Cells: Houses high-speed counter modules, axis positioning modules, and communication processors alongside the main CPU.
- Process Automation Systems: Serves as the central controller rack for multi-stage chemical mixing, managing continuous PID loops and batch logic.
- Distributed Material Handling: Coordinates high-volume sorting lines by linking central Modular CPUs directly to local and remote expansion bases.
Field Case Study
A grain elevator terminal in Iowa suffered a lightning strike that surged through an ungrounded expansion cable, burning out the backplane bus transceivers on the primary IC693CHS392 baseplate. The CPU could no longer detect any I/O cards in slots 4 through 10, completely disabling the grain leg conveyors during peak harvest season at a cost of $22,000 per hour in idle trucking delays. We pulled a pre-tested surplus IC693CHS392 baseplate from stock and expedited it via local courier. The site technician unmounted the damaged rack, transferred the CPU, power supply, and I/O modules, connected the ground wire, and restored full terminal operation in under an hour.

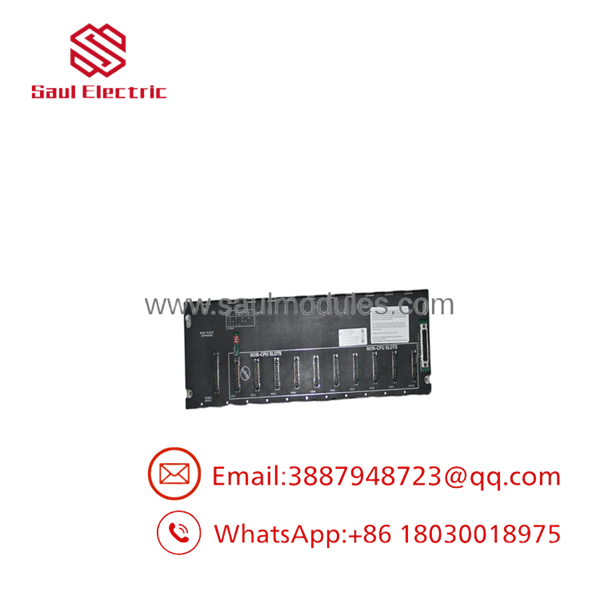

IC693CHS392

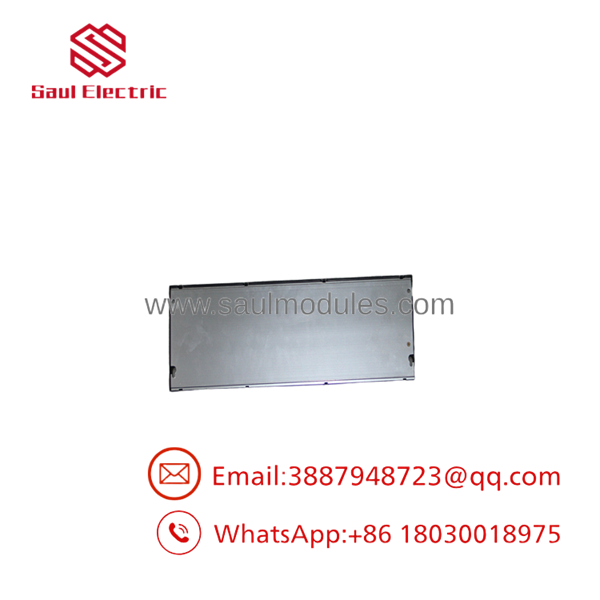

IC693CHS392

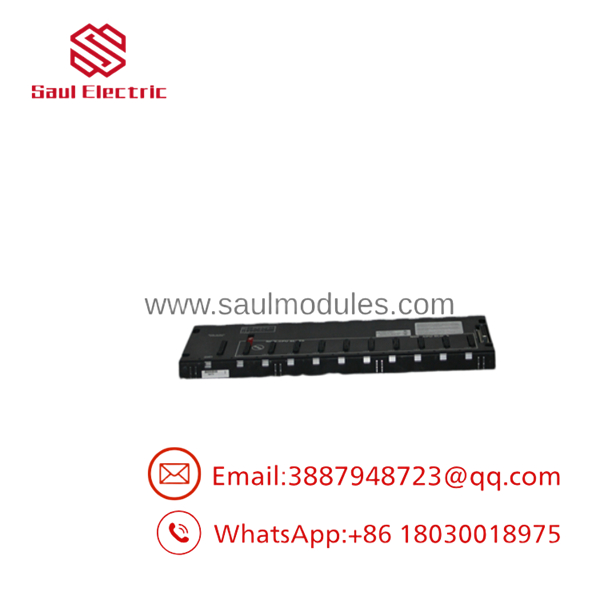

IC693CHS392
Transparency SOP: Quality Assurance & Testing
Every IC693CHS392 baseplate undergoes strict physical and live functional testing on actual GE hardware before entering our ready-to-ship inventory.
- Inbound Visual Inspection: Detailed check for cracked housing plastic, bent or corroded backplane connector pins across all 10 slots, and terminal ground thread integrity.
- Pin-to-Pin Bus Continuity Test: Complete resistance checking on the 25-pin expansion port and internal backplane power/data tracks to ensure zero trace degradation.
- Live CPU & I/O Benchmark: Mounted to a test panel, populated with an IC693PWR330 power supply, an IC693CPU374 modular CPU in Slot 1, and 8 active digital/analog I/O cards to verify 100% slot recognition and diagnostic handshakes.
- Expansion Bus Verification: Connected via an IC693CBL300 cable to a secondary expansion rack (IC693CHS391) to confirm error-free data transfer across the expansion bus interface.
- Anti-Static Sealing & Packaging: Diagnostic buffers are cleared, and the baseplate is sealed inside a heavy-duty ESD shielding bag with custom impact-absorbing foam packaging.
The Veteran’s Tech Trap Guide
- ⚠️ Slot 1 is Strictly Reserved for Modular CPUs: Unlike embedded CPU baseplates (such as the IC693CHS397), the IC693CHS392 requires a Modular CPU installed specifically in Slot 1. Attempting to place an I/O card or option module in Slot 1 will prevent system boot and can trigger hardware configuration faults.
- ❗ Never Connect or Disconnect Expansion Cables Live: The Series 90-30 backplane expansion bus is not hot-swappable! Disconnecting or plugging in the 25-pin expansion cable while power is applied will instantly trip the CPU and risks permanently frying the bus transceiver ICs on the baseplate board.
- ⚠️ Verify Proper Frame Grounding: Always land a solid, low-impedance ground wire directly to the chassis ground stud on the lower left corner of the baseplate. Poor grounding allows high-frequency electrical noise from surrounding VFDs to feed onto the backplane bus, leading to random CPU faults and false analog readings.
- ❗ Mind the Expansion Termination: If you run an expansion cable from the ‘s 25-pin port to an expansion rack, ensure the last expansion rack in the daisy chain has proper bus termination installed. Running an open expansion chain causes signal reflection and intermittent bus loss timeouts.
Frequently Asked Questions (FAQ for Conversion)
Q: What is the main difference between the and the IC693CHS397 baseplate?
A: The uses a separate Modular CPU inserted into Slot 1 (such as a CPU364 or CPU374). The IC693CHS397 features an Embedded CPU built directly onto the baseplate circuit board itself.
Q: Can I use the as a standalone rack without expansion baseplates?
A: Yes. The operates perfectly as a single, standalone 10-slot controller rack. If no expansion racks are connected, you do not need to populate the 25-pin expansion port.
Q: Is the GE Fanuc hot-swappable?
A: No. The Series 90-30 architecture does not support hot-swapping baseplates or modules. Always disconnect main power to the rack before installing or removing the baseplate or any attached cards.
Q: What power supplies are compatible with this baseplate?
A: The accepts all standard Series 90-30 power supply modules in its left-hand slot, including the IC693PWR321 (120/240VAC standard), IC693PWR330 (120/240VAC high-capacity), and IC693PWR322 (24VDC input).
Q: What warranty is included with this surplus baseplate?
A: Every baseplate includes a full 12-month replacement warranty. All units are authentic GE Fanuc surplus equipment, fully cleaned, inspected, and bench-tested under full CPU and I/O load before shipping.
