Description
Product Introduction & Engineering Value

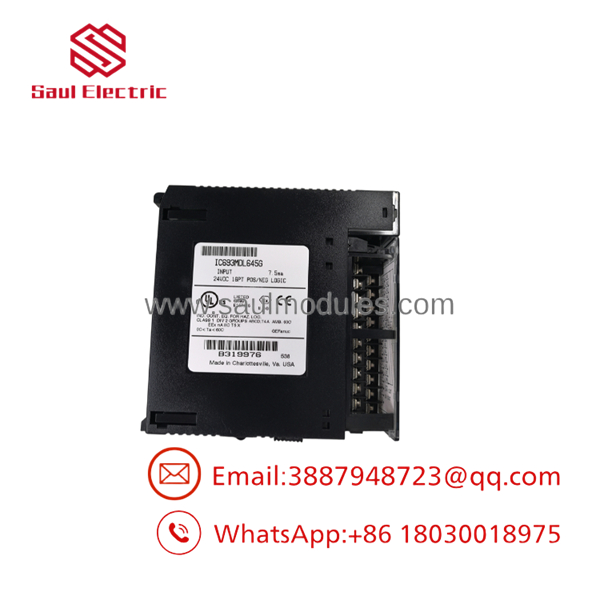

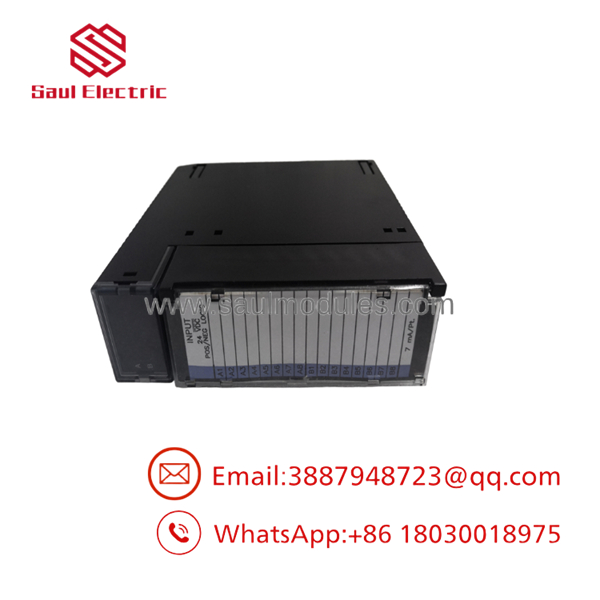

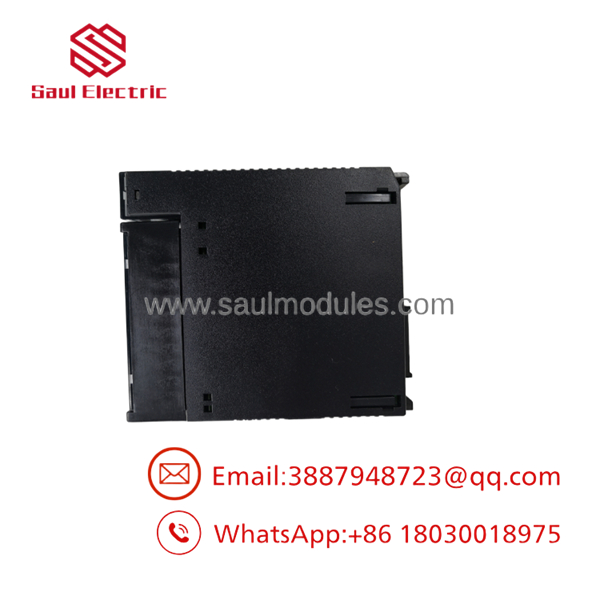

Field wiring setups in legacy industrial control panels rarely follow a single standard. The GE Fanuc IC693MDL645 handles this real-world headache by accommodating both positive logic (sinking) and negative logic (sourcing) 24 VDC field devices on a single 16-point card. It plugs into any standard I/O slot of a Series 90-30 baseplate, providing a flexible interface for proximity switches, pushbuttons, float controls, and optical sensors.
Designed with reactive filtering to dampen mechanical contact bounce and electrical noise, the IC693MDL645 ensures crisp digital status reporting to the CPU. The module features 1,500 VAC optical isolation between field terminals and the internal backplane, shielding sensitive processor logic from ground potential shifts and voltage surges. For plants running Series 90-30 hardware, keeping a spare IC693MDL645 on hand is a cost-effective way to preserve system uptime.
Technical Specifications
| Parameter | Specification Details |
| Inputs per Module: | 16 points (1 isolated group with common return) |
| Nominal Voltage: | 24 VDC |
| Input Voltage Range: | 0 to +30 VDC (Positive) / 0 to -30 VDC (Negative) |
| ON-State Voltage: | +11.5 to +30 VDC (Sinking) / -11.5 to -30 VDC (Sourcing) |
| OFF-State Voltage: | 0 to +5 VDC (Sinking) / 0 to -5 VDC (Sourcing) |
| Input Current: | 7.0 mA typical per point at 24 VDC |
| Input Impedance: | 3.2 k\Omega typical |
| Filter Response Time: | 7.0 ms typical (2.0 ms minimum to 12.0 ms maximum) |
| Isolation Rating: | 1,500 VAC logic-to-field isolation / 500 VAC point-to-point |
| Backplane Power Draw: | 80 mA maximum from +5 VDC bus rail |
Field Application & The “Trench” Experience
The Corrugator Line Sensor Meltdown
At a high-volume corrugated box manufacturing plant, a short circuit in a wet-end spray valve harness sent an unexpected 24V ground loop back into a Series 90-30 main rack. The voltage transient wiped out four input channels on an original IC693MDL645 card, causing the main feed conveyor to freeze and lock the plant out of automatic mode.
The shift technician pulled a pre-tested IC693MDL645 from spare stock. Because Series 90-30 modules use removable terminal blocks, they flipped open the terminal cover, backed out the top and bottom retaining screws, and lifted the wired terminal block off the damaged card. They swapped the card in slot 4, snapped the original terminal block onto the new module, and tightened the latch screws. The entire repair took under ten minutes without requiring a single wire to be disconnected or re-labeled.
Common Field Deployment Scenarios
- Automated Palletizer Cells: Interfacing mixed PNP photo-eyes and mechanical limit switches across a shared 24V power supply rail.
- Grain Handling Elevators: Capturing belt misalignment and bearing temperature alarm contacts over long cable runs.
- Cooling Tower Water Treatment: Reading digital flow switch contacts and tank level floats into a central Series 90-30 PLC.
- IC693MDL645
Transparency SOP: QA & Testing
[1. Structural Audit] ──> [2. Power Rail & Opto Check] ──> [3. 16-Pt Signal Sweep] ──> [4. Live Rack Stress Test]
- Structural & Mechanical Inspection: We inspect the module plastic housing for cracked latches, verify that all backplane edge-connector pins are clean and free of oxidation, and confirm the removable terminal block mechanism snaps securely into place.
- Backplane Current Verification: The card is installed in a Series 90-30 baseplate and powered at 5.0 VDC to confirm backplane logic current draw stays well within the 80 mA maximum specification.
- 16-Point Sinking & Sourcing Sweep: Using a calibrated DC power source, we toggle each of the 16 channels individually across both +24 VDC and -24 VDC polarities. We verify that input LEDs illuminate consistently and that the ON/OFF switching thresholds match factory limits (V_{ON} \ge 11.5V, V_{OFF} \le 5V).
- Live CPU Backplane Handshake: The module is seated in an
IC693CHS391rack driven by anIC693CPU363processor. We run a continuous I/O scan loop under full load to confirm zero backplane noise or bit drops.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ TRAP 1: Grouped Common Restrictions (Cannot Mix PNP & NPN on One Card)
Although the supports both positive logic (PNP) and negative logic (NPN) sensors, all 16 points share a single common return terminal (Terminal 1). You cannot mix sourcing and sinking field devices on the same physical module. All 16 devices wired to an board must use identical signal polarity.
⚠️ TRAP 2: 7ms Input Filter Delays on High-Speed Counting
The internal RC filter circuit on the imposes a ~7 ms delay on input state transitions to suppress contact chatter. If you attempt to use this card for high-speed pulse applications—such as reading a 1 kHz shaft encoder or high-speed turbine flowmeter—signals will be missed completely. Use the High-Speed Counter module (
IC693APM300) or a fast-input module (IC693MDL654) for pulse rates above 50 Hz.
PRO TIP: Removable Terminal Block Hardware Tip
When removing the front terminal block from an , turn the top and bottom retaining screws counter-clockwise until they fully disengage from the card housing, then pull straight out. Forcing the block without backing out the screws will break the plastic mounting tabs on the module faceplate!
Dynamic FAQ
Q: What is the main difference between the and the IC693MDL646?
A: The is a 16-point 24 VDC input module with 1 shared common terminal. The IC693MDL646 is a 24 VDC input module with 16 points divided into 2 isolated groups of 8 points each, allowing you to run two different power sources or polarities on a single card.
Q: Do I need to reconfigure host CPU software when replacing an older revision of this card?
A: No. The is 100% backward compatible across all hardware revision letters (A through K). It drops straight into the same baseplate slot and uses identical I/O mapping (%I addresses) in Proficy Machine Edition, VersaPro, or Logicmaster 90-30.
Q: Can I run 12 VDC input signals into this card?
A: No. The minimum turn-on voltage for the is 11.5 VDC. A 12V supply running near its lower tolerance edge (e.g., 11.0V) will cause intermittent channel dropouts. For 12V applications, use the IC693MDL634 module instead.
Q: Does the require external power to operate its internal logic?
A: No. The internal optocouplers and logic circuits draw power (80 mA max) directly from the Series 90-30 backplane +5 VDC bus rail. However, your field field switches and sensors require an external 24 VDC power supply wired through the terminal block.
Q: What warranty is provided with your surplus or refurbished modules?
A: Every module—whether certified new surplus or fully refurbished—undergoes 16-point voltage testing and ships with our 12-month full-replacement warranty in anti-static protective packaging.
