Product Introduction & Engineering Value
I’ve seen plenty of retrofits stall out simply because instrument technicians spent days wrestling with external signal transmitters to adapt basic voltage sensors onto a control rack. The GE PACSystems RX3i IC694ALG222 sidesteps those wiring bottlenecks by giving you 16 high-density voltage input channels in a single, compact RX3i slot width.
Each input channel processes incoming field voltage signals into a 12-bit binary value, providing fast data conversion with minimal backplane overhead. Software configurable via PAC Machine Edition, it lets you select between unipolar (0 to 10V) and bipolar (-10 to +10V) operation per group—making it a workhorse for legacy upgrades and high-channel-count monitoring systems alike.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Input Channels | 16 Single-Ended Channels |
| Input Voltage Ranges | 0 to +10 VDC (Unipolar) / -10 to +10 VDC (Bipolar) |
| A/D Resolution | 12 bits (1 part in 4096) |
| Update Rate | 5 ms (all 16 channels converted per scan) |
| Input Impedance | > 100k Ohms |
| Cross-Channel Isolation | Isolation provided between field wiring and RX3i backplane |
| Backplane Current Draw | 112 mA @ 5 VDC / 56 mA @ 24 VDC isolated |
| Configurable Filters | Digital filtering available per channel group in software |
| Terminal Block Type | 36-Pin Removable Terminal Block (IC694TBR032 or IC694TBC032) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Field Application & The “Trench” Experience
The Trench Story: A paper mill’s reel winder drive section kept throwing random speed synchronization faults during ramp-up. The maintenance log pointed to erratic line speed readings on an old analog tachometer card. Rather than recabling the entire encoder network, the lead automation engineer dropped an IC694ALG222 into an empty RX3i slot, wired the 0-10V drive speed feedback channels through a shielded terminal block, enabled the module’s configurable digital filtering in PAC Machine Edition, and smoothed out signal noise spikes in under an hour.
- Hydraulic Press Position Feedback: Reading multi-axis linear potentiometer signals (0–10V) on high-speed stamping presses.
- HVAC Chiller Plant Monitoring: Gathering 2–10V differential pressure transducer outputs across multi-chiller headers.
- Turbine Speed Regulation: Real-time logging of tachometer generator 0–10V signals for overspeed interlock verification.

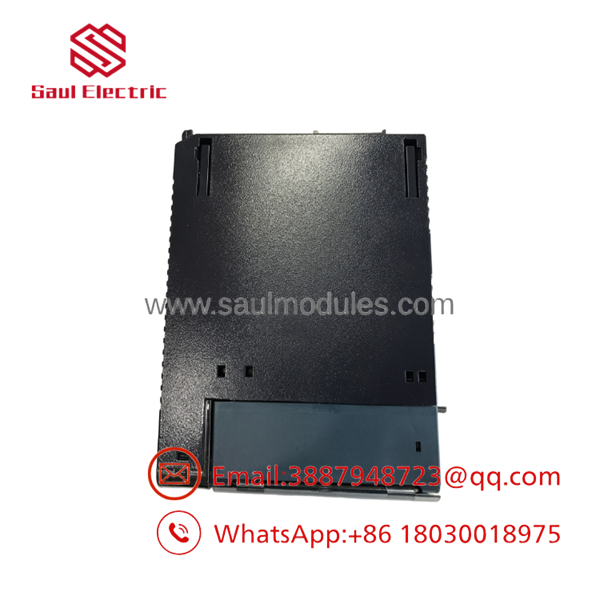

- IC694ALG222

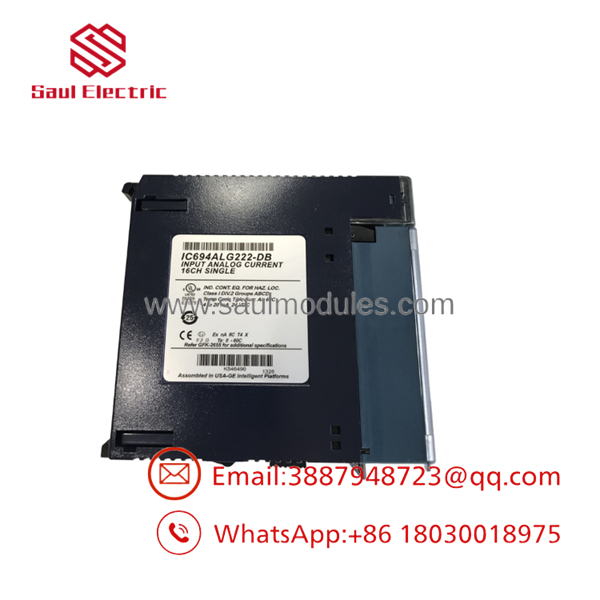

- IC694ALG222
Transparency SOP: QA & Testing
- Connector & Housing Inspection: Detailed physical check of the RX3i backplane connector pins, guide rails, terminal latching tabs, and side-label model keys.
- Backplane Power-Up Diagnostics: Installation into a PACSystems RX3i universal baseplate (IC695CHS012) to verify module recognition, LED status lights, and firmware handshake.
- Multi-Point Signal Calibration: A precision DC voltage source injects calibration steps (0V, 2.5V, 5V, 7.5V, 10V unipolar and -10V to +10V bipolar) across all 16 channels simultaneously.
- Noise & Isolation Test: Verifying channel-to-backplane isolation and validating digital filter response curves under simulated electrical noise.
- Thermal Burn-In: Extended 24-hour run under full channel load inside an environmental test chamber at elevated operating temperatures.
The Veteran’s Tech Trap Guide
⚠️ Common Grounding Pitfalls: Remember that the IC694ALG222 provides single-ended inputs. All 16 channels share common return references. If your field transmitters have grounded outputs at different earth potentials, ground loop currents will corrupt your raw analog counts. Always use isolated power supplies or signal isolators if field devices ground at separate points.
⚠️ Configurator Register Offsets: When configuring channel mapping in PAC Machine Edition, ensure your analog input starting address (%AI) doesn’t overlap existing analog blocks or expansion racks. An overlapping %AI range will silently overwrite input registers without triggering an immediate system fault.
PRO TIP: Do not hot-insert the 36-pin terminal block onto the module while field 24 VDC power or signal lines are live. Arc flash or pin misalignments during hot insertion can damage the sensitive analog-to-digital converter (ADC) multiplexer chips on the internal board.
Dynamic FAQ
Q: Can I use 4-20 mA current loops directly with the IC694ALG222? A: Not directly. The is natively a voltage-input card (0–10V or ±10V). To read 4–20 mA loops, you must install precision external 250-Ohm resistors across the input terminals to convert 4–20 mA into 1–5 VDC, or select a dedicated current input module like the IC694ALG223.
Q: Does this module require an external 24 VDC power source to operate? A: Yes. While logic power comes from the RX3i backplane, the internal analog processing circuitry requires 24 VDC user field power supplied to the module’s terminal block.
Q: What is the main difference between Series 90-30 modules (IC693) and RX3i modules (IC694)? A: IC694 modules are designed specifically for the PACSystems RX3i platform. While IC693 modules can run in RX3i baseplates, IC694 series modules take full advantage of RX3i high-speed backplane communications and updated firmware features.
Q: How do you package and ship “New Surplus” or “Refurbished” units? A: Every module is fully tested, sealed in anti-static ESD shielding, packed with custom conductive foam, and backed by a full replacement warranty to ensure drop-in readiness on your shop floor.
