GE G650BFBF2G0HI Multilin Generator Protection Relay

Description

Product Introduction & Engineering Value

Fault clearing delays on generator stator windings lead directly to core lamination melting and multi-week unplanned outages. The GE Multilin G650BFBF2G0HI delivers comprehensive generator protection (including stator differential, reverse power, loss of excitation, and 100% stator earth fault) integrated with full bay management in a compact draw-out case.

Engineered with conformal-coated circuit boards and a high-voltage auxiliary power supply, this unit withstands aggressive industrial atmospheres like paper mills and offshore platforms. Its FlexLogic processing engine allows site engineers to execute custom interlock schemes directly inside the relay, eliminating external lockout relays and auxiliary wiring.

Technical Specifications

• Phase / Ground CT Rating (B): 1A Phase CTs / 1A Ground CTs
• Control Power Supply (HI): 110–250 VDC / 110–230 VAC high-voltage power supply
• Display / UI (F): Large graphical LCD display with control keys & status LEDs
• Language Package (B): English / Multilingual display support
• Digital I/O Layout (F): 16 Digital Inputs / 8 Form A Relay Outputs
• Logic / Control Option (2): Advanced Control with FlexLogic programmable logic engine
• Conformal Coating (G): Harsh environment conformal-coated PCBs (Class G3 environment rated)
• Rear Comms Port 1 (0): No first rear port populated
• Rear Comms Port 2 (HI / Standard): RS485 / Redundant serial communications
• Enclosure / Mounting: Draw-out chassis with IP54 front panel protection

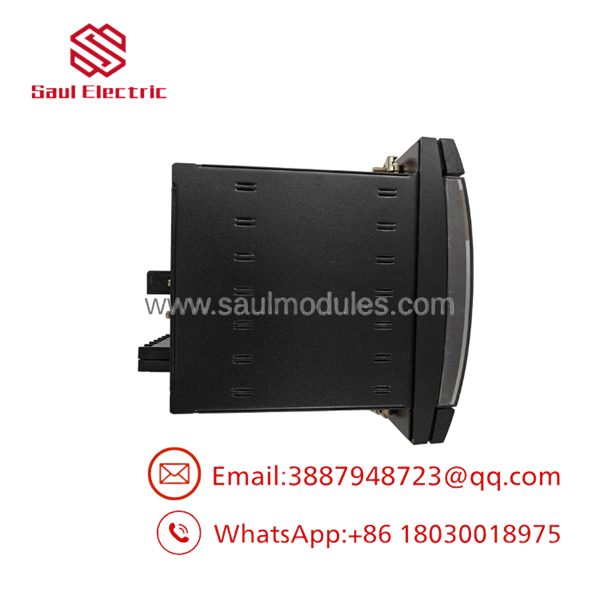

G650BFBF2G0HI

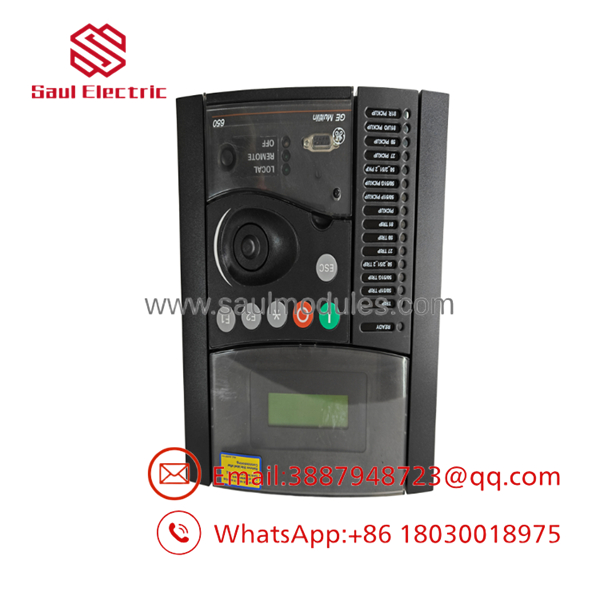

G650BFBF2G0HI

Field Application & The “Trench” Experience

The Trench Story: A 15 MW co-generation plant tripped intermittently on reverse power (32) during steam header pressure drops. The legacy analog relay couldn’t maintain tight timing margins under variable power factors, resulting in nuisance trips that knocked the plant off-grid. Replacing the legacy panel with a G650BFBF2G0HI allowed the team to program a two-stage directional power element tied to turbine stop-valve limit switches via FlexLogic. Reverse power false-trips were eliminated completely, while real reverse-power motoring conditions remained fully protected.

Niche Application Scenarios

• Industrial Co-Generation Stator Protection: Monitors small-to-medium synchronous generators tied to utility grids for internal faults and loss of excitation (40).
• Offshore Platform Emergency Generator Control: High-corrosion environment protection utilizing conformal-coated hardware to resist salt air degradation.
• Large Induction Motor Protection: Serves as a primary protection relay for high-horsepower MV motors requiring differential and thermal overload monitoring.

Transparency SOP: QA & Testing

1. Power Supply Integrity Test: High-voltage DC sweep (90V to 280V) with continuous thermal monitoring to confirm power supply stability under sagging station batteries.
2. Current & Voltage Secondary Injection: Multi-channel OMICRON injection verifying 1A CT accuracy, pickup curves, and phase angle calculations across differential and directional power elements.
3. Opto-Input & Output Relay Mapping: High-potential insulation testing on all 16 digital inputs and contact resistance checks on all 8 Form A output relays.
4. FlexLogic & Firmware Verification: Diagnostic EPROM check and memory clearing to restore unit to factory configuration state.
5. Cleanroom Packaging: Ultrasonic terminal cleaning followed by ESD-safe vacuum sealing with desiccant.

The Veteran’s Tech Trap Guide

• ⚠️ Verify Phase CT Ratings (B vs. N Code): Note that this model code (G650BFBF2G0HI) specifies 1A Phase CT inputs (represented by the first B). Installing this unit into a 5A secondary CT circuit will blind the relay to actual fault levels (reading 1/5th of actual current), preventing overcurrent and differential elements from tripping during a real fault!
• PRO TIP: Check CT Shorting Blade Engagement: When inserting or withdrawing the G650 draw-out chassis, always visually confirm the internal case CT shorting switches engage properly. Never pull the chassis under load without first closing external test blocks (e.g., FT-1 switches) to guarantee the 1A CT secondaries are not open-circuited.
• ⚠️ FlexLogic Equations Don’t Auto-Convert: If you are migrating a configuration from an F650 (Feeder relay) to a G650 (Generator relay), do not copy the configuration file directly. Generator-specific protection elements (e.g., 24 Volts/Hz, 32 Reverse Power, 40 Loss of Field) use different internal mapping registers in GE EnerVista. Re-bind your FlexLogic equations manually.

Dynamic FAQ

Q: What is the main difference between the G650 and the F650 series relays?

A: While sharing the same physical chassis and interface, the G650 is specifically tailored for generator protection (including elements like Volts/Hz, reverse power, and loss of excitation), whereas the F650 focuses on feeder protection and auto-reclosing.

Q: Does the G650BFBF2G0HI support Ethernet communication protocols like Modbus TCP or IEC 61850?

A: No, this specific order code features option 0 for Rear Port 1, meaning it does not have the dual Ethernet module installed. It relies on serial communication for SCADA integration.

Q: What does the G in the ordering code stand for?

A: The G specifies that all internal printed circuit boards are treated with a harsh-environment conformal coating, protecting components against corrosive gases, dust, and high humidity.

Q: Can this relay operate on a 120 VAC station service auxiliary supply?

A: Yes. The HI power supply is a universal high-range module rated for 110–250 VDC and 110–230 VAC, allowing it to run off AC station power or DC battery banks.

Q: What warranty comes with this replacement G650 unit?

A: All units are fully bench-tested and ship with a comprehensive 12-month replacement warranty covering hardware, display functionality, and protection element accuracy.
