3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Channels | 4 isolated analog outputs |
| Output Range | ±10 V DC |
| Resolution | 14-bit (13 bits + sign) |
| Isolation | 1500 VAC RMS channel-to-channel and to ground |
| Update Rate | Module dependent |
| Power Consumption | Approx. 100 mA @ 5 VDC, 120 mA @ 24 VDC |
| Operating Temperature | Standard Series 90-30 range |
4. Product Introduction
The Horner HE693DAC410C is a 4-channel isolated analog output module for the GE Series 90-30 PLC system. It provides high-resolution ±10 V DC outputs with full channel-to-channel and channel-to-ground isolation.
Control engineers select this module for precise analog control of valves, drives, and actuators in industrial processes. The isolation reduces noise and ground loop issues. Confirm rack power budget and output scaling in your PLC program before installation.

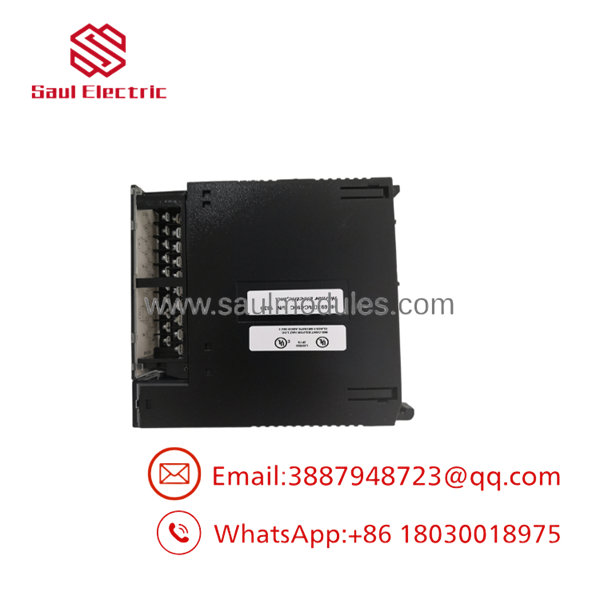

- HE693DAC410C

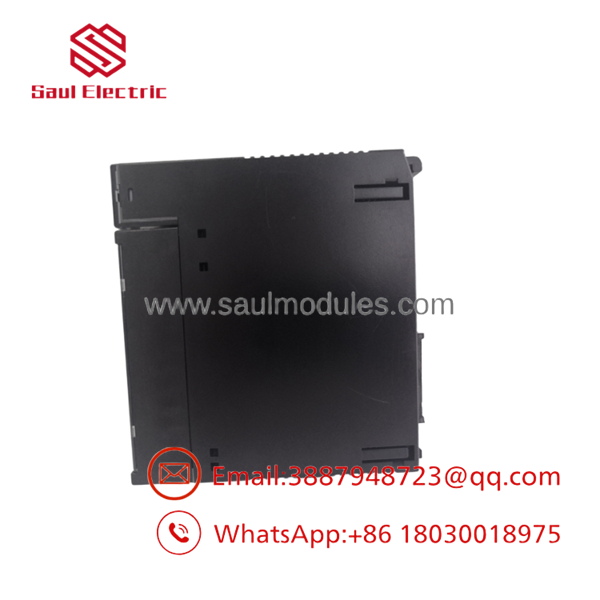

- HE693DAC410C
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No output signal | Configuration or wiring | High | Verify PLC output word | Check program scaling and terminals |
| Erratic output | Noise or isolation breach | High | Measure output with multimeter | Improve shielding and grounding |
| Module fault LED | Overcurrent or power issue | Medium | Check rack power | Verify total module draw |
| Incorrect voltage | Scaling error | Medium | Compare commanded vs measured | Adjust engineering units in logic |
| Communication loss | Backplane fault | Low | Test adjacent modules | Reseat or replace module |
If diagnostics point to the module, contact support with PLC program snippet and measured outputs.
6. Frequently Asked Questions (FAQ)
Is this unit new original stock or refurbished? This is New Original / New Surplus from authorized channels. It ships in original packaging with full traceability.
What voltage range does it support? ±10 V DC outputs with 14-bit resolution across 4 isolated channels.
Is the module hot-swappable? No. Power down the rack for safe replacement in Series 90-30 systems.
How long is the warranty? We provide a 1-year warranty on tested functional units.
Will this serve as a direct replacement? Yes for HE693DAC410 applications. Confirm revision and output range match.
What comes in the box? The analog output module with QC test report. Additional documentation on request.
