Product Introduction & Engineering Value
Replacing an entire Genius I/O block is often unnecessary when only the electronics have failed. The GE IC660ERD025B allows maintenance teams to retain the existing terminal assembly and field wiring while replacing only the intelligent electronics section, reducing downtime and minimizing wiring errors.
Designed for the GE Genius distributed I/O platform, the IC660ERD025B manages network communication, discrete I/O processing, diagnostics, and protection functions while interfacing directly with the existing terminal assembly. This modular design has long been valued in facilities where maintenance windows are measured in hours rather than days.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc |
| Model | IC660ERD025B |
| Product Family | Genius I/O |
| Product Type | Electronics Assembly |
| Compatible System | GE Genius Distributed I/O |
| Compatible Block Type | 32-Circuit DC Genius I/O Terminal Assembly |
| Internal Supply Voltage | 5 VDC Electronics Supply |
| Maximum Output Current | 0.5 A per output point |
| Maximum Block Output Current | 16 A |
| Block-to-Block Isolation | 850 V |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 100°C (-40°F to 212°F) |
| Relative Humidity | 5–95%, non-condensing |
| Diagnostic Features | Genius Bus diagnostics, output fault detection, LED status indication |
Field Application & The “Trench” Experience
A beverage production facility experienced intermittent communication faults on a remote Genius I/O station controlling pallet conveyor zones. Because the terminal assembly and field wiring tested correctly, technicians replaced only the IC660ERD025B electronics assembly. The repair was completed without disconnecting dozens of field conductors, allowing production to resume before the scheduled maintenance window ended.
Typical applications include:
- High-speed packaging conveyor control
- Automotive assembly line remote I/O stations
- Material handling systems with distributed digital I/O

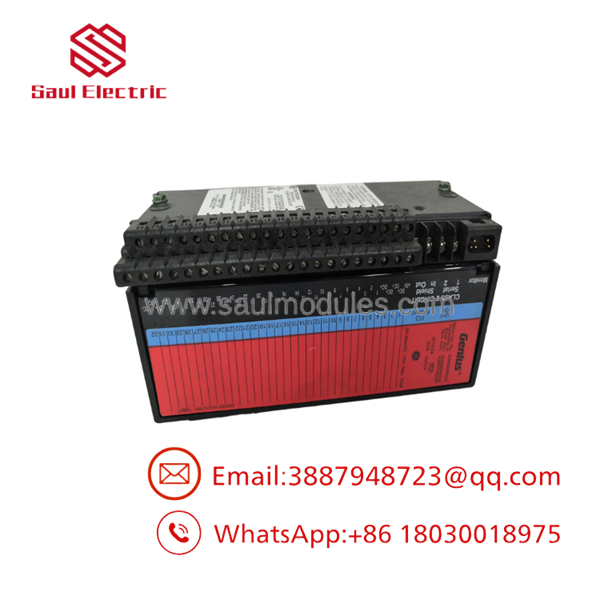

IC660ERD025B

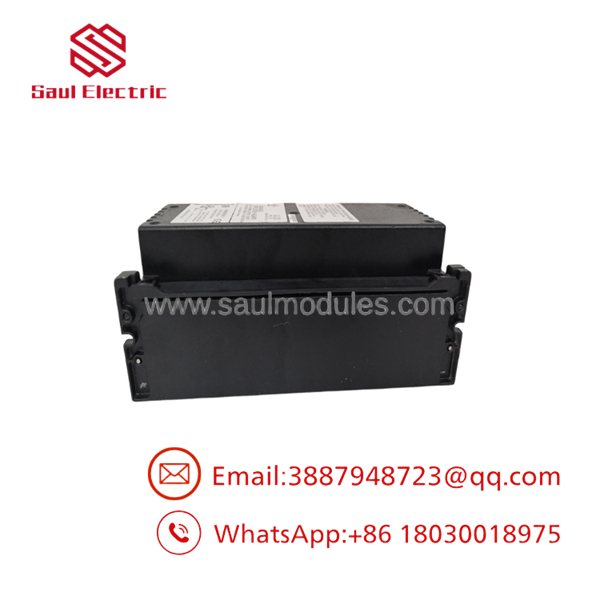

IC660ERD025B
Transparency SOP: QA & Testing
Every New Surplus or Refurbished IC660ERD025B undergoes a documented inspection before shipment.
- Verify the complete model number and hardware revision.
- Inspect PCB assemblies for component damage, corrosion, and repaired traces.
- Verify Genius Bus communication using a compatible test station.
- Test digital I/O processing and onboard diagnostics.
- Confirm LED indicators and communication status.
- Inspect connector edge contacts for wear or contamination.
- Package the module using anti-static materials and protective cushioning.
The Veteran’s Tech Trap Guide
⚠️ The Electronics Assembly Is Only Half of the Block
The IC660ERD025B is the removable electronics assembly. It must be installed onto the correct compatible Genius terminal assembly. Ordering the electronics assembly alone will not replace a damaged wiring base.
⚠️ Inspect the Edge Connector Carefully
Many intermittent Genius communication faults originate from oxidized connector contacts or damaged guide pins rather than failed electronics. Always inspect and clean both mating connectors before replacing the module.
PRO TIP: Before removing the electronics assembly, upload the Genius block configuration using a Hand-Held Monitor or engineering workstation. Restoring the saved configuration is significantly faster than manually recreating every channel after installation.
Dynamic FAQ
Q1. What is the ?
The is the removable electronics assembly used in compatible GE Genius 32-circuit distributed I/O blocks. It contains the processing electronics, diagnostics, and Genius Bus communication circuitry.
Q2. Does this module include the terminal assembly?
No. The is only the electronics portion. The field wiring terminal assembly is a separate component and is normally reused if it remains in good condition.
Q3. Can the electronics assembly be replaced without rewiring?
Yes. One of the primary advantages of the Genius I/O design is that the electronics assembly can usually be replaced while leaving the existing field wiring connected to the terminal assembly, reducing maintenance time.
Q4. Which systems are compatible with the ?
The module is designed for GE Genius distributed I/O systems used with controllers such as the Series 90-30, Series 90-70, and other Genius Bus-compatible GE automation platforms.
Q5. How are refurbished units tested?
Each refurbished unit is inspected for connector integrity, communication performance, digital I/O functionality, onboard diagnostics, LED operation, and overall electrical performance before shipment.
Q6. Are New Surplus units still available?
Yes. Because the Genius platform remains installed in many legacy industrial facilities, New Surplus and professionally refurbished modules are still available through specialized industrial automation suppliers, subject to inventory.
