Product Introduction & Engineering Value
A PLC can have a perfectly healthy CPU and fully functional I/O modules, yet the entire system can become unreliable because of a damaged backplane. Bent connectors, worn slot contacts, or backplane communication faults often create intermittent problems that are difficult to diagnose.
The GE IC693CHS39 baseplate family forms the physical and electrical foundation of the Series 90-30 PLC. It distributes backplane power, supports module communication, and provides secure mounting for CPUs, power supplies, communication modules, and I/O cards across both local and expansion racks.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (Emerson) |
| Product Family | IC693CHS39 Series |
| PLC Series | Series 90-30 |
| Product Type | Baseplate / Backplane |
| Available Versions | CPU, Expansion, and Remote Baseplates |
| Slot Options | 5-slot and 10-slot models |
| CPU Support | Dedicated CPU baseplate versions available |
| Expansion Distance | Up to 50 ft (15 m) for expansion baseplates |
| Remote Distance | Up to 700 ft (213 m) for remote baseplates |
| Power Distribution | Backplane power supplied through compatible Series 90-30 power supplies |
| Installation | Panel-mounted industrial control cabinet |
| Compatible Modules | Series 90-30 CPUs, I/O, communication, and specialty modules (with documented placement restrictions for certain modules) |

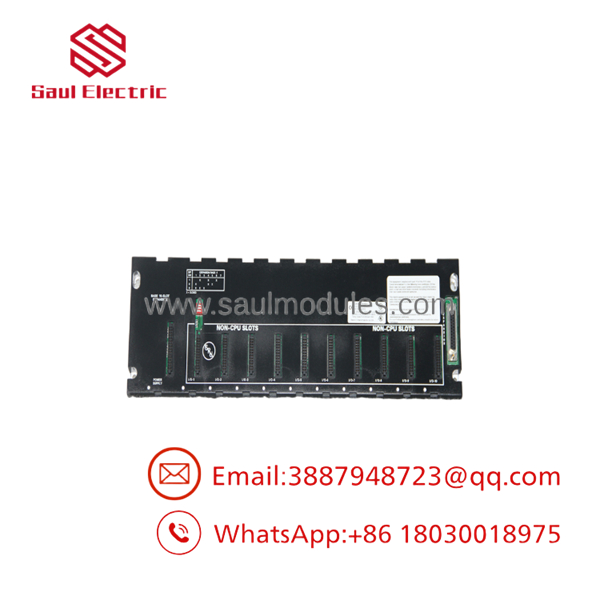

IC693CHS39

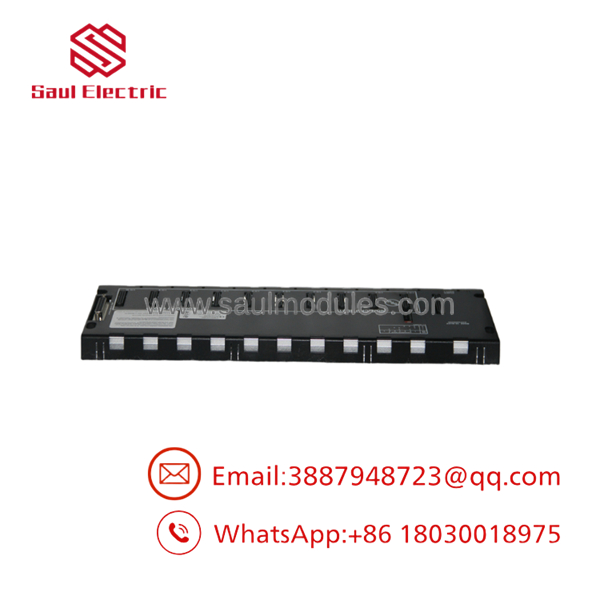

IC693CHS39
Field Application & The “Trench” Experience
During a scheduled shutdown at a food processing plant, technicians replaced several digital output modules to resolve intermittent machine stops. The problem persisted. After further inspection, they discovered hairline damage on the backplane connector of the existing baseplate caused by years of repeated module replacement.
Installing a replacement IC693CHS39 baseplate eliminated the communication faults immediately. The existing CPU and I/O modules were transferred without program changes, allowing production to resume before the next shift.
Typical applications include:
- High-speed packaging and conveyor automation
- Water treatment PLC control cabinets with expansion racks
- Power generation auxiliary equipment control
Transparency SOP: QA & Testing
Every baseplate is inspected before shipment using documented quality procedures.
- Confirm model number and hardware revision.
- Inspect all module connectors for bent pins, contamination, and mechanical wear.
- Verify backplane continuity and connector integrity.
- Install compatible CPU, power supply, and I/O modules to confirm proper seating and communication.
- Check rack addressing features where applicable.
- Package using ESD-safe materials and protective cushioning.
For New Surplus inventory, original unused condition is verified whenever factory packaging is available. Refurbished units receive additional functional validation before shipment.
The Veteran’s Tech Trap Guide
⚠️ Don’t Mix CPU and Expansion Baseplates
CPU baseplates and expansion baseplates serve different purposes. Installing a CPU into the wrong baseplate type will prevent normal system operation.
⚠️ Inspect the Backplane Connector Carefully
Many intermittent PLC faults originate from worn slot connectors rather than defective CPUs or I/O modules. Always inspect the connector before replacing expensive electronics.
PRO TIP: If multiple unrelated modules report communication faults simultaneously, suspect the baseplate or power distribution before replacing individual I/O cards.
⚠️ Verify Expansion Rack Numbering
Expansion and remote baseplates use rack addressing switches. Incorrect rack assignments can prevent the CPU from recognizing remote I/O correctly.
Dynamic FAQ
Q1. What is the purpose of the IC693CHS39 baseplate?
It provides the mounting structure, backplane communication, and power distribution for the Series 90-30 PLC system, allowing CPUs, power supplies, and I/O modules to operate as an integrated controller.
Q2. Are 5-slot and 10-slot versions available?
Yes. The IC693CHS39 family includes both 5-slot and 10-slot CPU, expansion, and remote baseplates to accommodate different system sizes.
Q3. Can I transfer my existing PLC modules to a replacement baseplate?
In most cases, yes. If the replacement is the correct model and rack type, the existing CPU, power supply, and I/O modules can typically be moved without modifying the application program. A complete system checkout is still recommended after installation.
Q4. Which modules cannot be installed in every baseplate?
Certain intelligent option modules have installation restrictions and must be mounted in CPU baseplates rather than expansion baseplates. Always verify the hardware manual before installation.
Q5. Are New Surplus baseplates unused?
Yes. New Surplus units are unused OEM inventory that has not been installed in a production system. Cosmetic packaging may vary depending on storage conditions.
Q6. Is a warranty available?
Warranty coverage depends on whether the unit is supplied as New Surplus or Refurbished. Most suppliers provide functional testing documentation and warranty terms upon request.
