Product Introduction & Engineering Value
Intermittent PLC communication faults do not always originate from the CPU or I/O modules. Worn backplane connectors, damaged slot contacts, or failed expansion interfaces are common causes of unpredictable system behavior in long-running installations.
The GE IC693CHS391EG is a 10-slot CPU baseplate designed for the Series 90-30 PLC platform. It serves as the central hardware foundation for the controller by supporting the CPU, distributing backplane power, and providing communication paths between local and expansion racks. Its modular design simplifies maintenance while allowing future I/O expansion without redesigning the entire control cabinet.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (Emerson) |
| Model | IC693CHS391EG |
| Series | Series 90-30 |
| Product Type | Modular CPU Baseplate |
| Slot Capacity | 10 slots |
| Power Supply Position | Dedicated left-side slot |
| CPU Position | Slot 1 |
| Remaining Slots | Up to 9 I/O or specialty modules |
| Expansion Connector | 25-pin female connector |
| Backplane Supply | 5 VDC |
| Backplane Current Consumption | Approximately 420 mA |
| Mounting Method | Panel mounting |
| Expansion Capability | Supports additional expansion or remote baseplates depending on CPU configuration |
Field Application & The “Trench” Experience
A wastewater treatment facility experienced random I/O communication losses that appeared only during heavy vibration from nearby pump motors. The maintenance team replaced two input modules and even installed a spare CPU, yet the problem continued. A detailed inspection revealed worn contacts inside the existing baseplate where repeated module replacements had weakened the backplane connection.
After installing an IC693CHS391EG, all communication errors disappeared immediately. No PLC logic changes were required, and the existing CPU and I/O modules were transferred directly to the replacement baseplate.
Typical application scenarios include:
- Biological wastewater treatment process control
- Cement kiln material handling systems
- Steam turbine auxiliary equipment monitoring

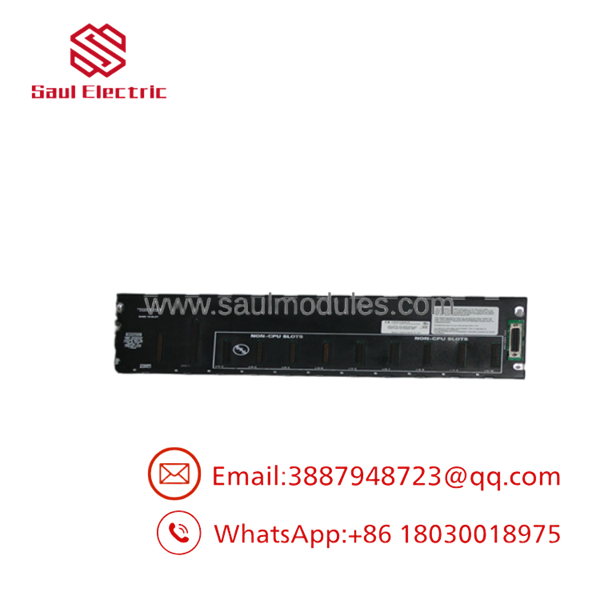

IC693CHS391EG

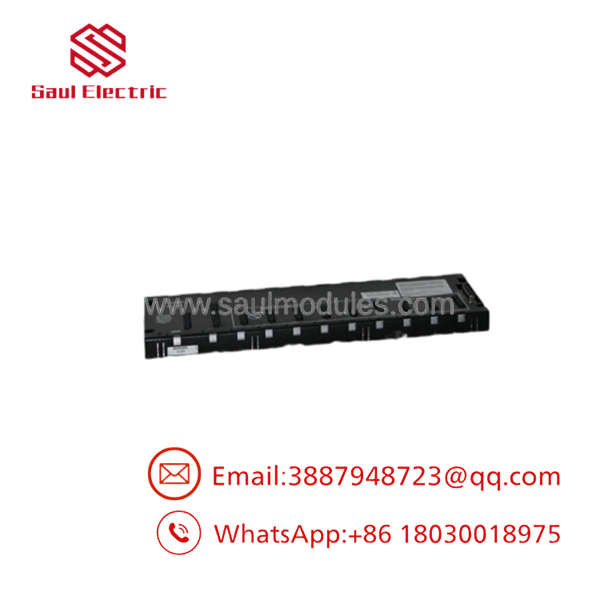

IC693CHS391EG
Transparency SOP: QA & Testing
Every New Surplus and Refurbished baseplate undergoes documented inspection before shipment.
- Verify model number, revision, and identification labels.
- Inspect every slot connector for bent contacts, oxidation, and mechanical wear.
- Install a compatible Series 90-30 power supply and CPU to verify backplane communication.
- Test the expansion connector using a compatible expansion baseplate.
- Confirm mechanical retention of installed modules.
- Package using ESD-safe materials with protective cushioning for industrial transportation.
The Veteran’s Tech Trap Guide
⚠️ CPU Slot Placement Matters
The CPU must be installed in its designated slot. Installing it in an I/O position prevents the PLC from initializing correctly.
⚠️ Inspect the 25-Pin Expansion Connector
Communication faults between local and expansion racks are often caused by damaged expansion connectors or improperly secured cables—not defective CPUs.
PRO TIP: If multiple unrelated I/O modules report faults simultaneously, inspect the baseplate before replacing individual modules. A damaged backplane can create symptoms that resemble several hardware failures at once.
⚠️ Avoid Excessive Module Removal
Repeated insertion and removal of heavy communication modules can gradually wear the backplane connectors. During preventive maintenance, inspect the slot contacts for looseness or discoloration.
Dynamic FAQ
Q1. What is the purpose of the IC693CHS391EG?
It serves as the primary 10-slot CPU baseplate for the Series 90-30 PLC, providing mechanical support, backplane communication, and power distribution for the controller and installed modules.
Q2. How many modules can this baseplate accommodate?
The baseplate includes 10 module slots, with one dedicated CPU position and up to nine additional slots for I/O or specialty modules. A separate position is provided for the power supply.
Q3. Can I reuse my existing CPU and I/O modules?
Yes. If the replacement baseplate matches the original hardware configuration, the existing CPU, power supply, and compatible I/O modules can normally be transferred without modifying the PLC application. A complete operational checkout is recommended after installation.
Q4. Does the IC693CHS391EG support expansion racks?
Yes. It includes a 25-pin expansion connector that allows connection to compatible Series 90-30 expansion or remote baseplates, subject to the capabilities of the installed CPU.
Q5. What does the “EG” suffix indicate?
The suffix typically identifies a specific hardware revision or regional catalog designation. Before ordering, verify the complete part number and hardware revision to ensure compatibility with your existing Series 90-30 system.
Q6. Are New Surplus units genuinely unused?
Yes. New Surplus inventory consists of unused OEM stock that has not been installed in production equipment. Each unit is inspected for physical condition and connector integrity before shipment.
