Description
Product Introduction & Engineering Value
Unexpected output shorts are one of the quickest ways to shut down a production line. Replacing blown fuses and tracing damaged output circuits can consume valuable maintenance time, particularly in high-duty-cycle applications.
The GE IC693MDL742 addresses this challenge by combining 16 positive logic DC outputs with Electronic Short Circuit Protection (ESCP). Instead of relying on conventional output fuses, the module electronically protects each bank of eight outputs, helping minimize hardware damage while maintaining compatibility with the proven Series 90-30 PLC platform.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (Emerson) |
| Model | IC693MDL742 |
| PLC Family | Series 90-30 |
| Module Type | Positive Logic ESCP DC Output Module |
| Number of Outputs | 16 |
| Output Configuration | Two groups of 8 outputs |
| Rated Voltage | 12/24 VDC |
| Operating Voltage Range | 12–24 VDC (+20%, −15%) |
| Output Logic | Positive Logic (Sourcing) |
| Maximum Output Current | 1 A per output |
| Maximum Group Current | 4 A @ 50°C, 3 A @ 60°C |
| Inrush Current | 5.2 A for 10 ms |
| Output Voltage Drop | 1.2 V maximum |
| Off-State Leakage | 1 mA maximum |
| Response Time | 2 ms ON / 2 ms OFF |
| Isolation | 1500 VAC field-to-logic; 500 VAC between output groups |
| Backplane Current | 130 mA @ 5 VDC (all outputs ON) |
| Status Indicators | Green LED for each output; ESCP fault indication per output group |
| Installation | Any I/O slot in a Series 90-30 5-slot or 10-slot baseplate |
Field Application & The “Trench” Experience
An automotive welding cell repeatedly experienced production interruptions after a damaged solenoid cable created intermittent short circuits. Each incident required technicians to replace blown output fuses before troubleshooting could even begin.
During a scheduled shutdown, the maintenance team installed an IC693MDL742. When another wiring fault occurred several months later, the module’s Electronic Short Circuit Protection isolated the affected output group instead of damaging the output circuitry. After repairing the field wiring and restoring the user supply, production resumed without replacing the PLC module.
Typical applications include:
- Robotic welding fixture solenoid valve control
- Automated packaging machine pneumatic actuators
- Conveyor motor starter and stack-light control circuits

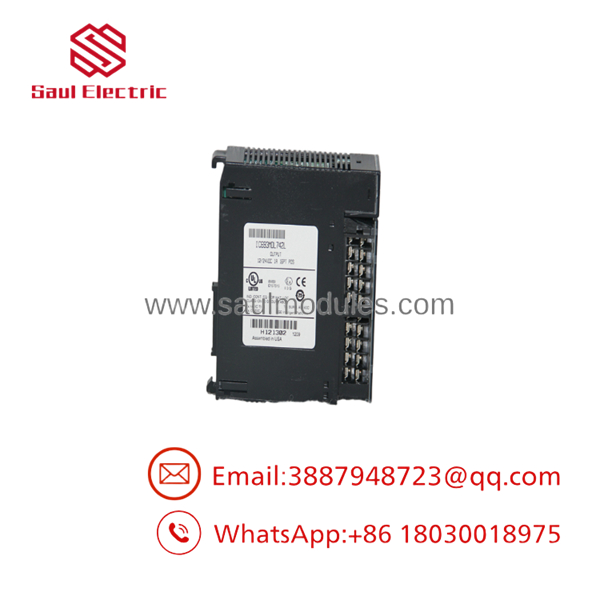

IC693MDL742

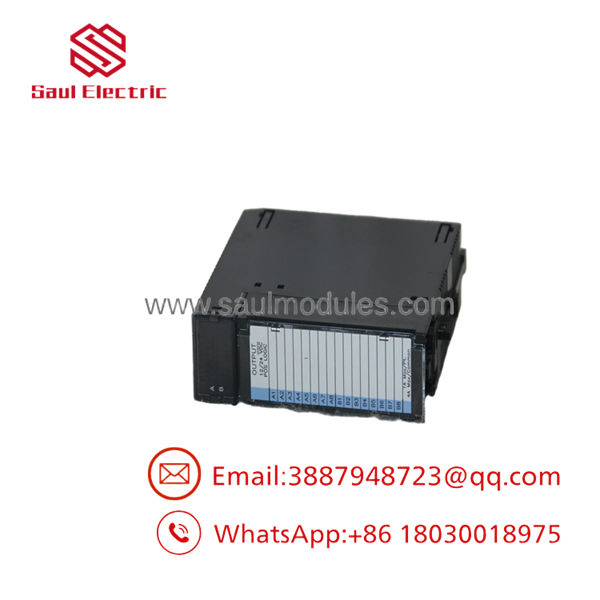

IC693MDL742

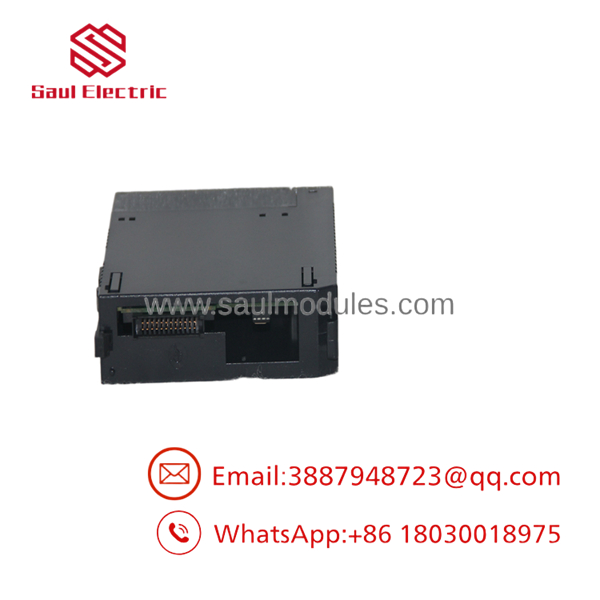

IC693MDL742
Transparency SOP: QA & Testing
Every IC693MDL742 module completes a documented inspection and operational verification procedure before shipment.
- Verify model number, hardware revision, and connector condition.
- Inspect PCB assemblies, backplane contacts, and terminal interfaces.
- Install the module in a Series 90-30 test rack.
- Apply rated DC loads across all sixteen output channels.
- Verify LED operation, output voltage, and current capability.
- Simulate output short-circuit conditions to confirm proper ESCP operation.
- Perform multiple power-cycle tests and final communication verification before ESD-safe packaging.
New Surplus modules are inspected for unused OEM condition. Refurbished modules receive additional load testing and extended functional verification.
The Veteran’s Tech Trap Guide
⚠️ ESCP Is Not the Same as a Fuse
The Electronic Short Circuit Protection automatically protects each bank of eight outputs during a short circuit. To restore operation after a fault, you must remove and reapply the external 12/24 VDC field supply. Simply resetting the PLC will not clear the protection state.
⚠️ Mind the Group Current Rating
Although each channel supports 1 amp, the entire output group is limited to 4 amps at 50°C (or 3 amps at 60°C). Several heavily loaded outputs operating simultaneously can exceed the group rating even when individual outputs remain within specification.
PRO TIP: If an ESCP fault repeatedly occurs on the same group, investigate field wiring first. Damaged solenoid coils, crushed cables, or moisture inside junction boxes are far more common causes than module failure.
⚠️ This Is a Sourcing Output Module
The IC693MDL742 provides positive logic (sourcing) outputs. Verify that the connected field devices are wired for sourcing operation before replacing an existing output card.
Dynamic FAQ
Q1. What makes the IC693MDL742 different from the IC693MDL740?
The includes Electronic Short Circuit Protection (ESCP) and supports 1 A per output, making it suitable for applications requiring additional output protection against short-circuit conditions.
Q2. How many field devices can the module control?
The module provides 16 independently controlled DC outputs, organized into two groups of eight, with separate protection circuits for each group.
Q3. What happens if an output is short-circuited?
The ESCP circuit disables the affected output group to protect the module. After correcting the wiring fault, the 12/24 VDC field supply must be cycled to reset the protection circuit.
Q4. Which field devices are typically connected?
Common loads include solenoid valves, motor starters, relay coils, indicator lamps, alarm beacons, and pneumatic actuators operating on 12 or 24 VDC.
Q5. Can the be installed in any Series 90-30 rack?
Yes. The module is compatible with Series 90-30 5-slot and 10-slot baseplates and can be installed in any standard I/O slot with sufficient backplane power available.
Q6. How are New Surplus and Refurbished modules tested?
Each module undergoes identification verification, connector inspection, full-channel output testing, ESCP validation, LED diagnostics, communication checks, and repeated power-cycle testing. Refurbished units additionally complete extended load and burn-in testing before shipment.
