GE IC693PTM101 Series 90-30 8-Channel RTD Temperature Input Module

Description

Product Introduction

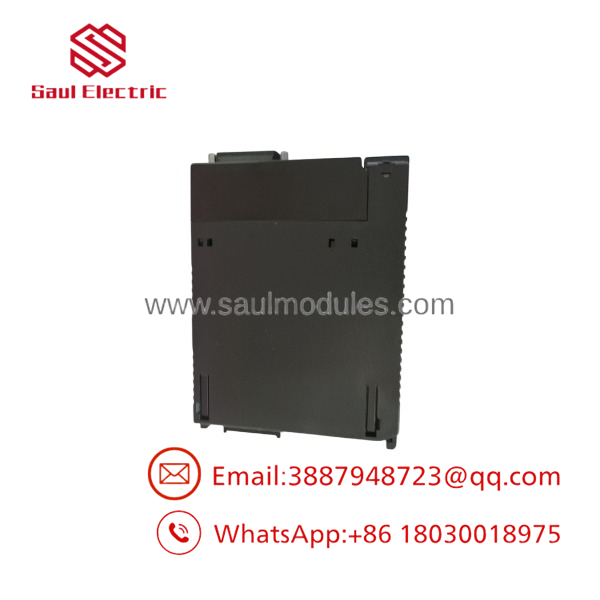

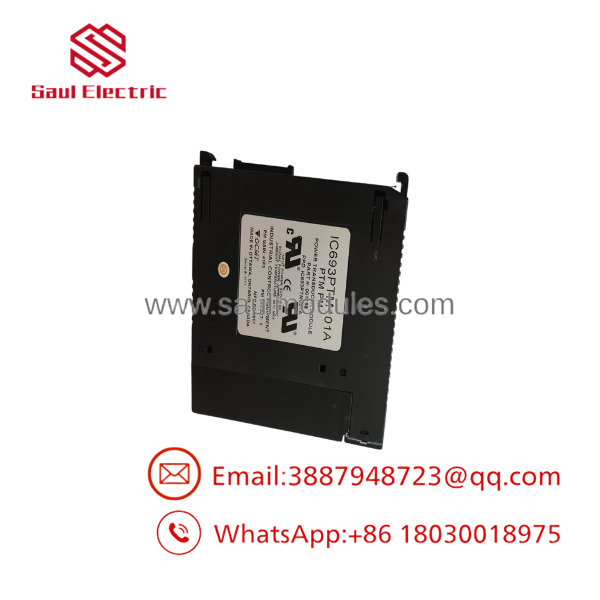

The GE Fanuc IC693PTM101 is an 8-channel RTD (Resistance Temperature Detector) Temperature Control Module engineered for GE Series 90-30 PLC systems. Occupying a single option slot on any CPU, expansion, or remote baseplate, it translates low-level resistance changes from temperature sensors into digitized temperature or resistance values stored directly in CPU register memory (%AI).

Designed for precise thermal monitoring, the IC693PTM101 supports a broad variety of industrial RTD types (including 100-ohm Platinum, Nickel, Copper, and direct Ohm resistance ranges). Each channel can be individually configured for 2-wire, 3-wire, or 4-wire sensor lead-wire compensation. Onboard digital filtering, wire-break/open-sensor detection, and high common-mode noise rejection safeguard signal integrity in harsh electrical environments.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

At 1:15 AM on a rubber extrusion line, the temperature controller on zone 3 reported a high-temperature runaway fault, forcing an emergency shutdown. The thermal sensor itself was fine, but a damaged analog-to-digital converter channel on the aging RTD card was reading maximum resistance, falsely signaling an extreme thermal condition to the CPU. With raw compound cooling and hardening inside the barrel, every minute of downtime compounded potential equipment damage and cleanup costs.

Application Scenarios

• Plastics & Extrusion Lines: Monitors multi-zone barrel, die, and heater block temperatures across extrusion and injection molding machinery.
• Industrial Kilns & Ovens: Tracks multi-point temperature profiles in heat-treating furnaces, drying ovens, and curing chambers.
• Motor & Bearing Protection: Measures winding and bearing temperatures (Pt100/Cu10) on large medium-voltage motors and compressors.
• Food & Beverage Processing: Manages thermal parameters in pasteurization vessels, cook kettles, and cold storage facilities.

Field Case Study

A chemical processing plant in Texas suffered an analog card failure during a batch reaction cycle, losing 6 critical reactor shell temperature inputs. We dispatched a bench-tested, pre-cleared surplus IC693PTM101 module via emergency courier. The technician killed rack power, swung the wired 20-pin terminal block onto the new card, slid the module into option slot 4, and powered up the rack. The module automatically pulled configuration parameters from the Series 90-30 CPU and restored live 8-channel RTD readings within 12 minutes of arrival.

IC693PTM101

IC693PTM101

Transparency SOP: Quality Assurance & Testing

We test every IC693PTM101 unit under precision temperature signal simulation on live GE test racks before adding it to our ready-to-ship inventory.

1. Inbound Visual Verification: Inspection for casing cracks, bent backplane pins, terminal latch integrity, and OEM revision authenticity.
2. Backplane Power-On Check: Slotted into an active GE Series 90-30 rack (IC693CHS392 driven by an IC693PWR330 supply) to verify module POST and %AI memory mapping.
3. 8-Channel Precision Calibration Test: Connected a multi-channel RTD decade box simulator across all 8 input channels; verified resistance and temperature conversions across Pt100 curve points (-50°C, 0°C, +100°C, +300°C) within ±0.1% accuracy tolerance.
4. Wire-Break Diagnostic Test: Disconnected test leads on individual channels to confirm immediate open-sensor fault flags in CPU memory and status LEDs.
5. ESD Sealing & Final QC: Cleaned, terminals verified, and sealed inside heavy-duty ESD shielding with custom impact-resistant protective packaging.

The Veteran’s Tech Trap Guide

• ⚠️ Utilize the Removable Terminal Block: You do not need to unscrew RTD field wiring when replacing a failed IC693PTM101! The module features a 20-terminal removable connector block. Simply loosen the top/bottom retaining screws, pop off the wired terminal block, swap the card, and snap the block onto the replacement unit.
• ❗ Never Hot-Swap on the Baseplate: The GE Series 90-30 backplane is not hot-swappable! Inserting or pulling the while the rack power supply is energized can arc backplane pins, ruin internal A/D converters, or trigger a CPU fault. Always kill main rack power first.
• ⚠️ Match Wiring Jumpering to RTD Type: Standard 3-wire RTD installations require precise jumper configurations on the 20-terminal block to balance lead-wire resistance properly. Failing to install required terminal jumpers for 3-wire modes will introduce significant temperature offsets.
• ❗ Use Shielded Twisted-Pair Cable: RTD signals are millivolt-level resistance measurements. Always use high-quality, individually shielded, twisted-pair cable (e.g., Belden 8771/8772) and ground the shield at the PLC chassis ground terminal only to prevent ground loops and erratic temperature drift.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the GE Fanuc hot-swappable?

A: No. You must turn off main power to the Series 90-30 baseplate before removing or installing the module to prevent physical or logic circuit damage.

Q: What is the main difference between RTD modules () and Thermocouple modules (e.g., IC693MDR390)?

A: The measures resistance changes from RTD sensors (Pt100, Ni120, Cu10), whereas thermocouple modules measure millivolt potential differences generated by dissimilar metals (Type J, K, T, etc.).

Q: Do I need to re-program the PLC when replacing an card?

A: No. As long as the replacement unit matches the part number and option slot location, the Series 90-30 CPU will automatically push the existing hardware configuration (RTD type, reporting units, filter rates) to the new card upon power-up.

Q: Can I mix different RTD types on different channels of the same card?

A: Yes! You can configure individual channels independently for different RTD types (e.g., Pt100 on channels 1–4, Cu10 on channels 5–8) in your hardware configuration settings.

Q: What warranty coverage comes with this surplus temperature card?

A: Every module comes backed by a full 12-month replacement warranty. All units are authentic GE Fanuc surplus equipment, thoroughly inspected, cleaned, and bench-tested under precision multi-channel temperature simulation prior to shipment.
