Description
Product Introduction & Engineering Value
Many legacy production lines continue to depend on simple, reliable operator terminals rather than full graphical HMIs. The GE IC752DFT000-AA was designed for these environments, providing operators with a clear text display and an integrated keypad for local control and diagnostics.
As part of the DataPanel 150 family, this terminal offers dependable operator interaction without the complexity of a touchscreen interface. It remains a practical replacement for existing installations where maintaining original machine functionality is more economical than redesigning the control system.
Technical Specifications
Manufacturer: GE Fanuc
Model: IC752DFT000-AA
Product Family: DataPanel 150
Device Type: Operator Interface Terminal (HMI)
Display Type: Monochrome LCD
Display Resolution: 240 × 64 Pixels
Backlight: LED
Operator Input: Integrated Keypad
Touchscreen: Not Supported
PC/104 Expansion: Not Supported
Supported Text: Multiple Character Sizes
Compliance: UL, cUL, CE, UL1604 Certified
Application: Local Operator Interface for Industrial Control Systems
Field Application & The “Trench” Experience
During a scheduled maintenance shutdown at a food processing facility, operators reported that the existing DataPanel display had become increasingly difficult to read due to backlight degradation. The PLC continued operating correctly, but recipe selection and alarm acknowledgement became difficult during production.
Rather than replacing the entire control system, maintenance personnel installed an IC752DFT000-AA. Because the machine logic remained unchanged, commissioning consisted primarily of restoring the HMI configuration and verifying keypad operation. Production resumed before the end of the maintenance window.
Typical applications include:
- Packaging machine operator stations
- Conveyor control and fault acknowledgment
- Water pumping station local monitoring
- Material handling equipment status display
Transparency SOP: QA & Testing
Every New Surplus and refurbished IC752DFT000-AA is inspected and tested before shipment.
- ✓ Exterior housing inspected for cracks, scratches, and connector damage
- ✓ LCD display verified for brightness, dead pixels, and contrast
- ✓ LED backlight operation confirmed
- ✓ Every keypad button tested for proper response
- ✓ Power-on self-test completed
- ✓ Communication interface verified where applicable
- ✓ Extended operational burn-in performed
- ✓ Final ESD-safe packaging and serial number documentation completed
IC752DFT000-AA

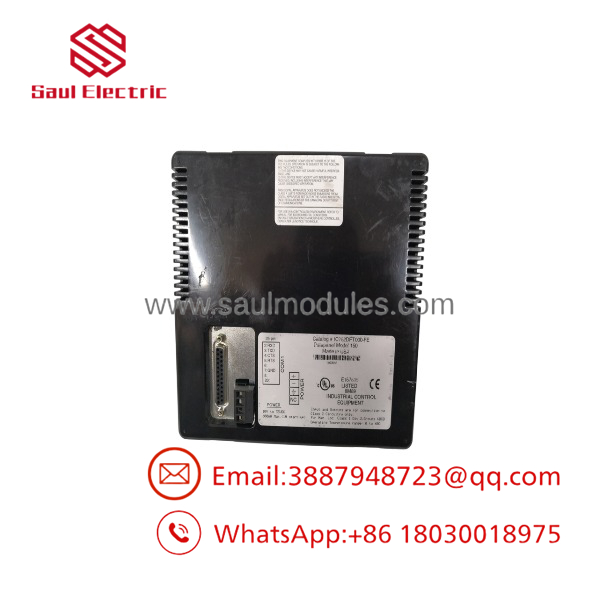

IC752DFT000-AA
The Veteran’s Tech Trap Guide
⚠️ Confirm the Exact Hardware Revision
The “-AA” suffix identifies a specific hardware revision. Verify the complete part number before ordering to avoid compatibility issues with existing machine configurations.
⚠️ Don’t Assume the Display Is Faulty
A dim screen is often caused by an aging LED backlight rather than a failed LCD panel. Inspect both before replacing the entire terminal.
PRO TIP:
Always back up the application whenever possible before replacing an HMI. Many legacy systems use software that is no longer readily available, making configuration recovery difficult if no backup exists.
⚠️ Inspect the Membrane Keypad
High-use keys such as ENTER, ESC, and navigation buttons often experience mechanical wear before the electronics fail. Verify keypad functionality during troubleshooting.
Dynamic FAQ
Q1. What is the primary function of the IC752DFT000-AA?
The IC752DFT000-AA is a DataPanel 150 operator interface terminal that allows operators to monitor machine status, acknowledge alarms, and enter operating data through an integrated keypad.
Q2. Does this model include a touchscreen?
No. The uses an integrated membrane keypad and does not support touchscreen operation.
Q3. What display does the terminal use?
It features a 240 × 64 monochrome LCD with an LED backlight, supporting multiple text sizes for operator messages and machine information.
Q4. Is New Surplus inventory genuine?
Yes. New Surplus units are genuine OEM products that have never been installed in production equipment. Each unit undergoes identification verification and a complete physical inspection before shipment.
Q5. How are refurbished terminals tested?
Each refurbished terminal is tested for LCD quality, backlight performance, keypad response, power-up operation, communication functionality (where applicable), and extended operational stability before release.
Q6. Is the suitable for upgrading to modern touchscreen HMIs?
While it can often be replaced as part of a modernization project, the was designed as a text-based operator interface. Migrating to a graphical touchscreen HMI typically requires application redevelopment and communication verification rather than a direct hardware replacement.
