Description
Product Introduction
The GE IS200BICLH1A is a Bridge Interface Board (BICL) developed for General Electric Innovation Series low-voltage/medium-voltage AC and DC drives, as well as select Mark VI turbine control systems. Positioned directly between the rack-mounted main control processor (such as the VME control card cage) and the power conversion bridge, this board handles the rapid signal translation required for modern IGBT power switching.
The BICL module isolated-gate drive signals, translates switching commands into high-frequency firing pulses, and feeds real-time phase currents, DC link voltages, and thermal states back to the master controller. By isolating sensitive digital processing cards from high-power inverter noise and ground loops, the IS200BICLH1A ensures high-precision torque and speed regulation across heavy industrial drive applications.
Key Technical Specifications
| Parameter | Specification / Value |
| Manufacturer | General Electric (GE) |
| System Architecture | GE Innovation Series Drives & Speedtronic Mark VI Control |
| Board Functional Acronym | BICL (Bridge Interface / IGBT Control Logic Board) |
| Primary Function | Transmitting IGBT firing commands, monitoring bridge feedback, and isolation management |
| Communication Channels | High-speed differential ribbon cables and optional fiber-optic optical transceivers |
| Sensed Parameters | Phase AC current feedback, DC bus rail voltage levels, and heatsink thermal status |
| Protection Circuitry | Hardware-level desaturation fault detection and fast overcurrent trip routing |
| Form Factor | European-style card-cage module with dual rear backplane connectors |
| Operating Temperature | -30°C to +65°C Industrial Extended Range |
Application Scenarios & The “Trench” Experience
The Trench Story
It’s 11:30 PM at a high-speed paper mill. Main Drive Inverter #2 trips offline on a persistent “IGBT Desaturation / Bridge Interface Fault” during an automated speed ramp. Field technicians swap out the IGBT phase power module, but the drive continues to fault instantly upon reset. Diagnostic trace checks show that a gate driver breakdown on the original BICL board was causing floating gate voltages, preventing proper switching. Installing a pre-tested GE IS200BICLH1A replacement card and matching the physical board configuration jumpers clears the fault, restoring stable motor torque control and bringing the production line back online.
Industrial Applications
- Industrial VFD Motor Drives: Interfacing control processing racks with power phase bridges in metal rolling mills, paper machinery, and mining conveyors.
- Mark VI Turbine Control Systems: Managing starter motor drives and auxiliary generator bridge switching on GE heavy-duty gas turbines.
- Wind & Solar Power Inverters: Routing pulse-width modulation (PWM) signals in utility-scale renewable power conversion skids.
Transparency SOP: Quality Assurance & Testing
Every legacy IS200BICLH1A module undergoes a multi-stage reconditioning and dynamic signal validation protocol before dispatch:
- Inbound Physical Inspection: Detailed optical audit under magnification for thermal discoloration, gate driver resistor stress, damaged connectors, and solder fatigue.
- Ultrasonic ESD Cleaning: Deep solvent wash to remove airborne carbon dust, oil mist, and chemical residues accumulated over years of drive cabinet exposure.
- High-Speed Signal & Gate Drive Audit: Testing all PWM signal paths with an oscilloscope to confirm sharp square-wave rise times and zero pulse distortion.
- Desaturation & Overcurrent Trip Test: Injecting simulated fault conditions across sensing channels to verify hardware trip execution within microsecond tolerances.
- Live System Rack Execution: Installing the card into an active test enclosure to verify backplane communications, bus voltage sensing accuracy, and status LED actuation under full electrical load.
- Jumper Audit & ESD Packaging: Documenting all physical BERG jumper settings before vacuum-sealing the board in static-shielding packaging.

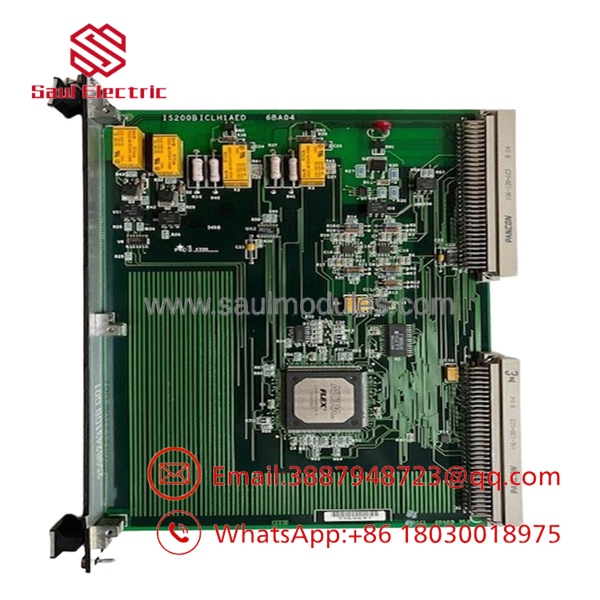

IS200BICLH1A
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ 1. Hardware Configuration Jumpers
The IS200BICLH1A utilizes physical BERG jumper blocks to configure current transformer (CT) scaling ratios, ground reference isolation, and frame voltage feedback thresholds. Installing a replacement board without matching the jumper layout from your original card can result in scaled feedback errors or immediate nuisance trips.
Fix: Photograph every jumper block on your failed card before removal, and duplicate every setting position line-for-line on the replacement board.
❗ 2. Connector Pin Alignment & Fiber Cleanliness
When inserting the board into its rack slot, improper seating can bend backplane pin contacts or strain ribbon cable connectors. If equipped with fiber-optic links, contamination on the optical transceiver faces will cause data packet drops.
Fix: Align the card carefully with its guide rails before applying firm pressure, and inspect optical connections with lint-free swabs prior to insertion.
⚠️ 3. Revision Suffix Parity (H1A)
The suffix code H1A denotes specific artwork layouts, component noise filtering, and elevated gate drive power capability compared to earlier or alternate sub-revisions.
Fix: Cross-reference the complete part number stamped on the PCB margin to ensure direct drop-in electrical and physical compatibility.
Frequently Asked Questions (FAQ)
Q: Can I hot-swap the IS200BICLH1A board while the drive is powered on?
A: No. Pulling or inserting a bridge interface board live can disrupt active IGBT gate control signals, causing shoot-through currents, short-circuits across the power bridge, or severe equipment damage. Always isolate cabinet power before servicing.
Q: What is the most common failure mode on this board?
A: Thermal breakdown of optocouplers and gate driver transistors caused by high ambient cabinet temperatures or primary IGBT failures that reflect power surges back onto the interface board.
Q: Does this card require software flashing or laptop downloading after installation?
A: No. The IS200BICLH1A is a hardware-level bridge interface and gate driver routing board. The primary control algorithm resides on the main system processor; this card operates based on hardware logic and physical jumper settings.
Q: How does the IS200 Series differ from older DS3800 or DS200 GE parts?
A: The IS200 series represents the IS2000 / Innovation and Mark VI platform generation. It features surface-mount components, higher processing density, advanced noise immunity, and European DIN/rack connector formats, contrasting with older full-frame card-edge boards.
Q: What warranty is supplied with surplus and refurbished stock?
A: Refurbished and new-surplus IS200BICLH1A boards typically carry a standard 12-month replacement warranty covering component failure under normal operating conditions.
