Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE (General Electric) |
| Model | IS200DSPXH1DBC |
| Product Type | Digital Signal Processor Control Board |
| Series | EX2100 Excitation Control / Mark VI |
| Processor | 60 MHz Digital Signal Processor |
| RAM | 248 KB High-Speed SRAM |
| Flash Memory | 512 KB Flash BIOS |
| PCB Coating | Conformal Coating |
| Backplane Interface | P1 Connector |
| Engineering Ports | P5 DSP Emulator, P6 Engineering Monitor, P7 Vertical Connector |
| Status Indicators | Red Fault LED, Green Status LED |
| Operating Application | Generator Excitation and Turbine Control |
The IS200DSPXH1DBC is designed for GE EX2100 excitation systems and Mark VI turbine control applications. Hardware compatibility should always be verified against the installed system revision before replacement.
Product Introduction
The GE IS200DSPXH1DBC is a Digital Signal Processor (DSP) Control Board used in GE EX2100 Excitation Control and Mark VI turbine control systems. It performs high-speed digital calculations required for generator excitation regulation, bridge control, monitoring, and system diagnostics.
Built around a 60 MHz DSP with dedicated SRAM and Flash memory, the board executes real-time control algorithms while communicating with the system backplane and engineering interfaces. It is commonly installed in power generation, gas turbines, steam turbines, and industrial drive applications requiring accurate excitation control.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No Status LED after power-up | Backplane power missing | ✅ High | Verify rack power and measure supply voltage at the backplane | Check power supply before replacing the board |
| Red Fault LED remains on | DSP hardware or firmware fault | ✅ High | Review EX2100 diagnostics and fault log | Replace board if hardware failure is confirmed |
| Excitation system fails to regulate | DSP not executing control algorithm | ✅ High | Check Status/Fault LEDs and monitor processor communication | Verify firmware compatibility and board health |
| Communication timeout | Backplane connector oxidation or poor contact | ⚠️ Medium | Inspect P1 connector and reseat the board | Clean contacts and reinstall before replacement |
| Intermittent system trips | Cabinet overheating or unstable power | ⚠️ Medium | Measure cabinet temperature and DC supply ripple | Correct cooling or power issues first |
| Unable to connect engineering tools | Emulator or monitor port problem | ⚠️ Medium | Test P5/P6 interfaces using approved GE service tools | Verify cable and software configuration |
Field Tip: DSP boards are frequently replaced unnecessarily. Connector oxidation, unstable power supplies, cooling issues, and firmware mismatches are far more common causes of EX2100 faults than actual processor board failure. Record diagnostic logs before changing the hardware.

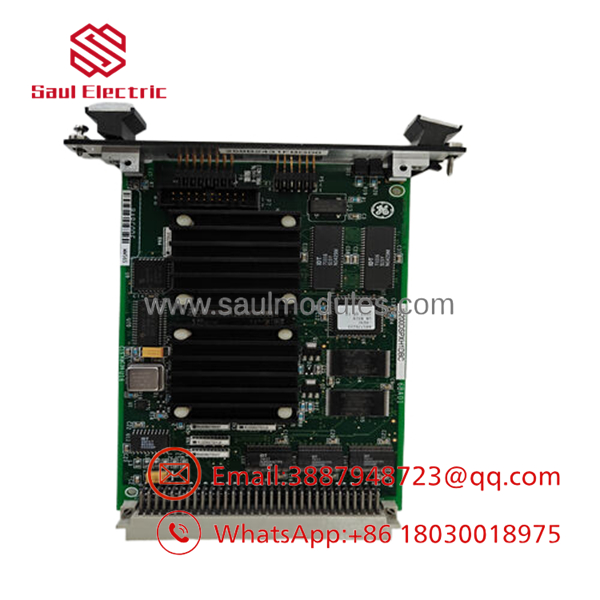

- IS200DSPXH1DBC

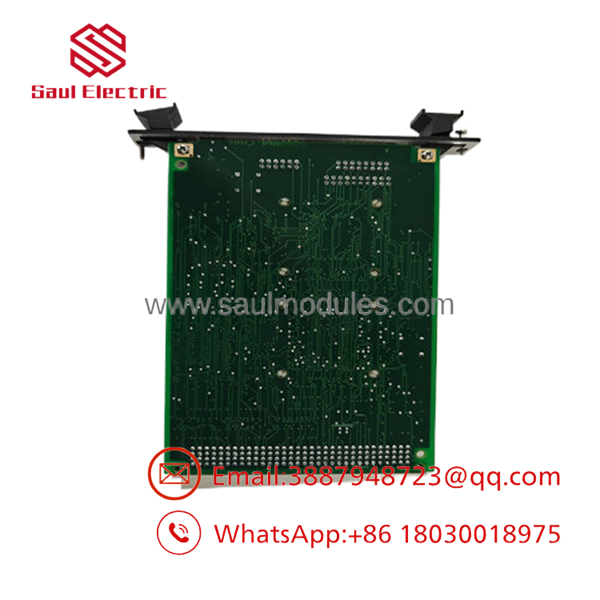

- IS200DSPXH1DBC
Frequently Asked Questions (FAQ)
Q1. What does the IS200DSPXH1DBC do?
It is the primary digital processing board for GE EX2100 excitation systems. The DSP executes real-time control algorithms, excitation regulation, bridge control, monitoring, and diagnostic functions.
Q2. Is this board compatible with every system?
Not necessarily. GE produced multiple DSPX hardware revisions. Always verify the complete part number and suffix (such as ) before ordering to ensure firmware and hardware compatibility.
Q3. Can I replace the board while the cabinet is energized?
No. This board is not intended for hot replacement. Shut down the equipment, isolate power, follow lockout/tagout procedures, and use proper ESD protection during installation.
Q4. Why is my replacement board reporting communication faults?
Firmware revision differences, connector contamination, or configuration mismatches are common causes. Before replacing the board, document the original firmware revision and inspect the backplane connectors carefully.
Q5. Is this product new or refurbished?
This listing refers to New Original (New Surplus) inventory unless otherwise specified. Each unit should undergo visual inspection, electrical verification, communication testing, and ESD-safe packaging before shipment.
Q6. What testing should be completed before shipment?
A comprehensive inspection should include serial number verification, visual inspection, backplane connector examination, power-up verification, Status/Fault LED testing, communication interface checks, and final ESD-safe packaging. Test reports and inspection photos should be available upon request.
Q7. What industries commonly use the ?
The board is widely deployed in gas turbine power plants, steam turbine installations, hydroelectric facilities, combined-cycle plants, and other industrial applications using GE excitation and Mark VI control systems.
